System Diagrams

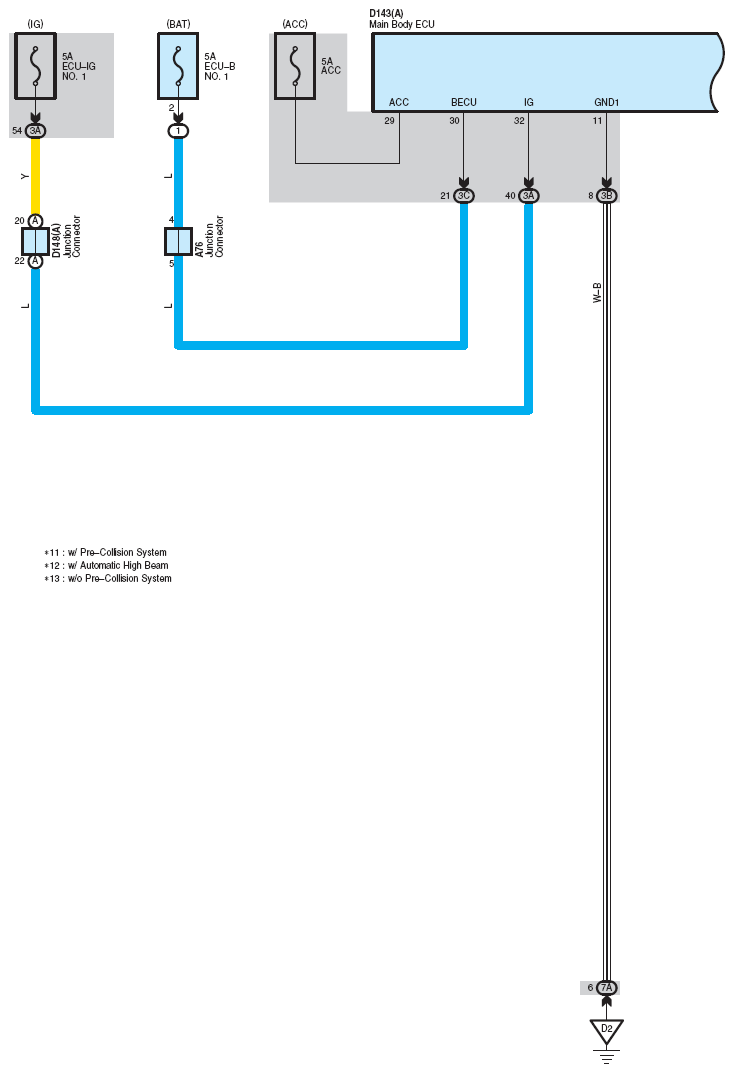

Fig 1: Headlight - Hatchback (1 Of 7)
G12220062

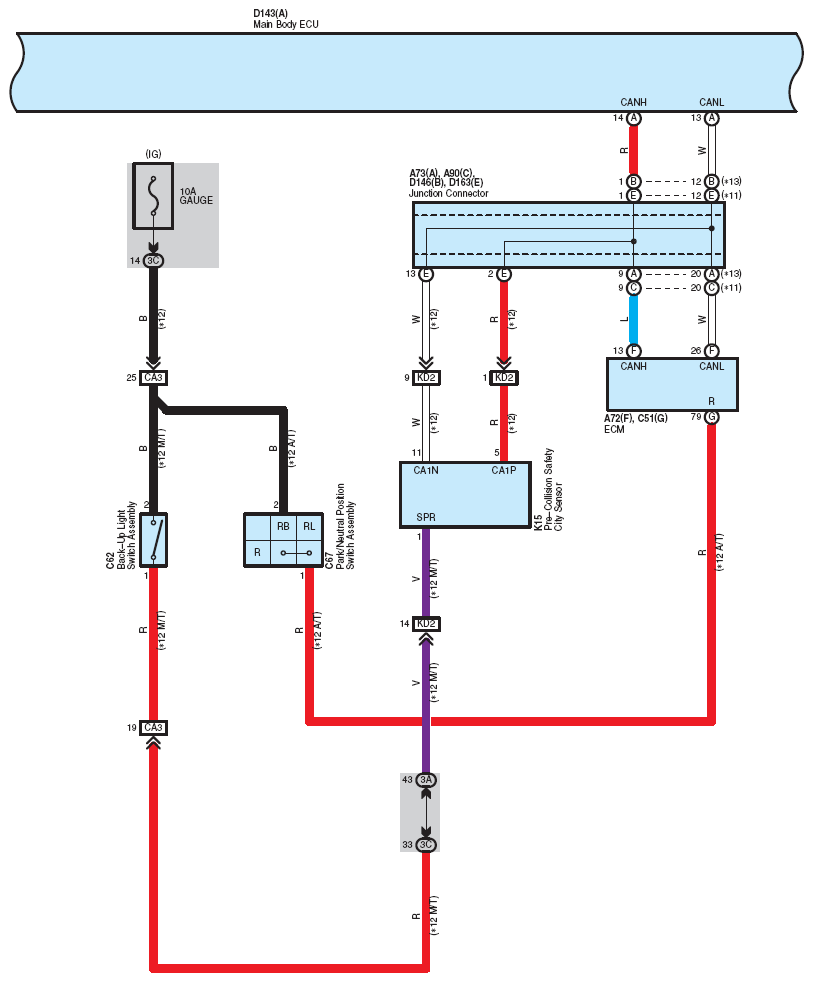

Fig 2: Headlight - Hatchback (2 Of 7)
G12220063

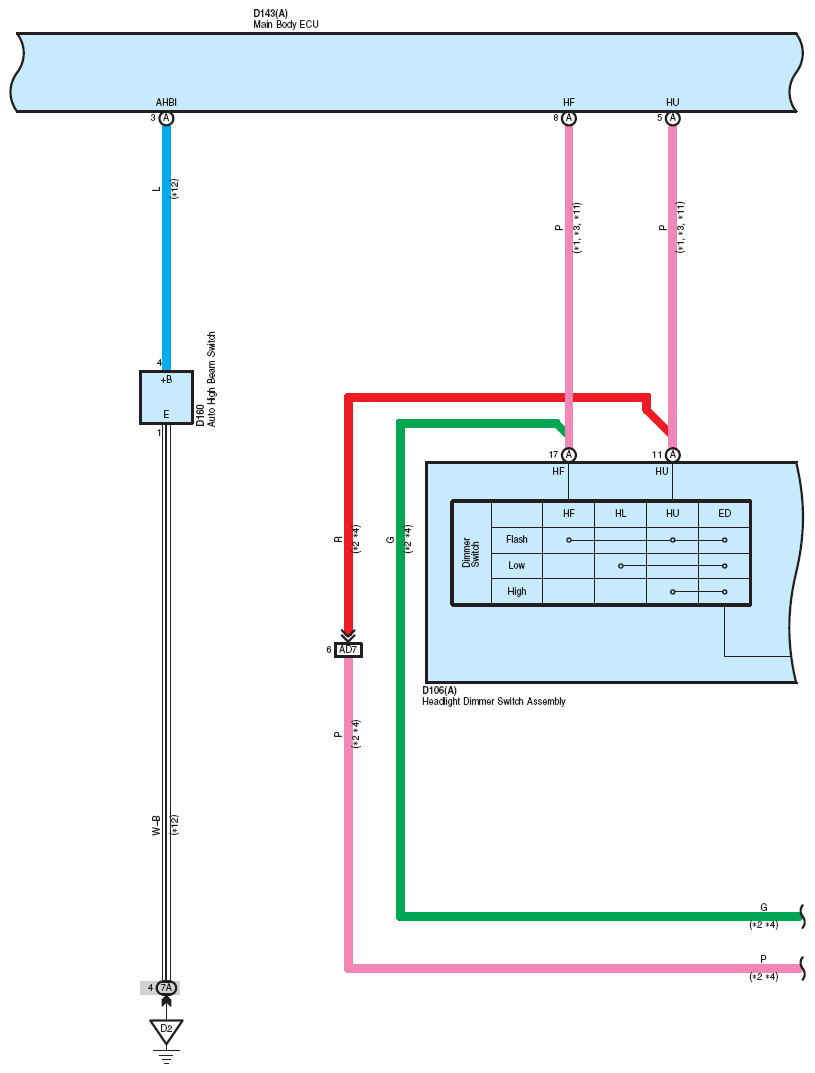

Fig 3: Headlight - Hatchback (3 Of 7)
G12220064

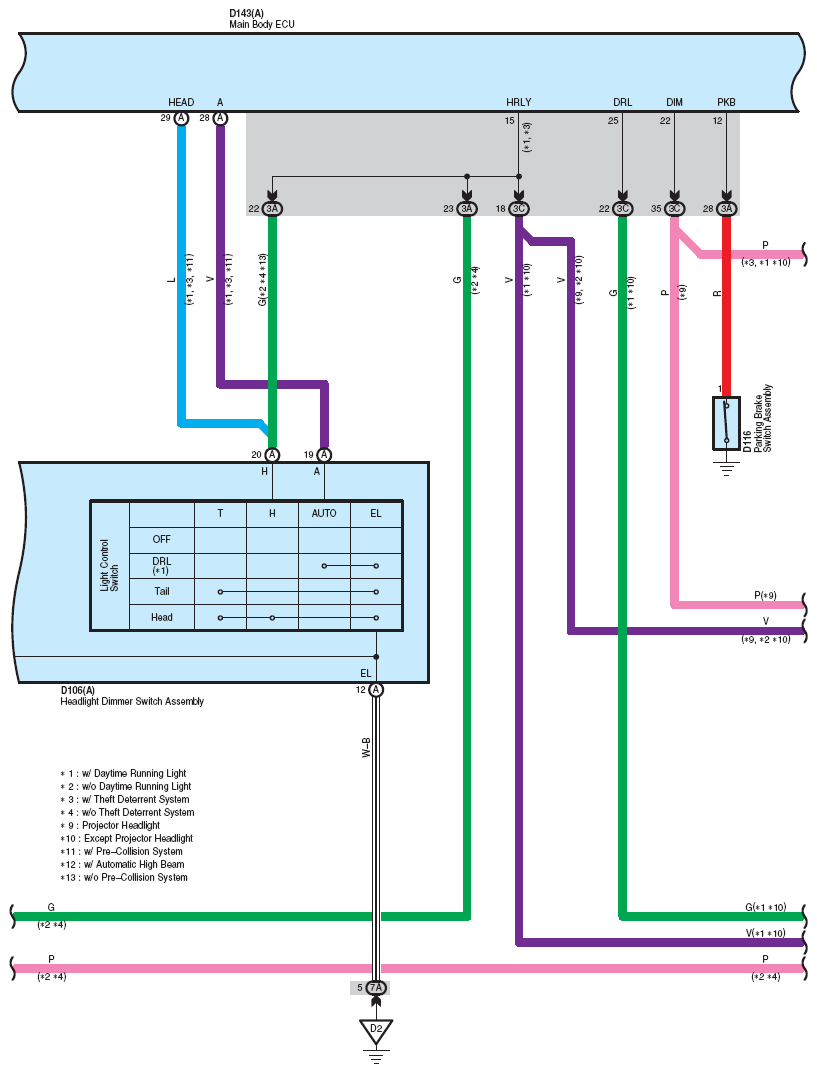

Fig 4: Headlight - Hatchback (4 Of 7)
G12220065

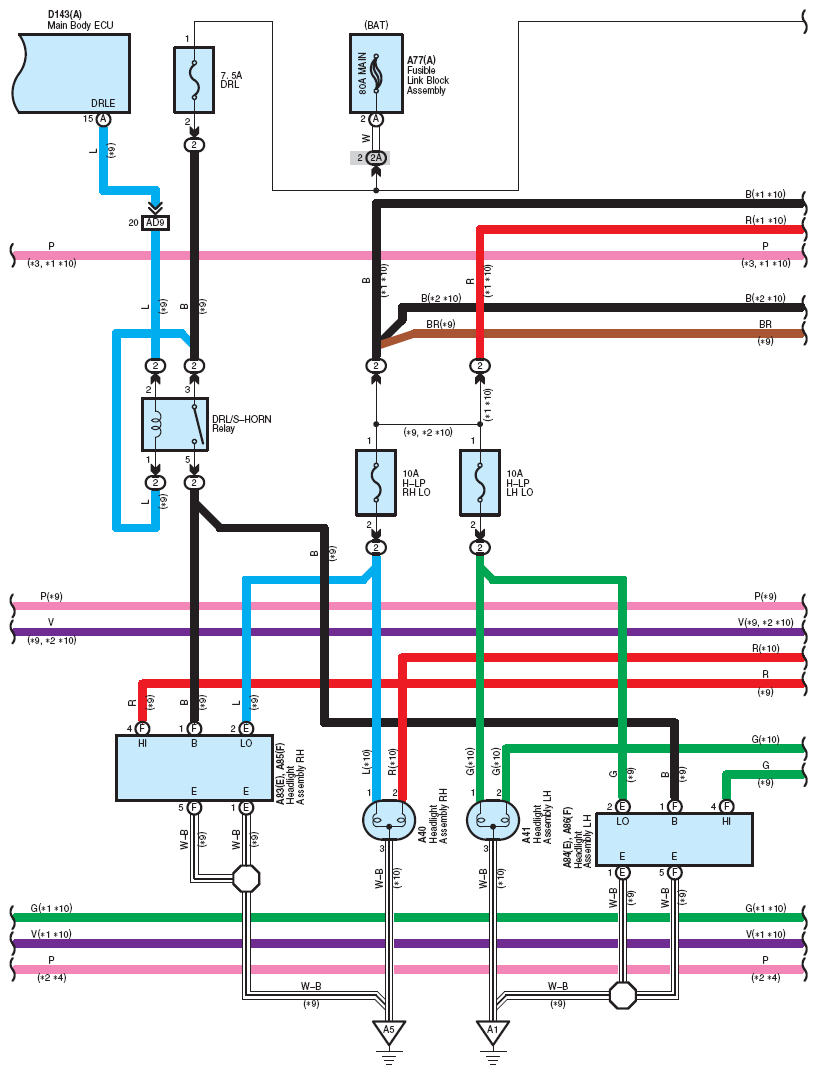

Fig 5: Headlight - Hatchback (5 Of 7)
G12220066

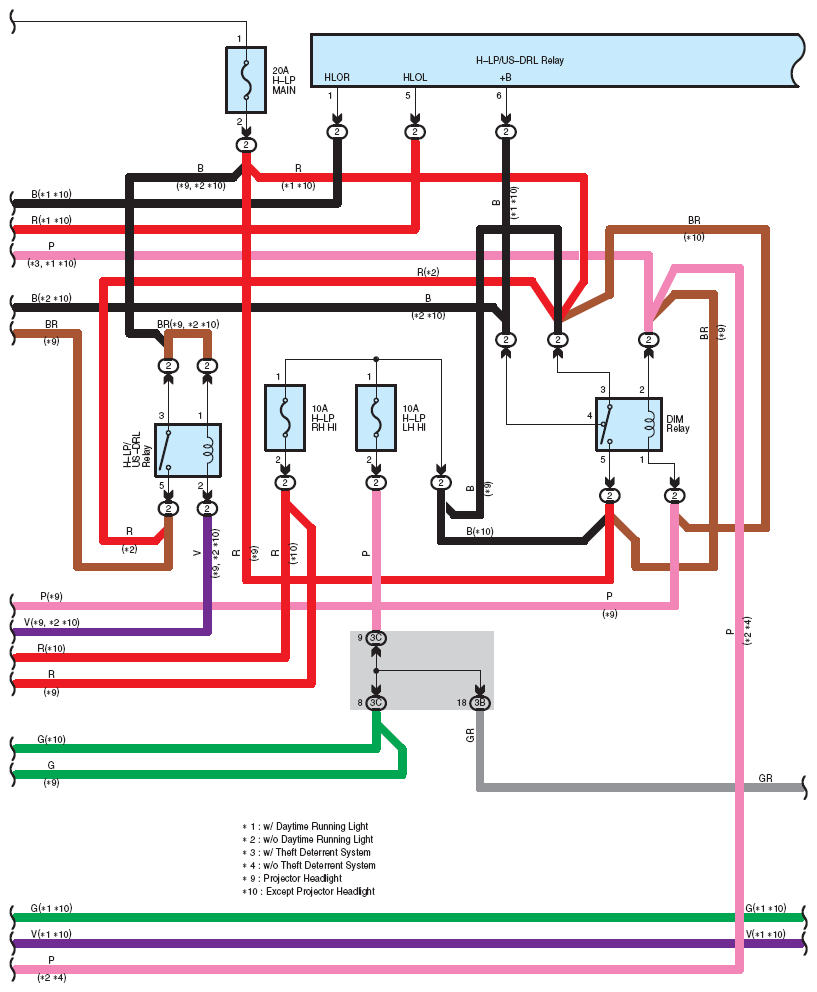

Fig 6: Headlight - Hatchback (6 Of 7)
G12220067

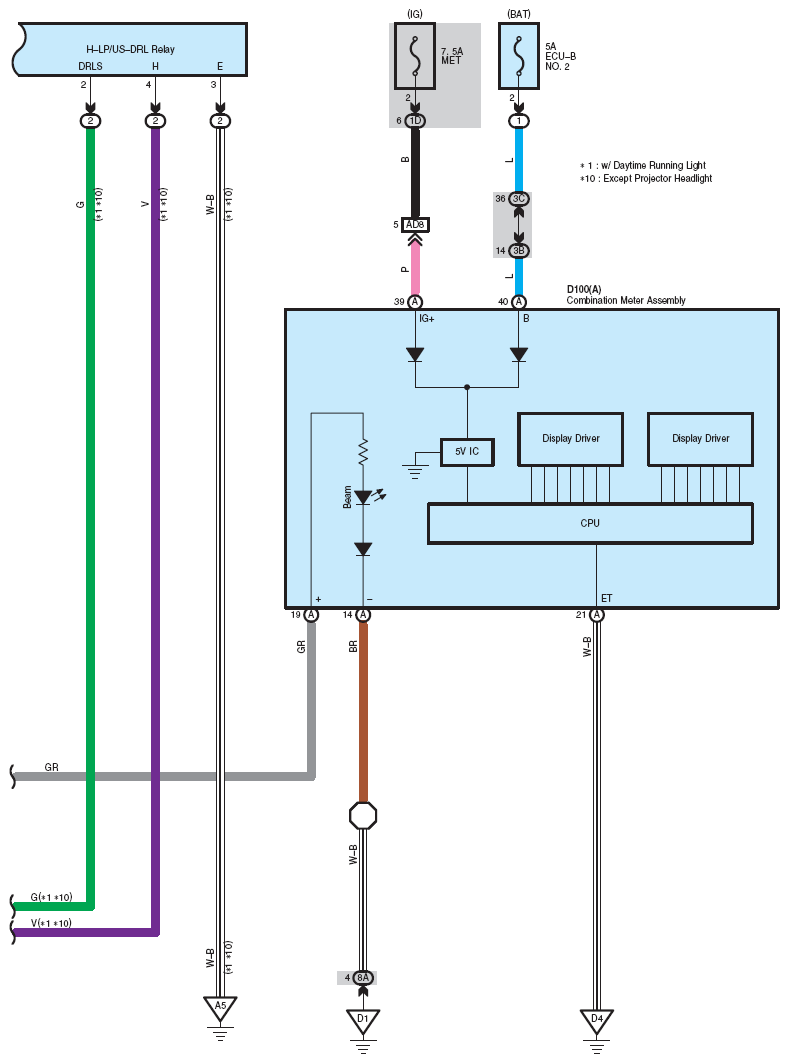

Fig 7: Headlight - Hatchback (7 Of 7)
G12220068
