Home >> Toyota >> 2017 >> Yaris SE, Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Ground Point - Hatchback >> System Diagrams

System Diagrams

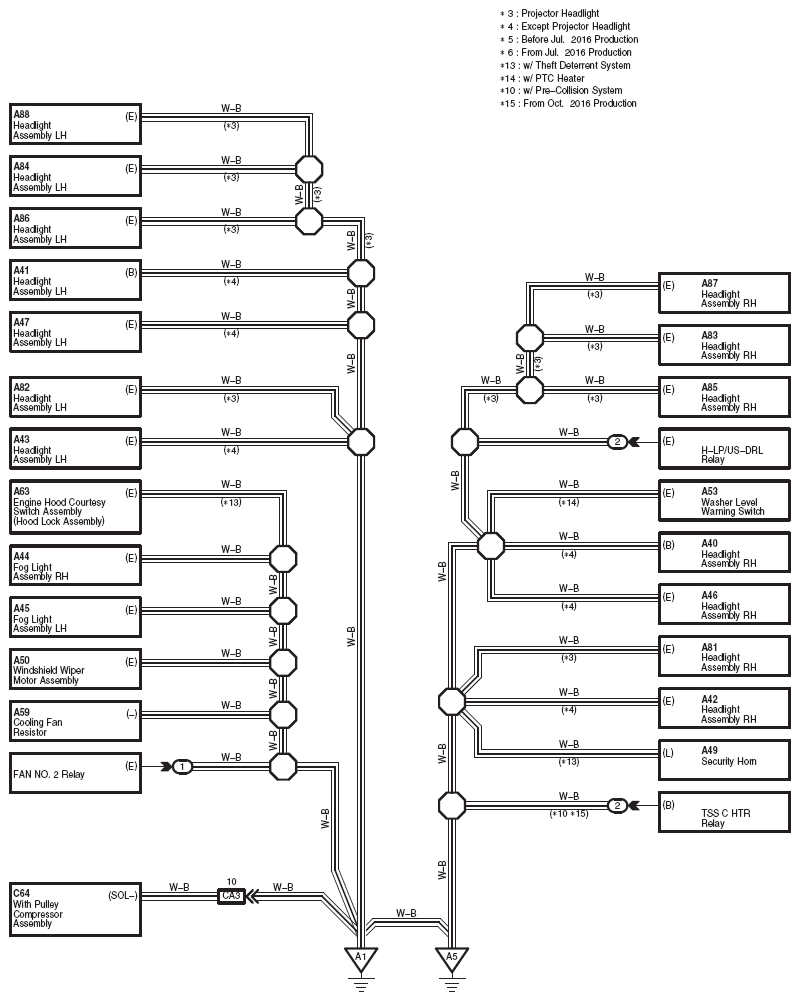

Fig 1: Ground Point - Hatchback (1 Of 6)
G12220045

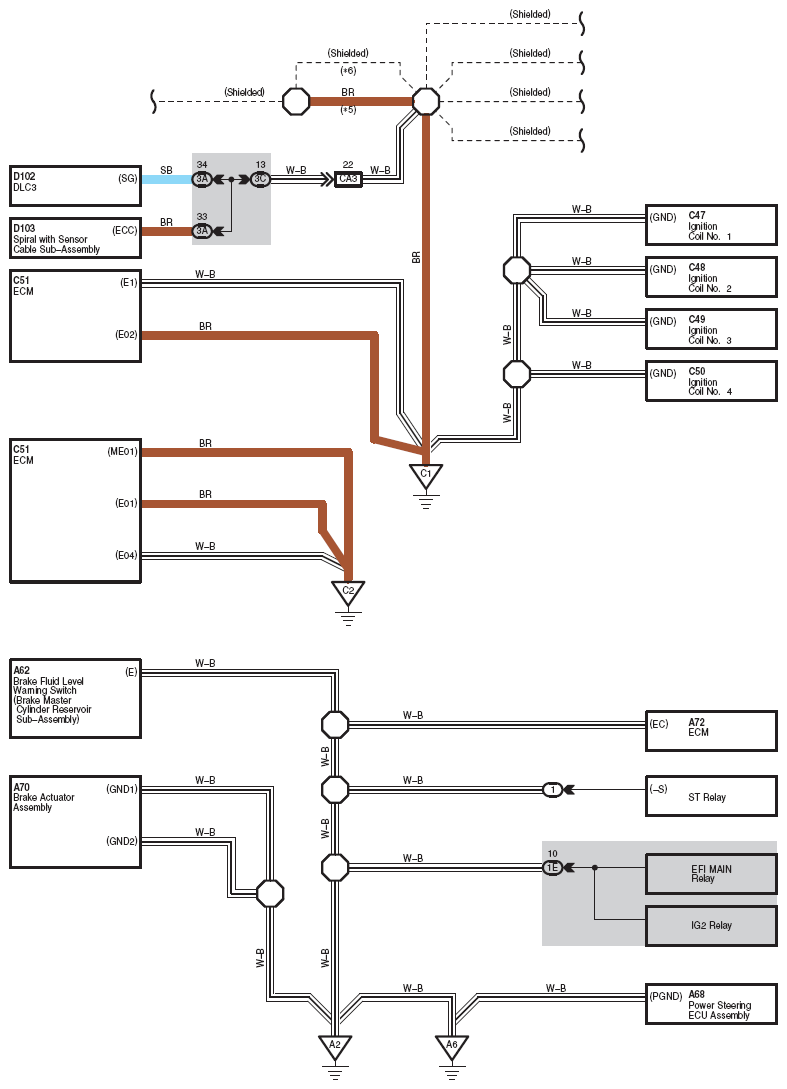

Fig 2: Ground Point - Hatchback (2 Of 6)
G12220046

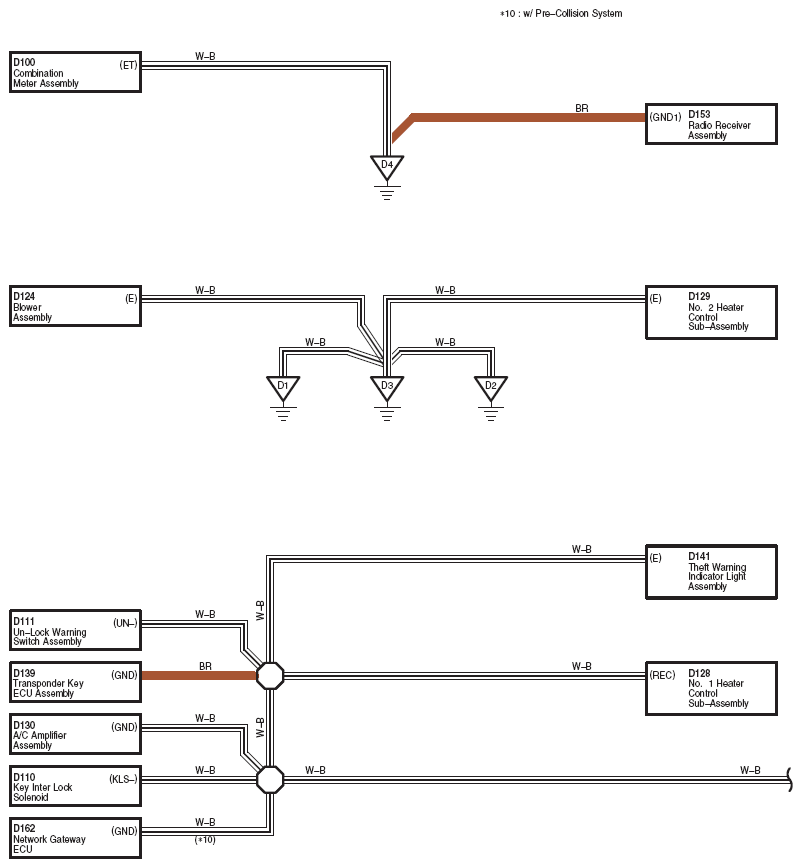

Fig 3: Ground Point - Hatchback (3 Of 6)
G12220047

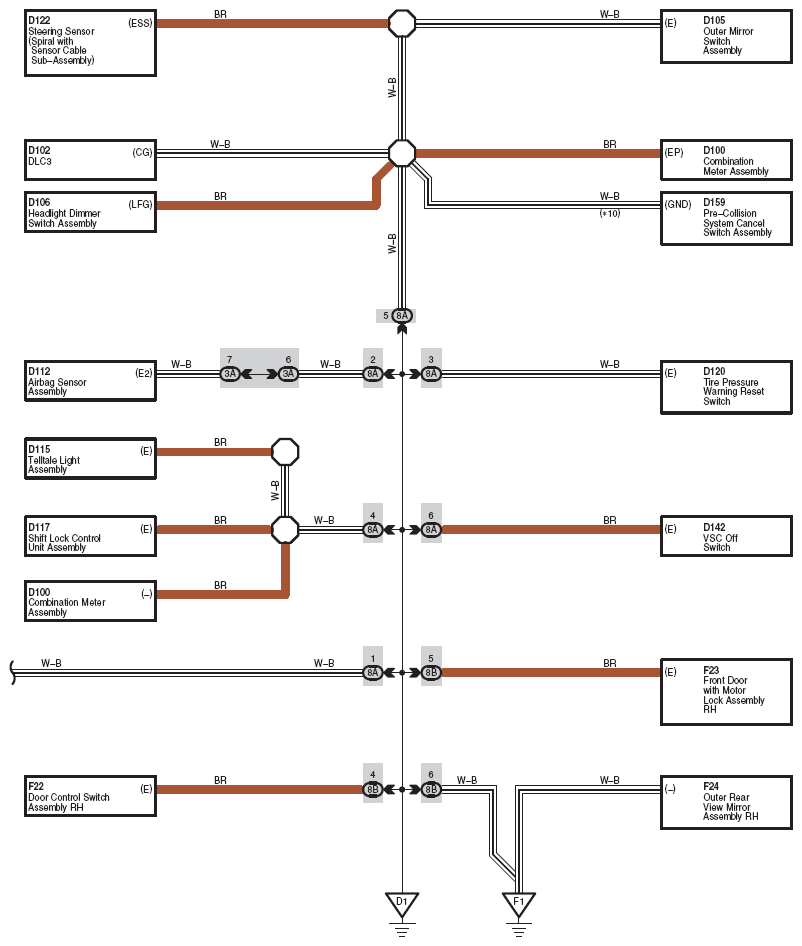

Fig 4: Ground Point - Hatchback (4 Of 6)
G12220048

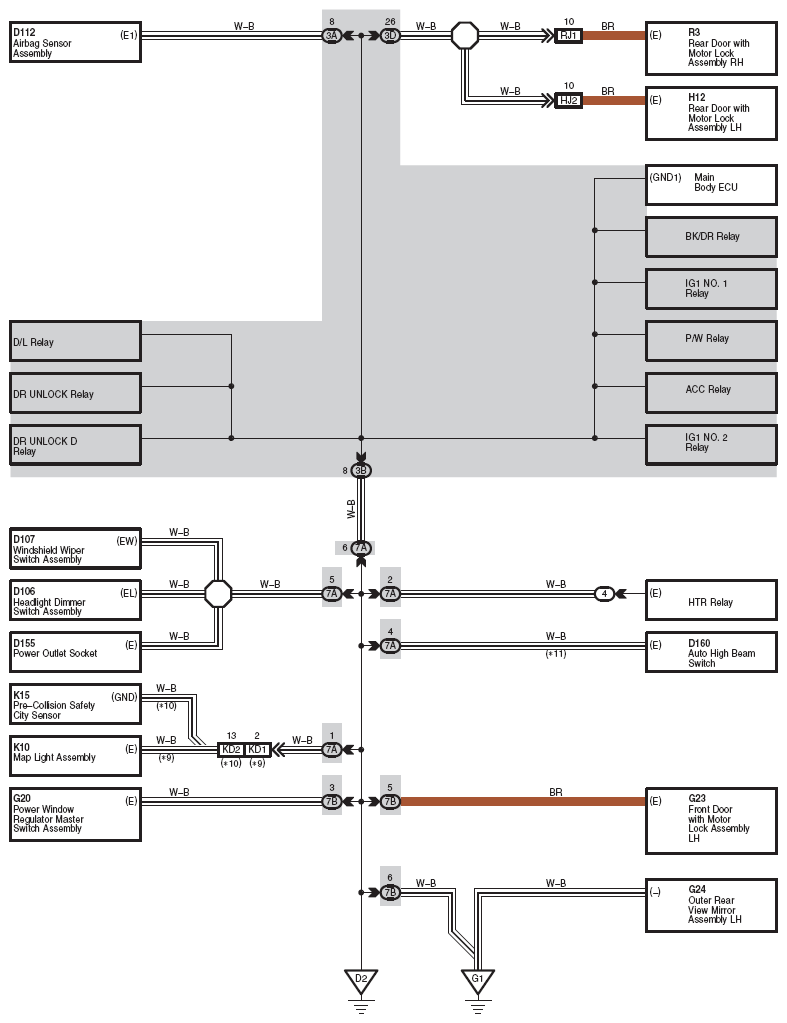

Fig 5: Ground Point - Hatchback (5 Of 6)
G12220049

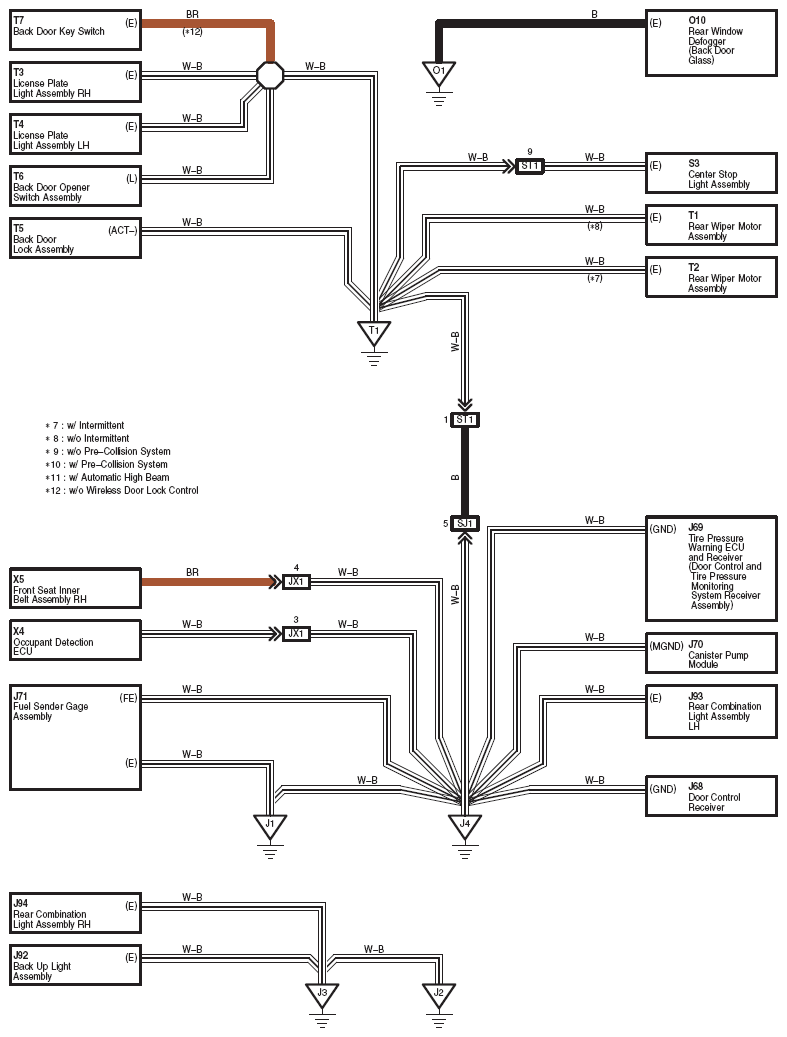

Fig 6: Ground Point - Hatchback (6 Of 6)
G12220050
