System Diagrams

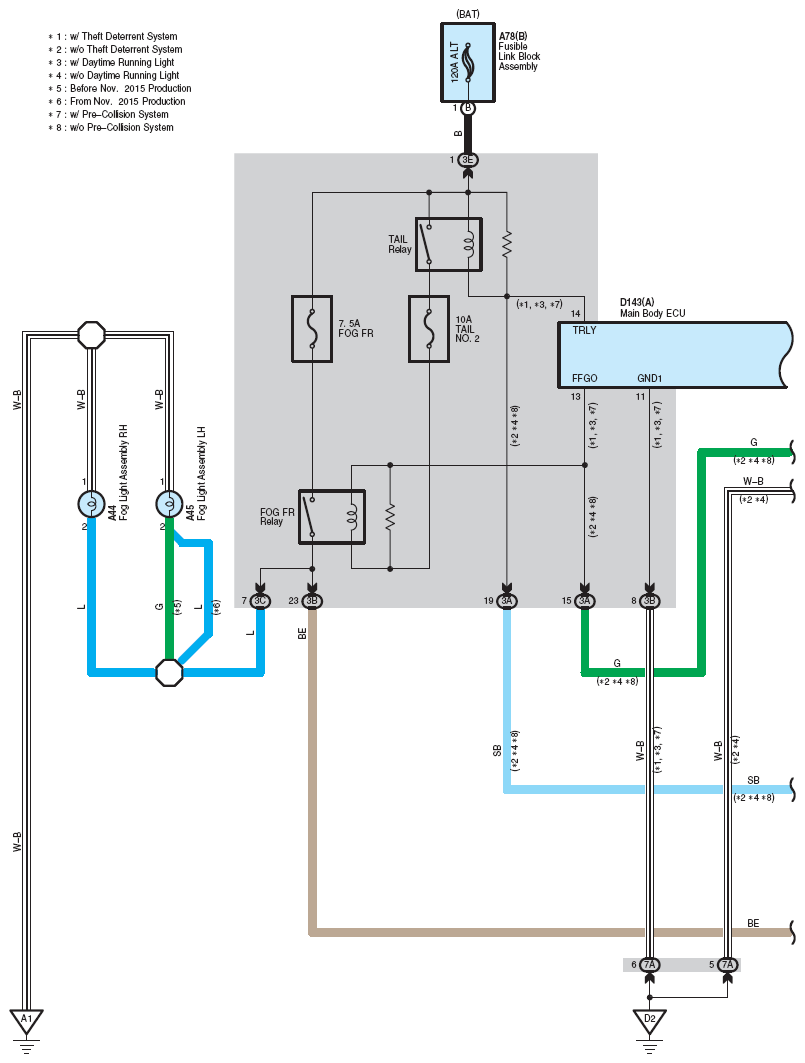

Fig 1: Front Fog Light - Hatchback (1 Of 3)

G12220031

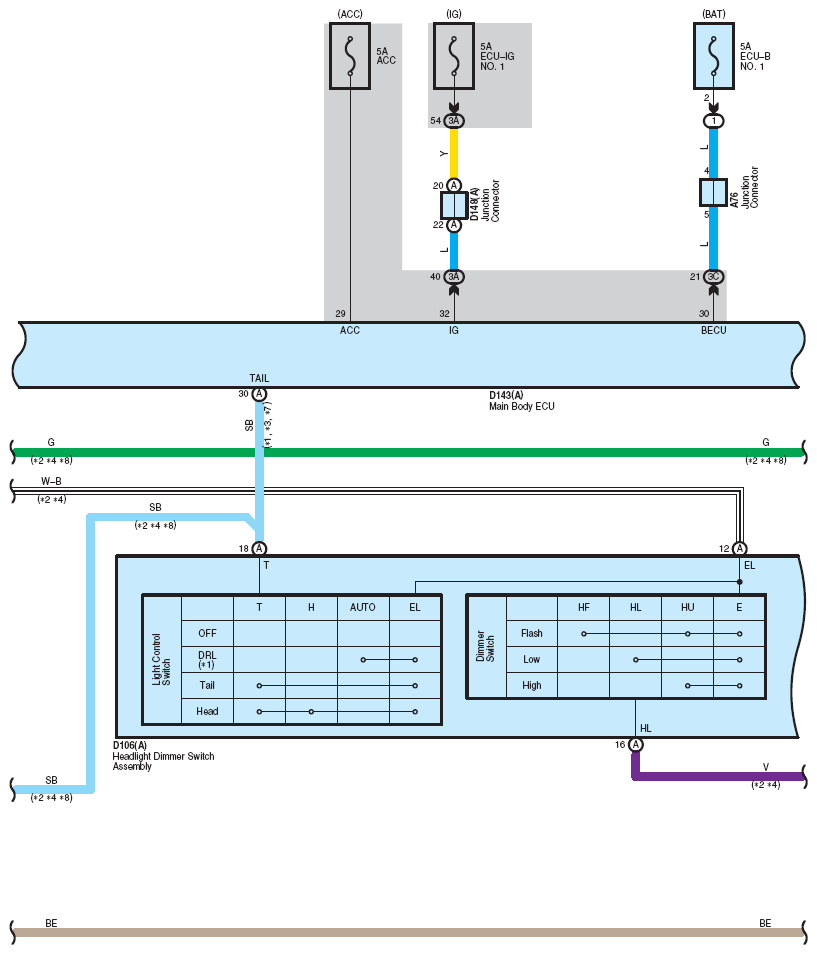

Fig 2: Front Fog Light - Hatchback (2 Of 3)

G12220032

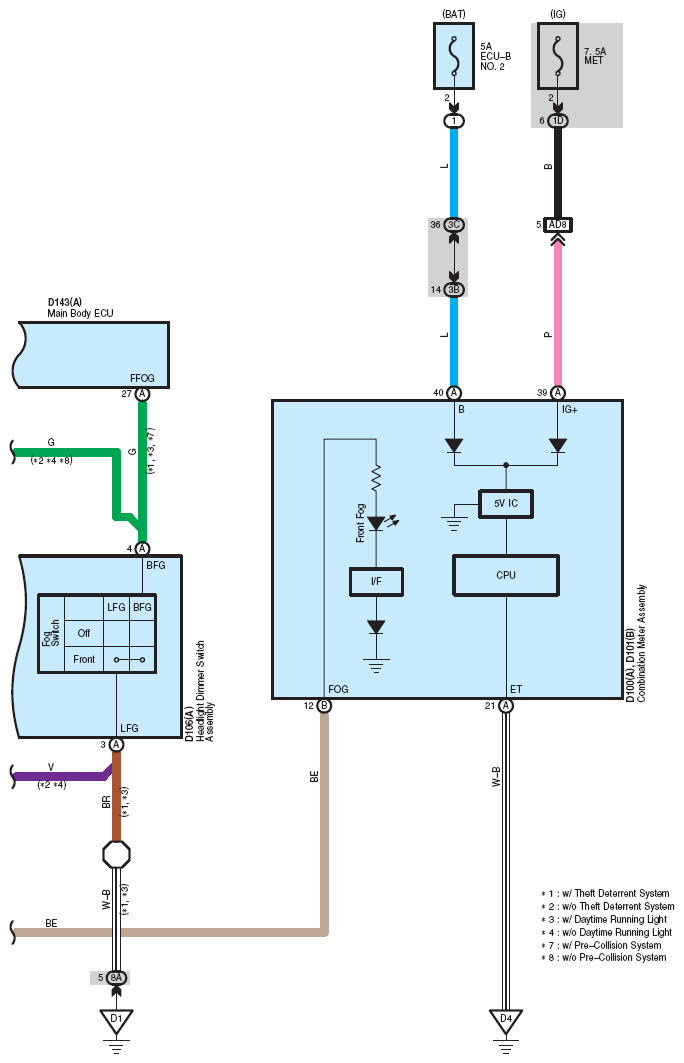

Fig 3: Front Fog Light - Hatchback (3 Of 3)

G12220033
