Engine Immobiliser System - Hatchback: Connectors

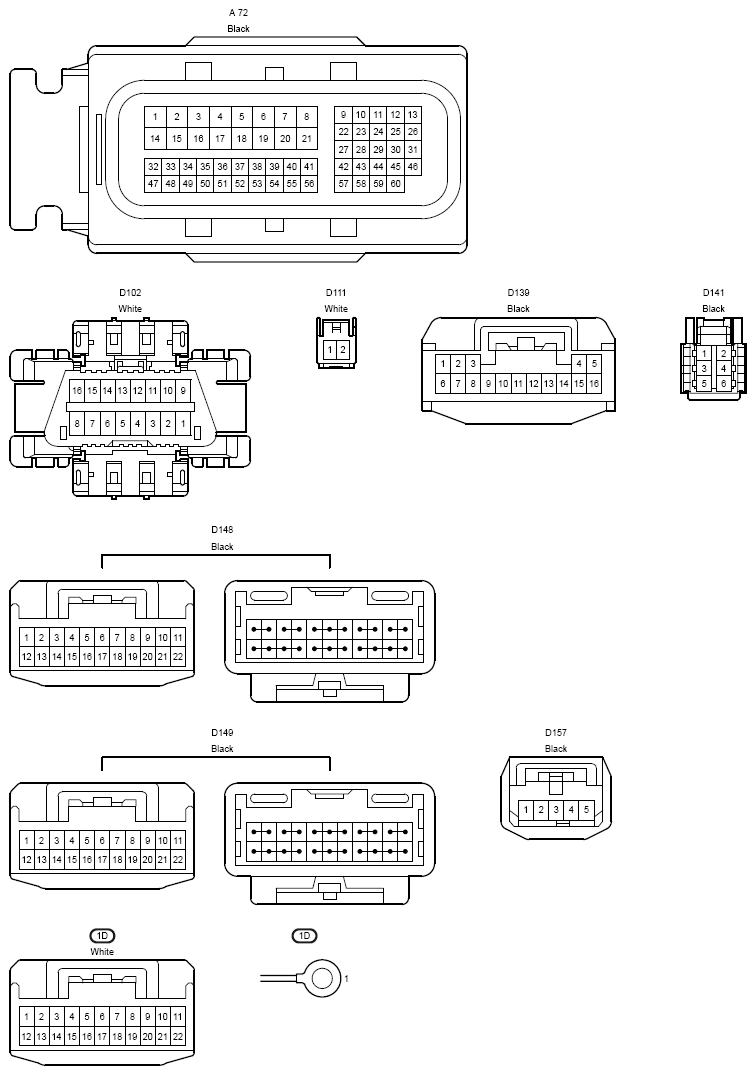

Fig 1: Connectors (1 Of 2)

G12220014

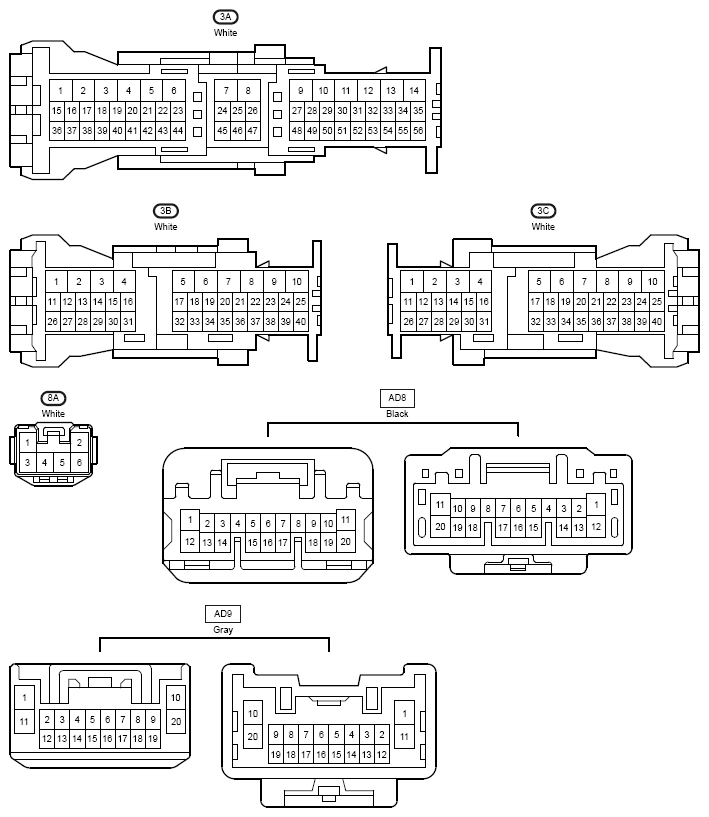

Fig 2: Connectors (2 Of 2)

G12220015
