System Diagrams

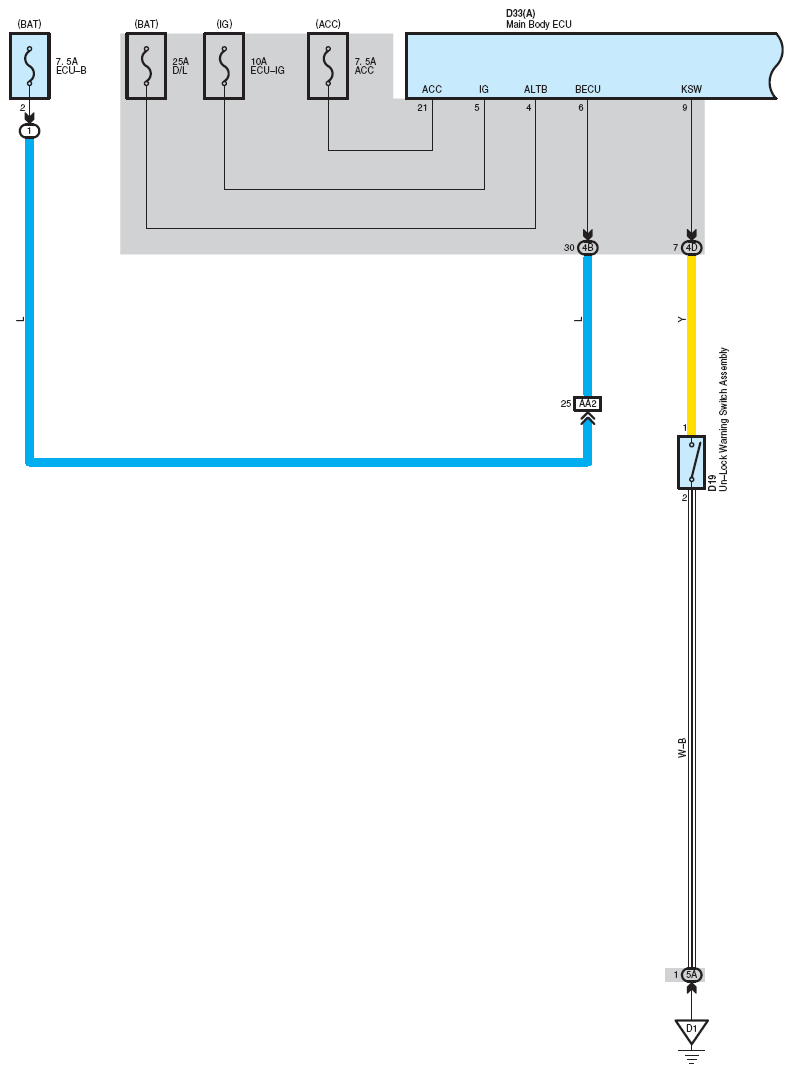

Fig 1: Door Lock Control - Sedan (1 Of 4)

G12219962

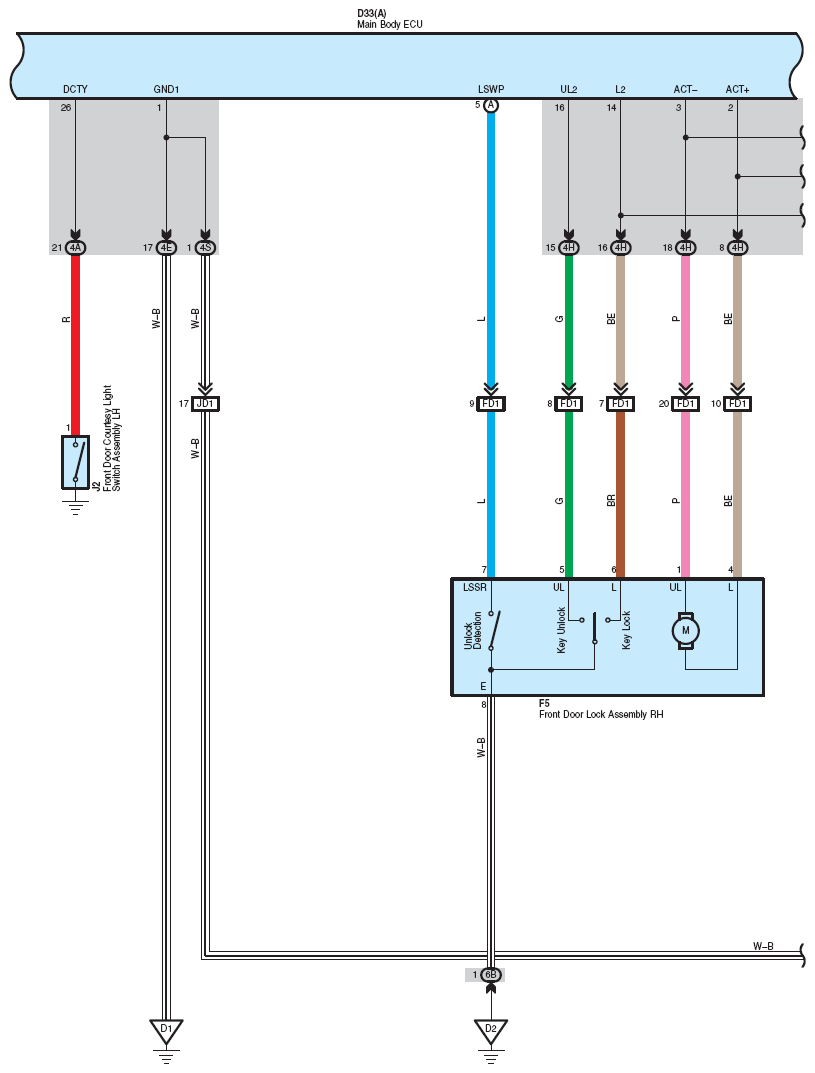

Fig 2: Door Lock Control - Sedan (2 Of 4)

G12219963

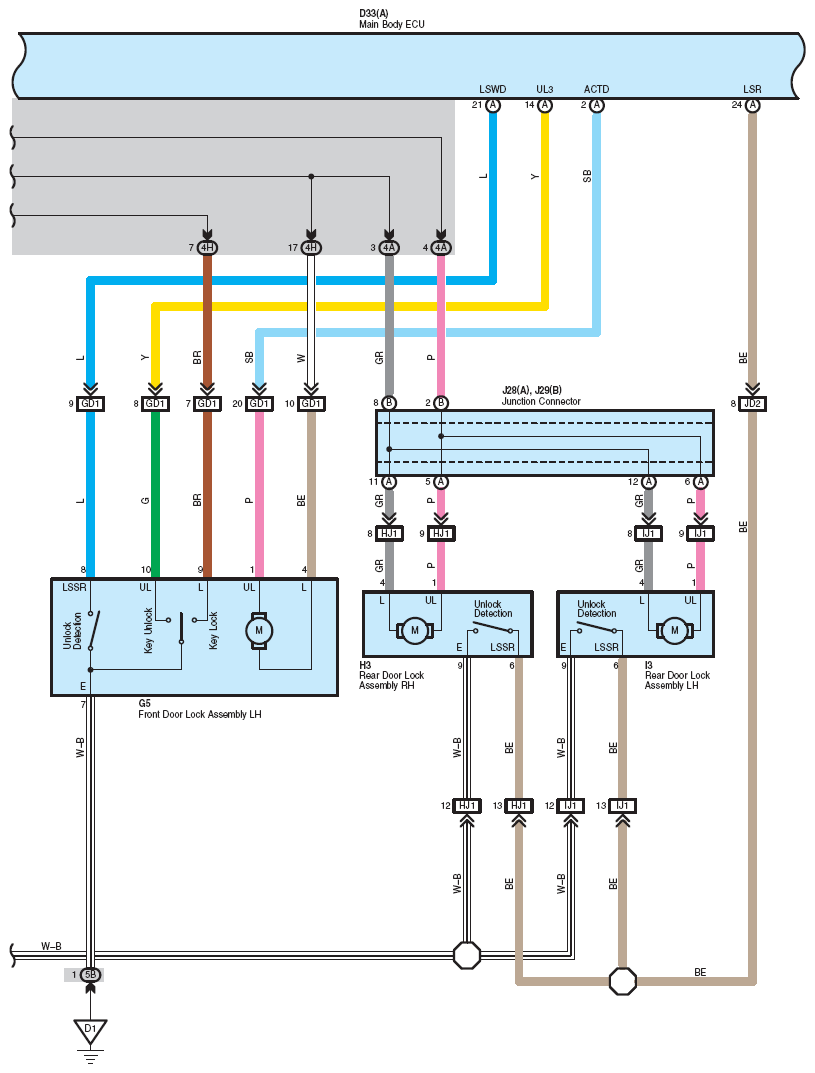

Fig 3: Door Lock Control - Sedan (3 Of 4)

G12219964

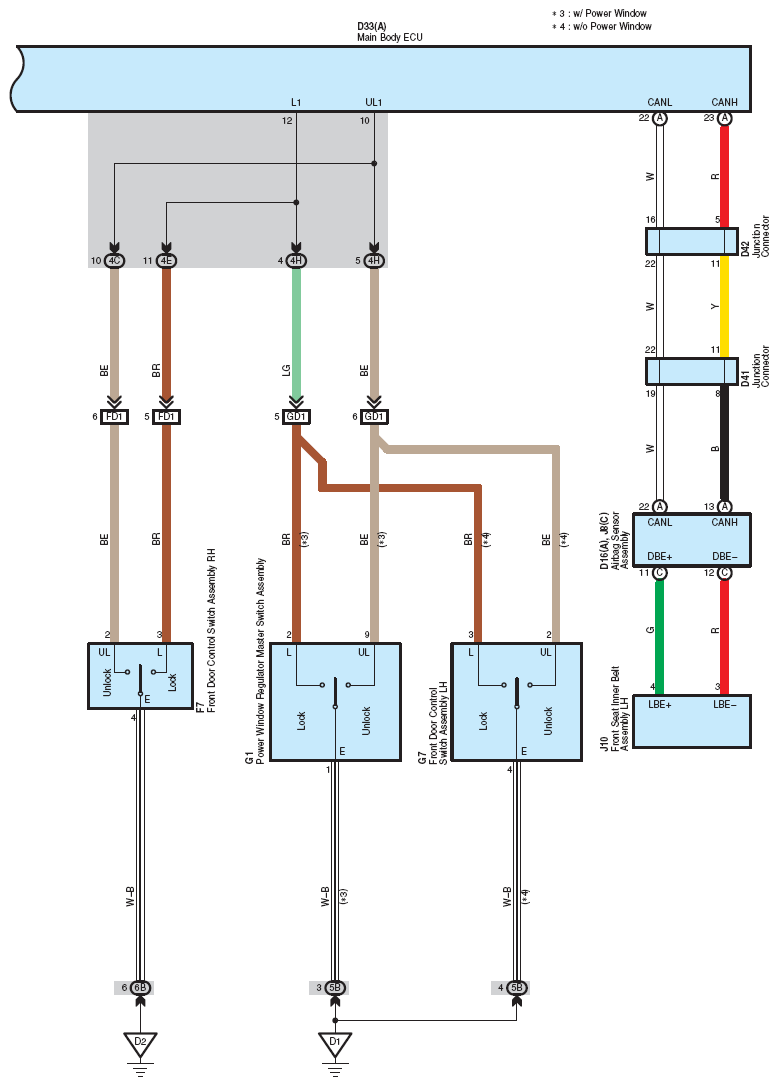

Fig 4: Door Lock Control - Sedan (4 Of 4)

G12219965
