Data Link Connector 3 - Hatchback: Connectors

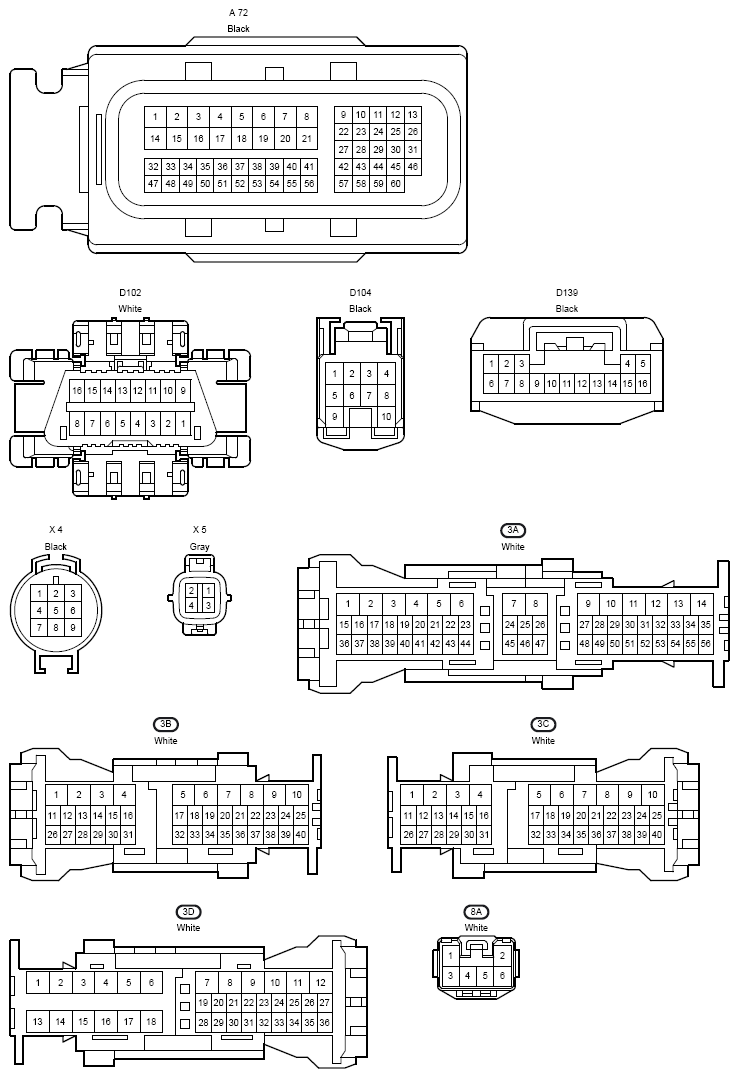

Fig 1: Connectors (1 Of 2)

G12219947

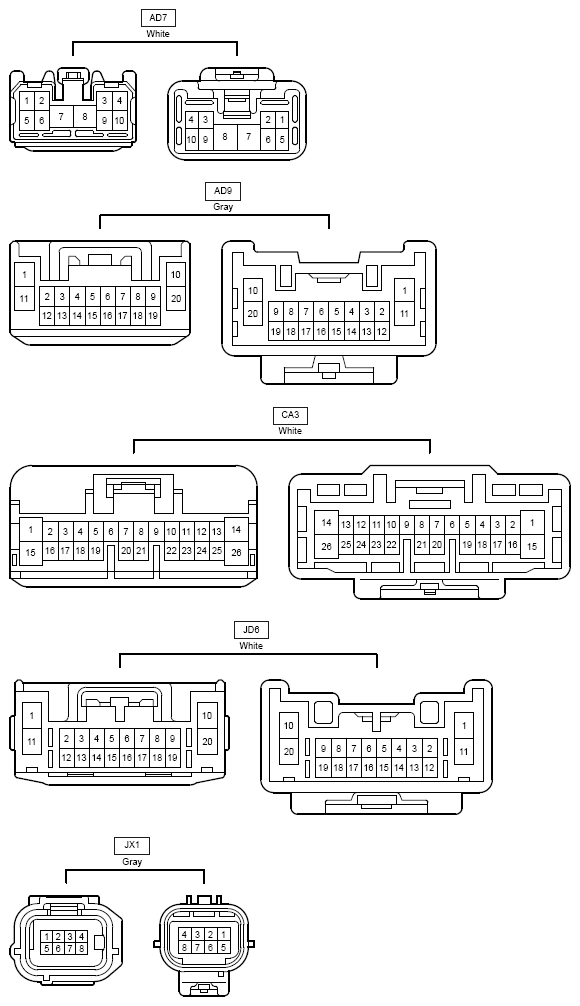

Fig 2: Connectors (2 Of 2)

G12219948
