System Diagrams

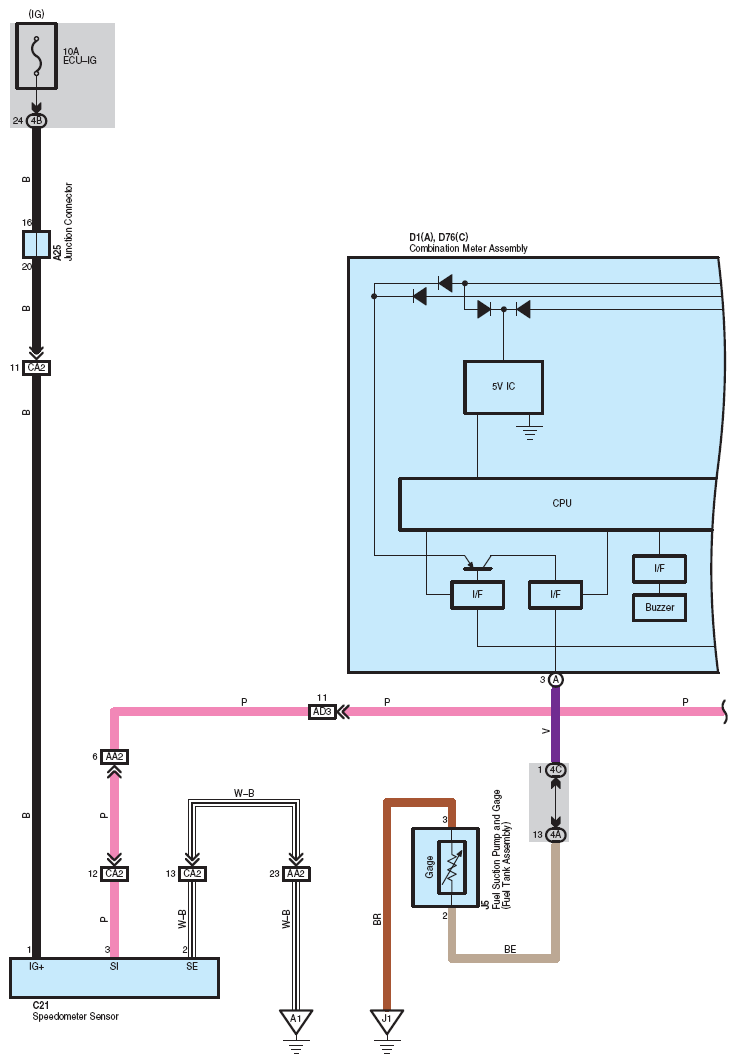

Fig 1: Combination Meter - Sedan (1 Of 8)

G12219926

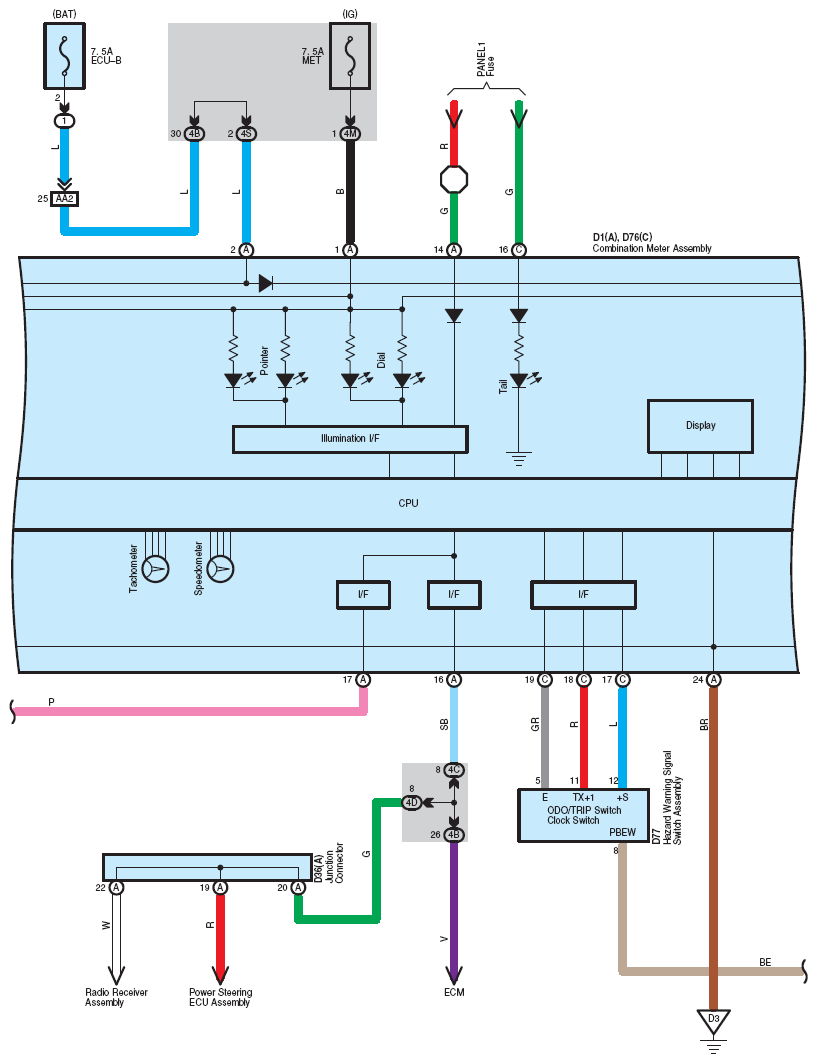

Fig 2: Combination Meter - Sedan (2 Of 8)

G12219927

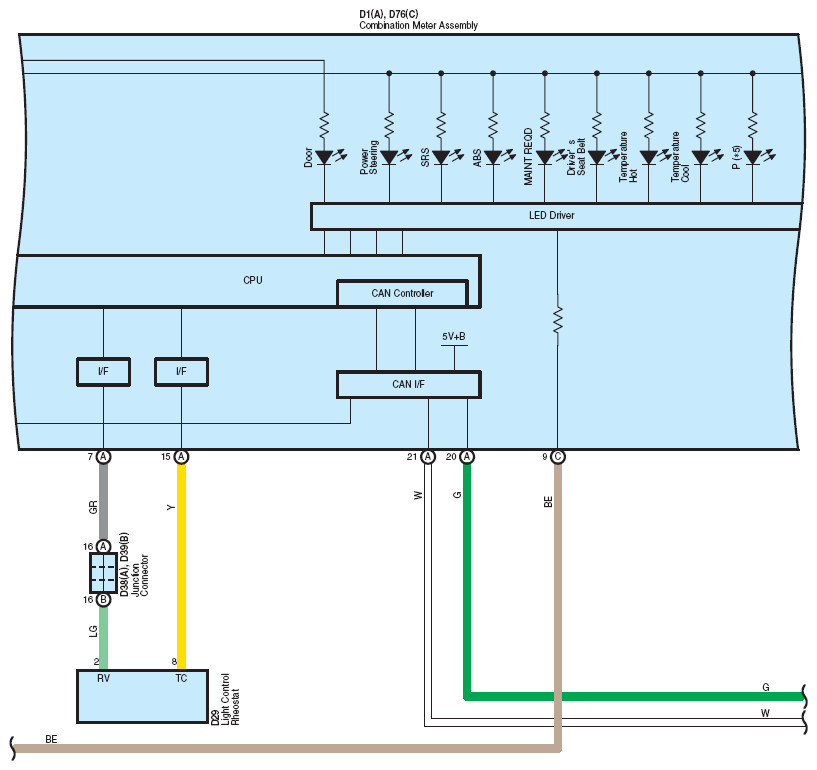

Fig 3: Combination Meter - Sedan (3 Of 8)

G12219928

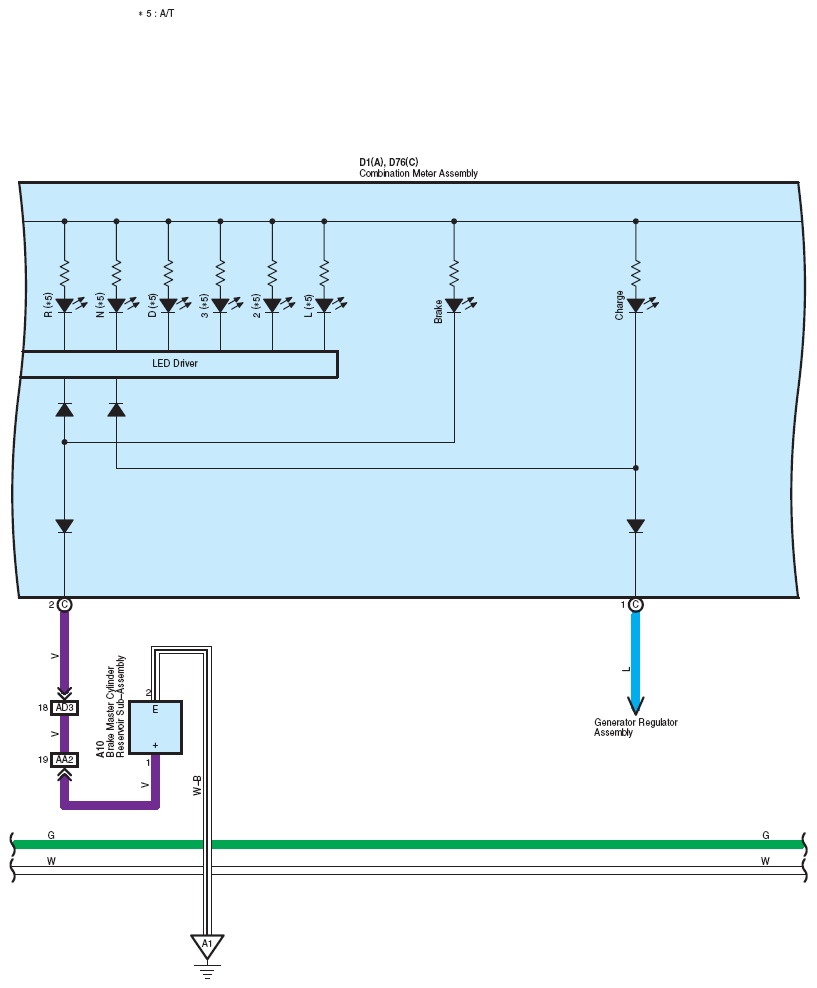

Fig 4: Combination Meter - Sedan (4 Of 8)

G12219929

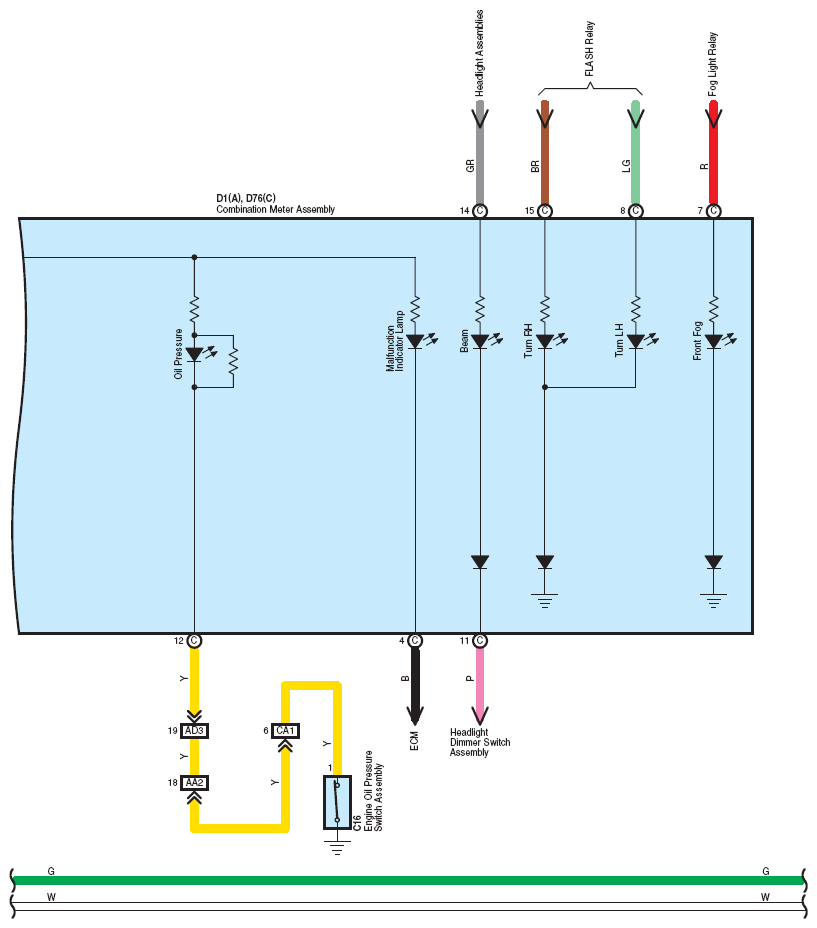

Fig 5: Combination Meter - Sedan (5 Of 8)

G12219930

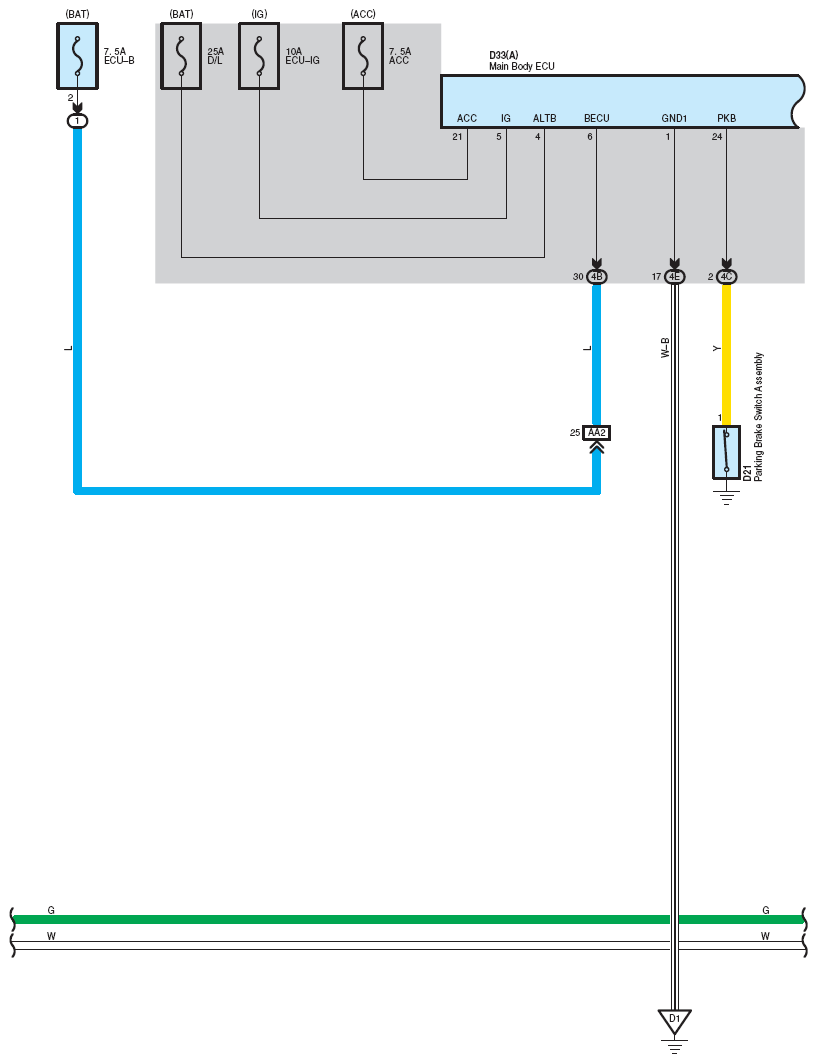

Fig 6: Combination Meter - Sedan (6 Of 8)

G12219931

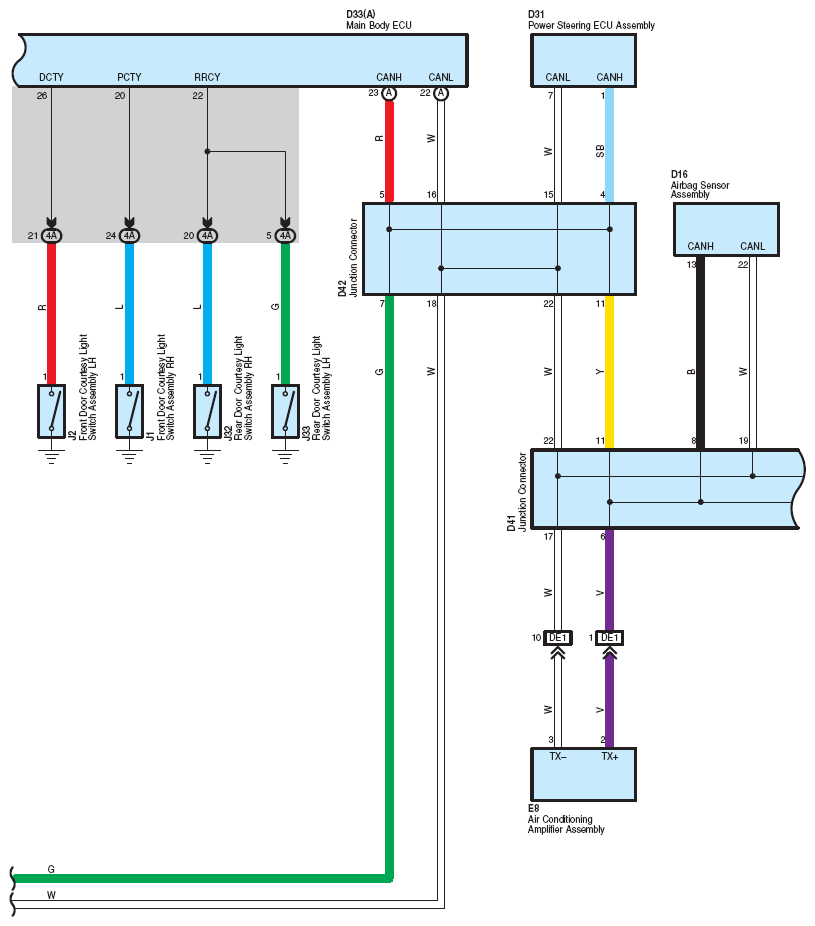

Fig 7: Combination Meter - Sedan (7 Of 8)

G12219932

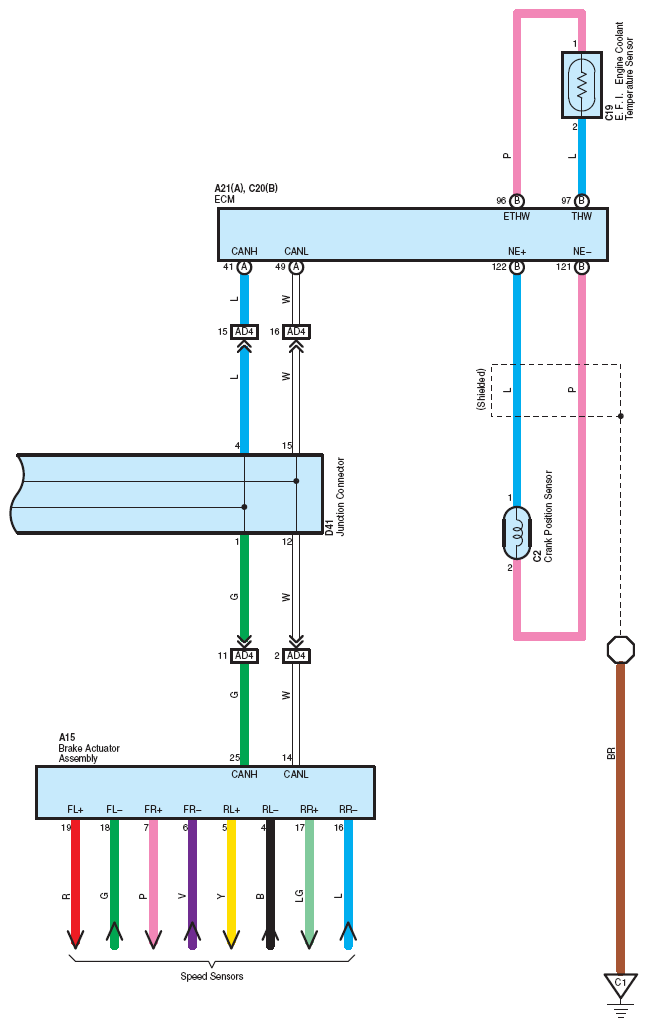

Fig 8: Combination Meter - Sedan (8 Of 8)

G12219933
