Combination Meter - Hatchback: Connectors

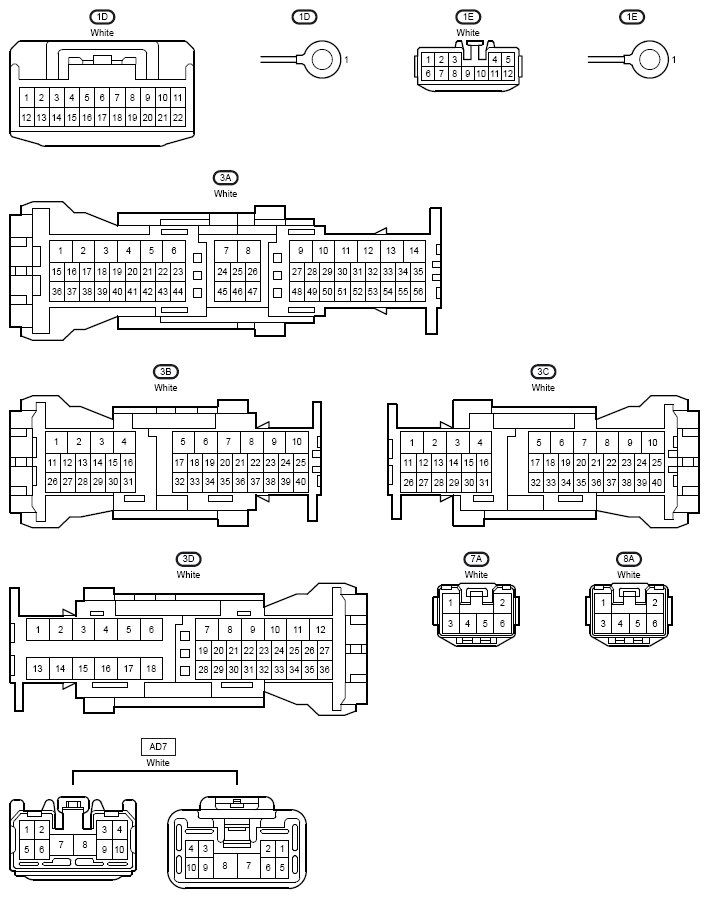

Fig 1: Connectors (1 Of 6)

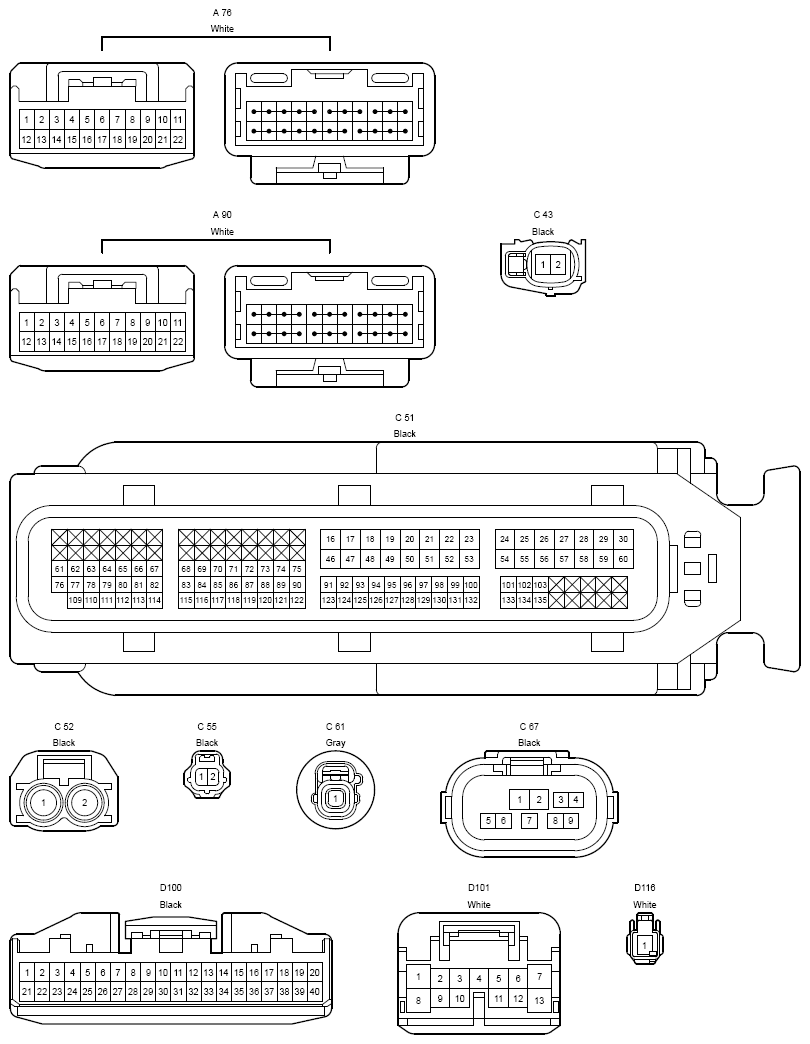

Fig 2: Connectors (2 Of 6)

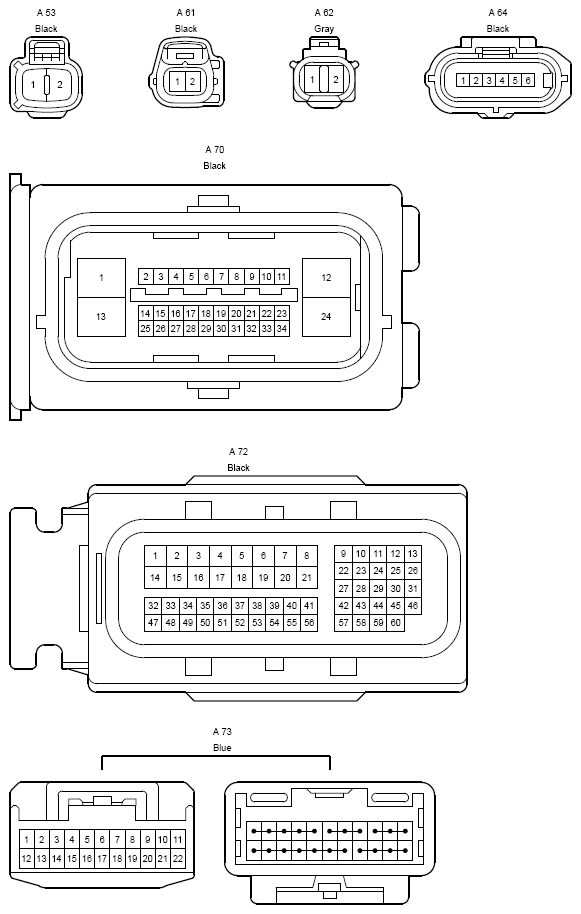

Fig 3: Connectors (3 Of 6)

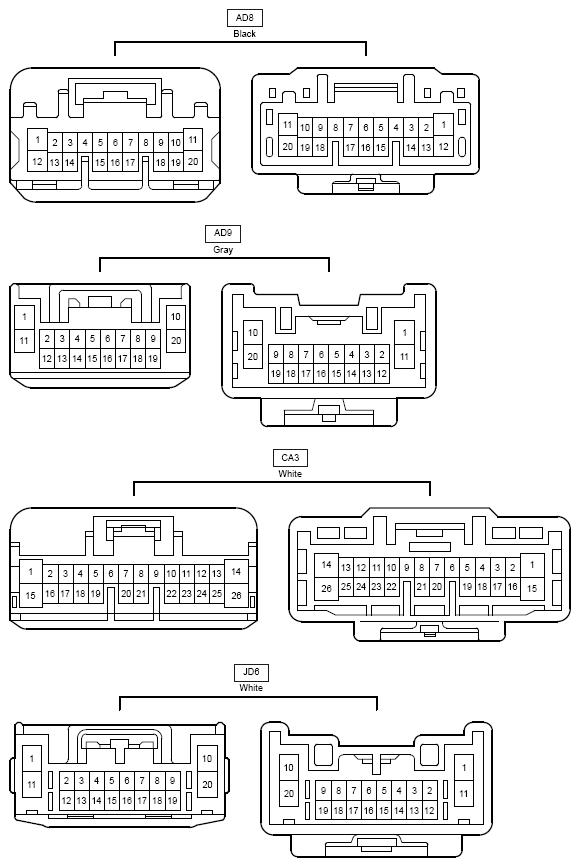

Fig 4: Connectors (4 Of 6)

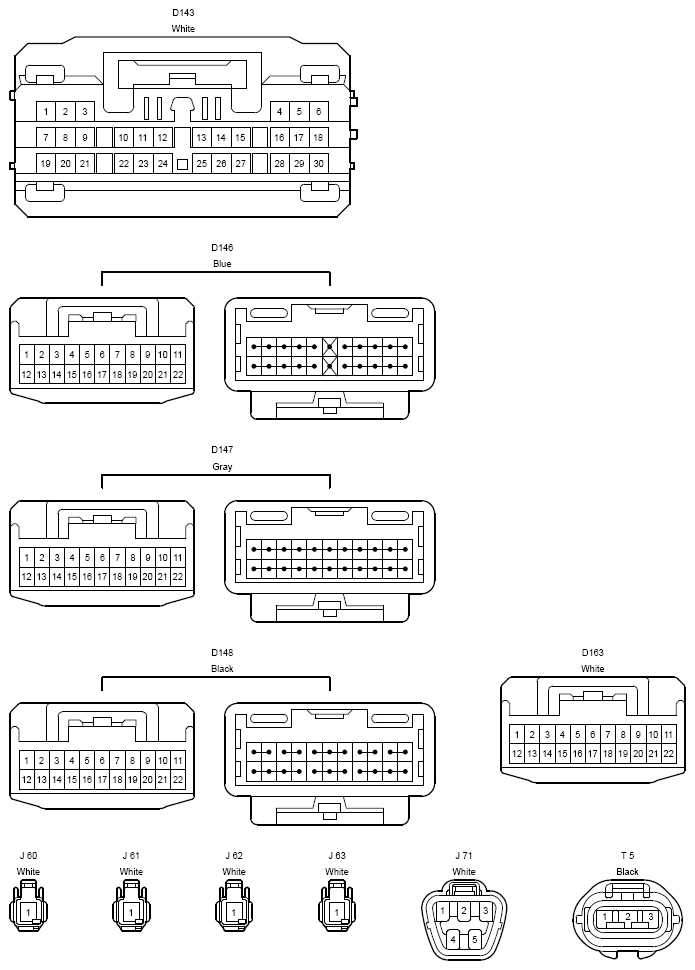

Fig 5: Connectors (5 Of 6)

Fig 6: Connectors (6 Of 6)
