Home >> Toyota >> 2017 >> Yaris SE, Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Air Conditioning - Hatchback >> System Diagrams

System Diagrams

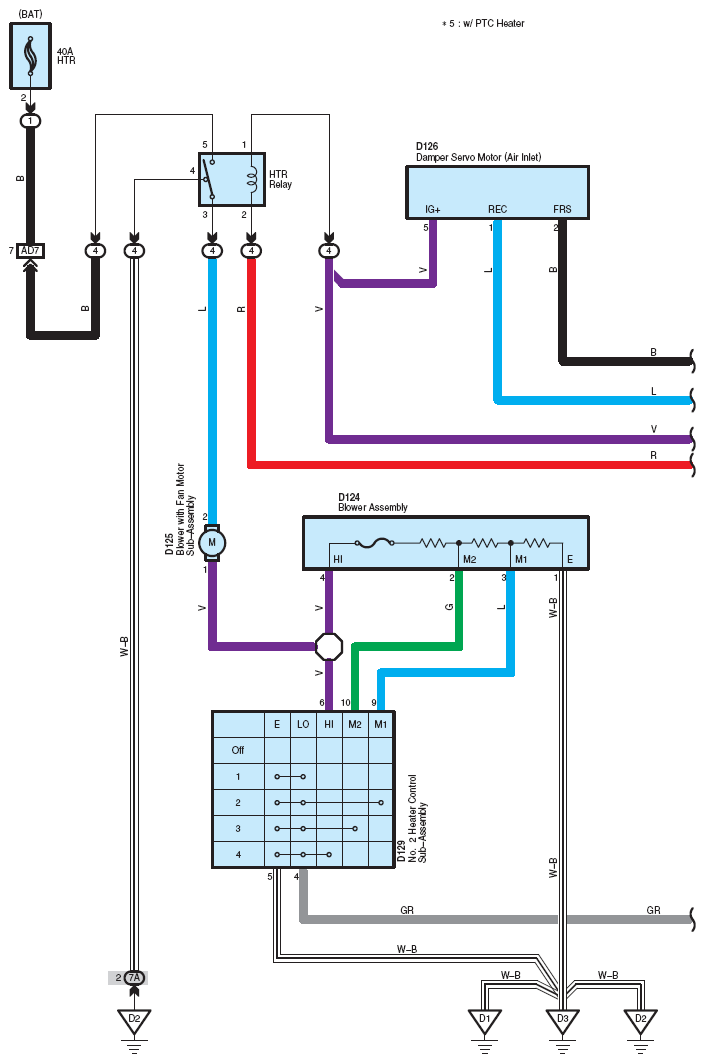

Fig 1: Air Conditioning - Hatchback (1 Of 5)
G12219857

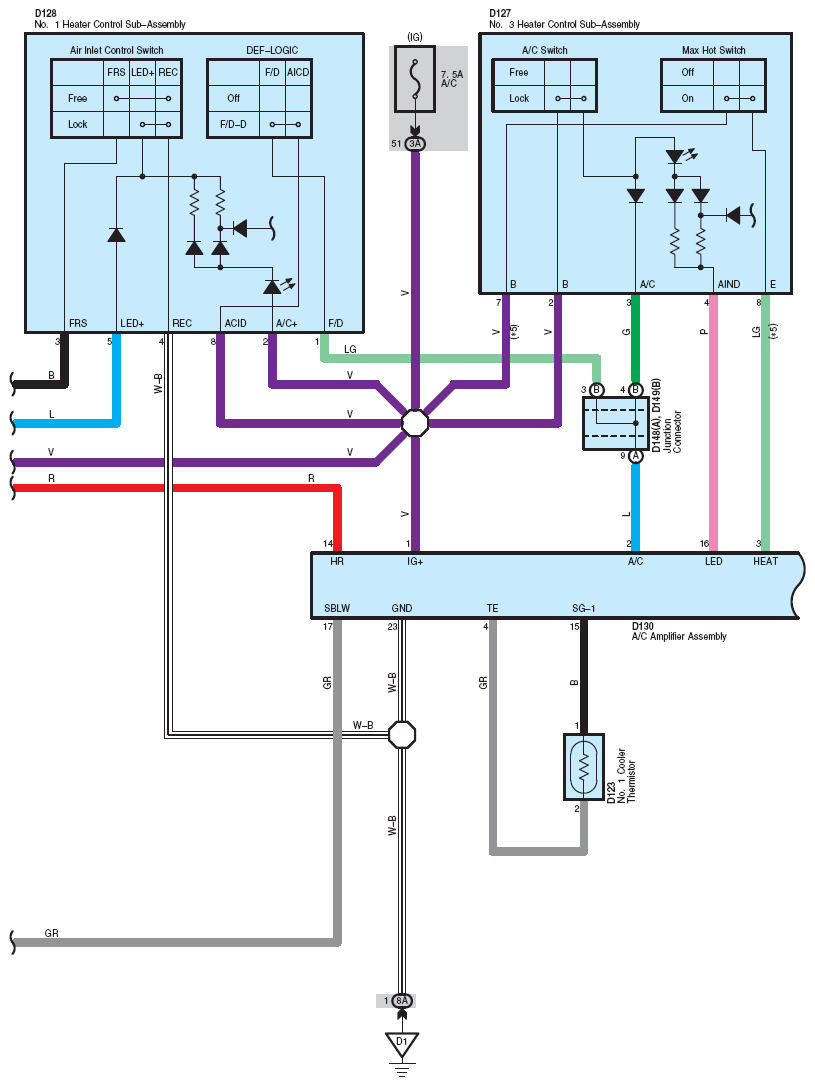

Fig 2: Air Conditioning - Hatchback (2 Of 5)
G12219858

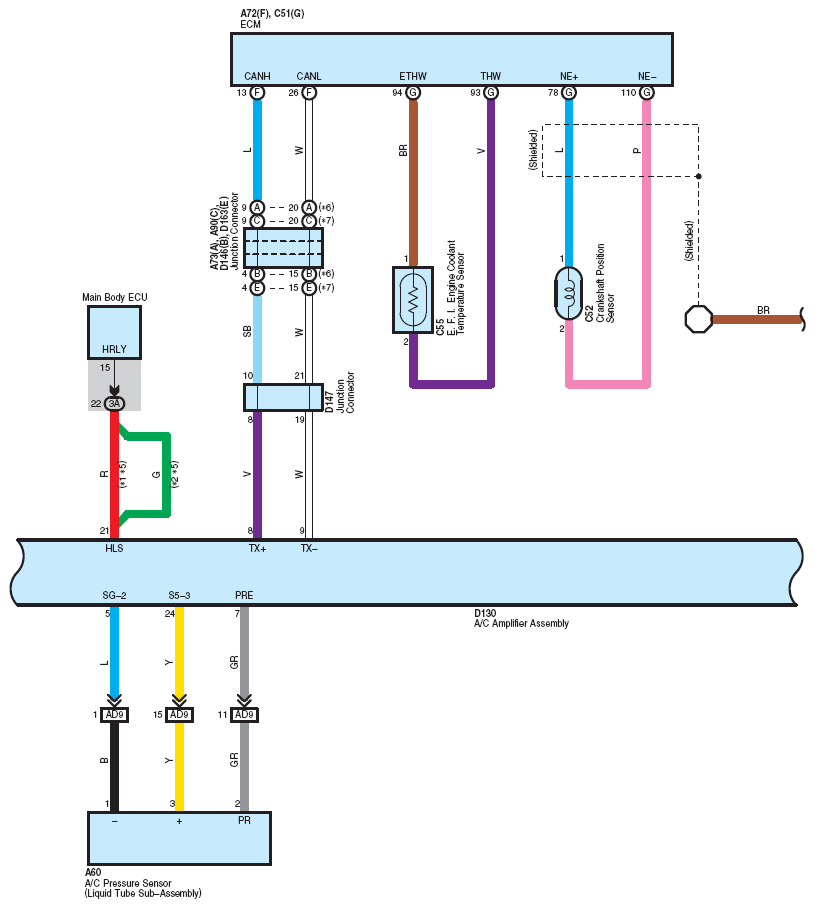

Fig 3: Air Conditioning - Hatchback (3 Of 5)
G12219859

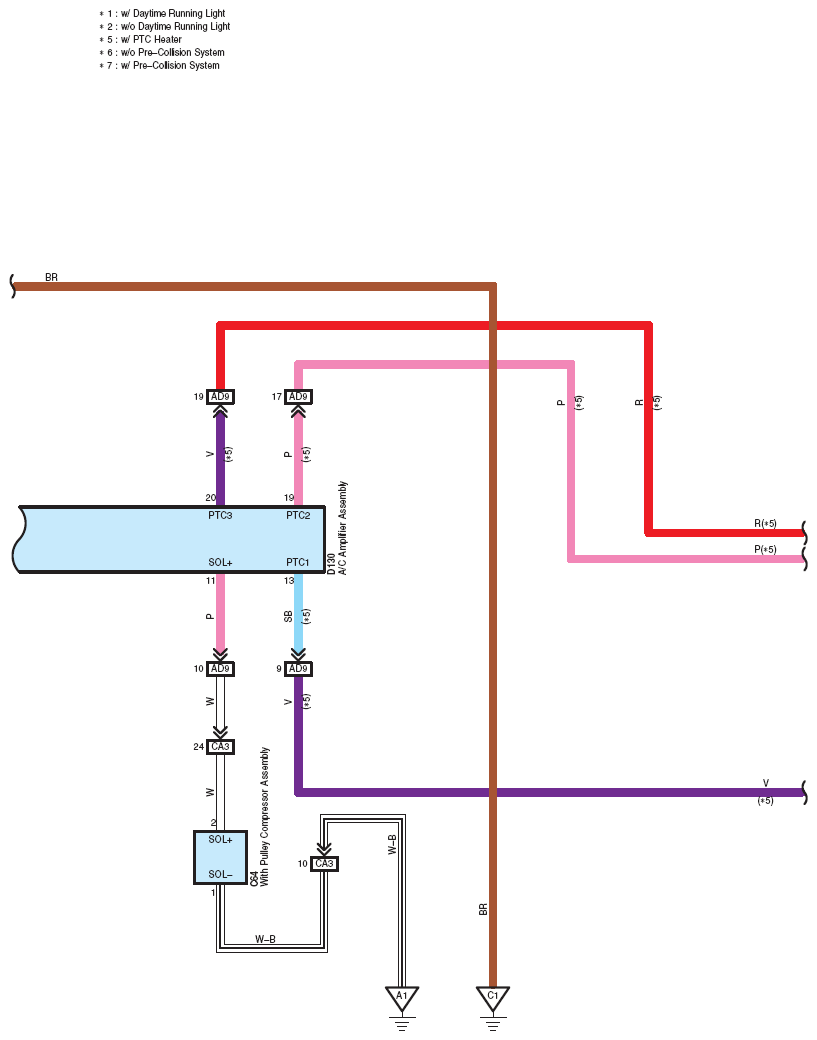

Fig 4: Air Conditioning - Hatchback (4 Of 5)
G12219860

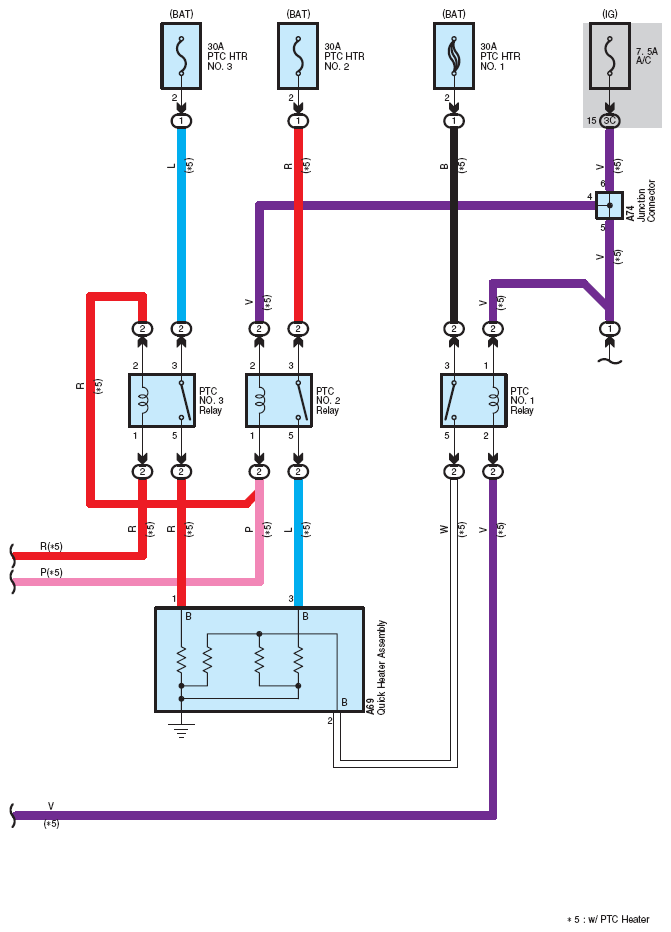

Fig 5: Air Conditioning - Hatchback (5 Of 5)
G12219861
