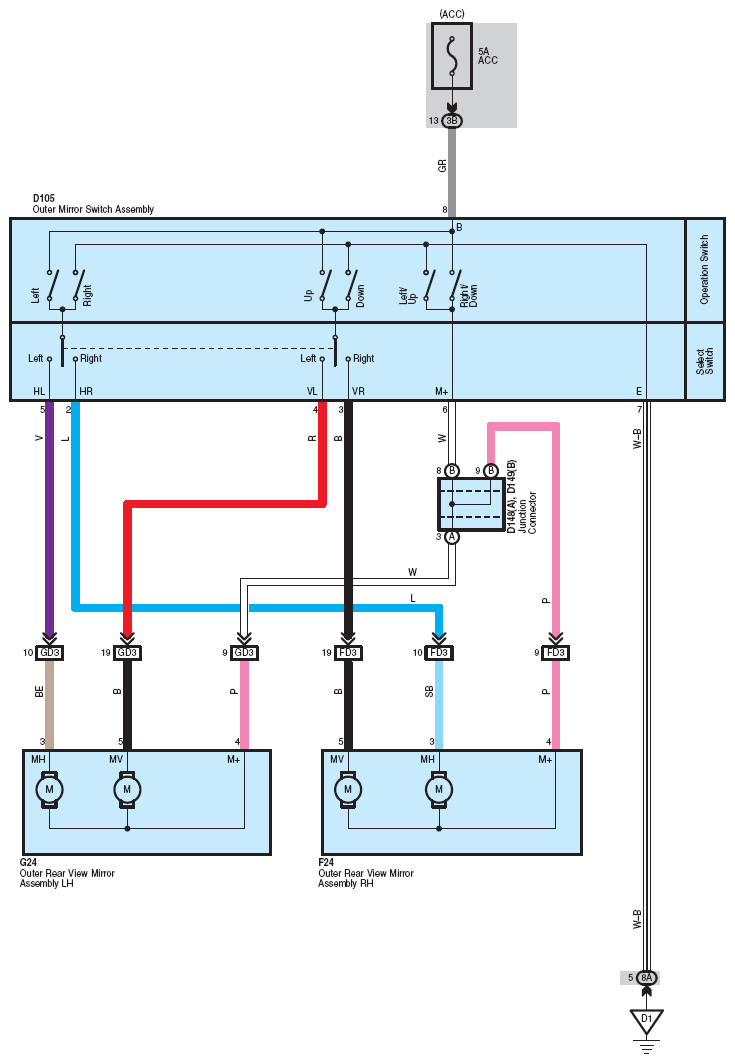

Home >> Toyota >> 2017 >> Yaris L, 2D Hatchback, Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Remote Control Mirror - Hatchback >> System Diagrams
