System Diagrams

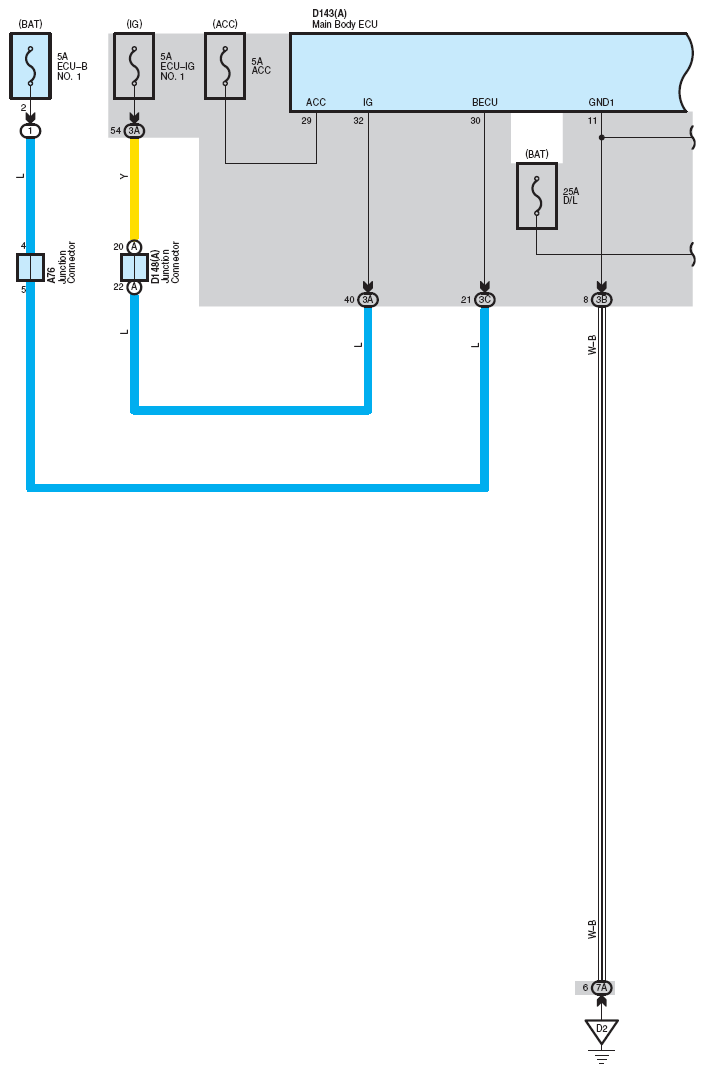

Fig 1: Door Lock Control - Hatchback (1 Of 6)

G12219952

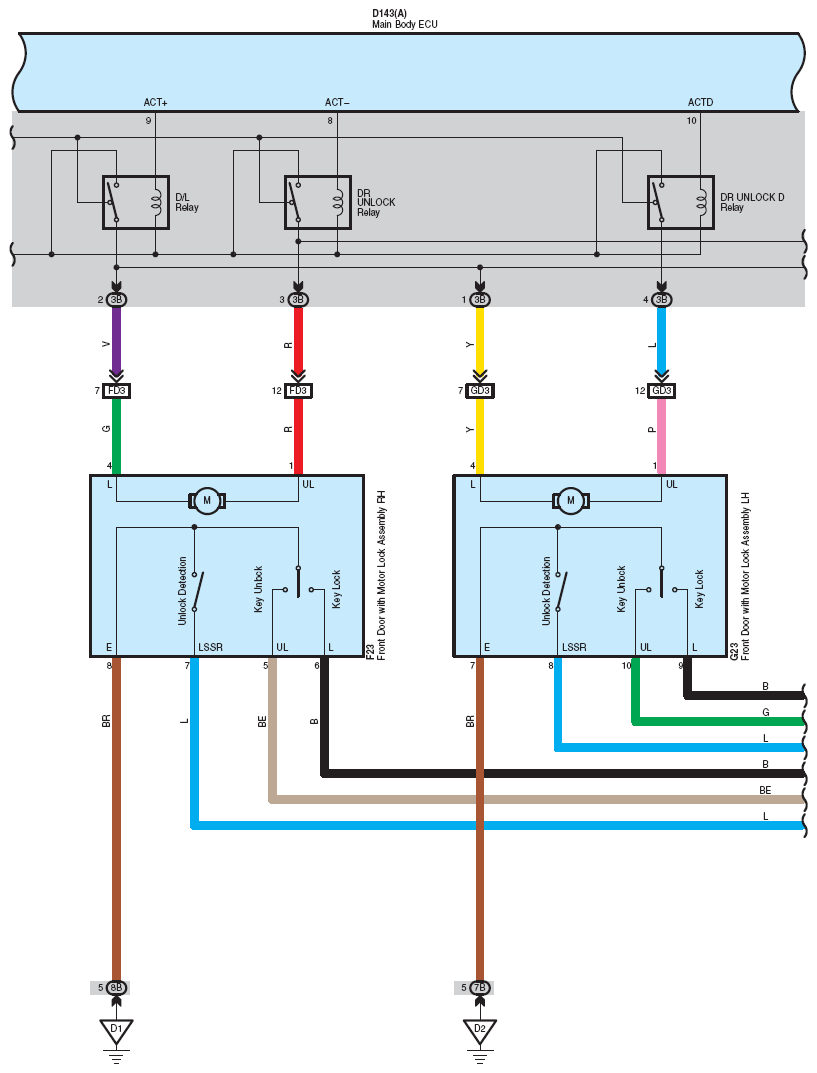

Fig 2: Door Lock Control - Hatchback (2 Of 6)

G12219953

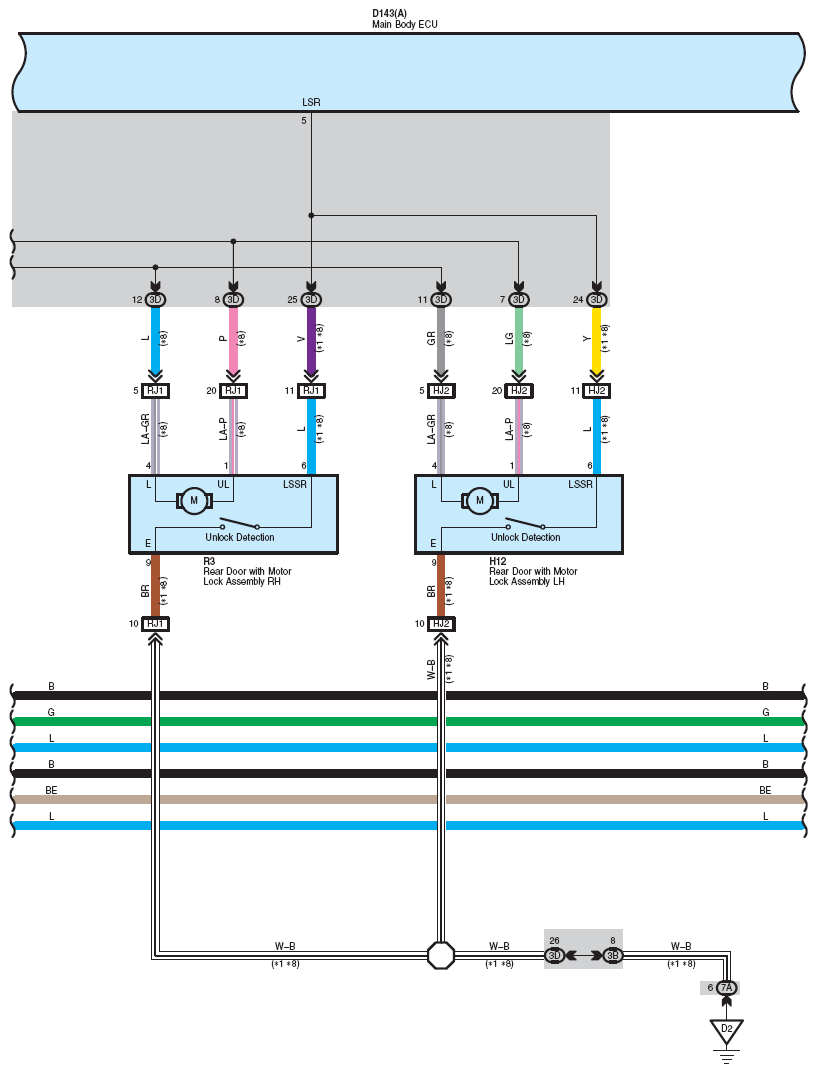

Fig 3: Door Lock Control - Hatchback (3 Of 6)

G12219954

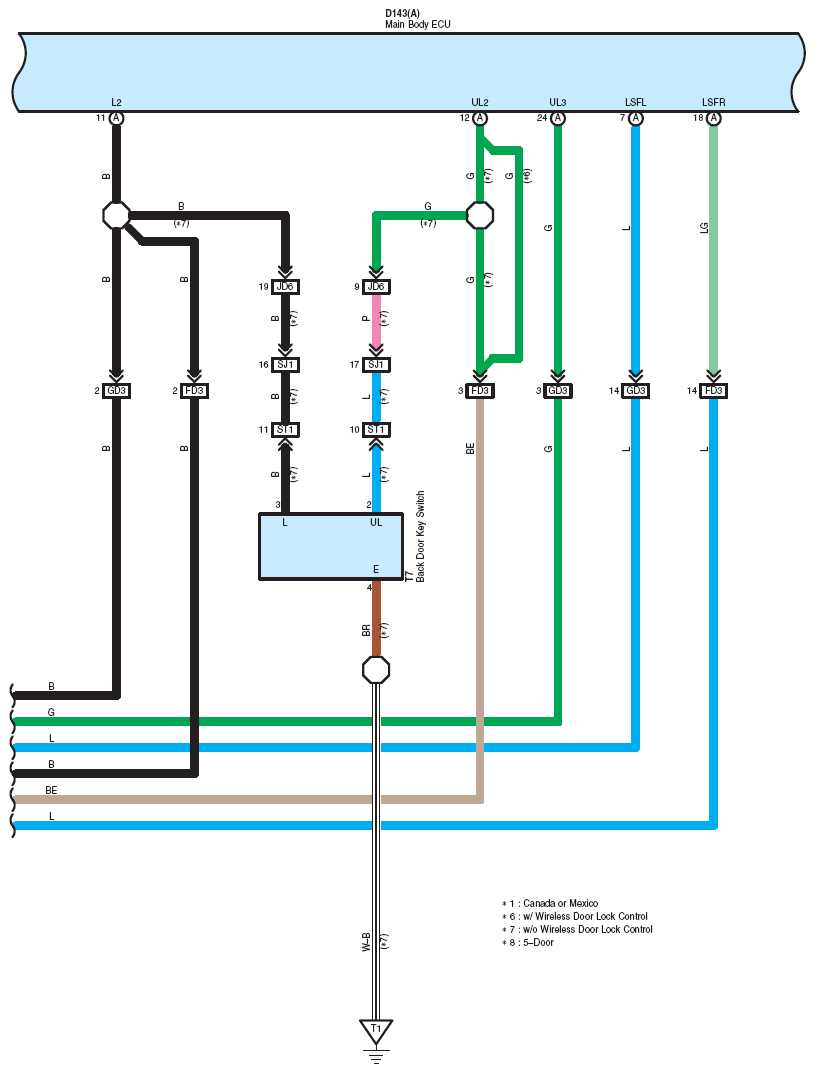

Fig 4: Door Lock Control - Hatchback (4 Of 6)

G12219955

Fig 5: Door Lock Control - Hatchback (5 Of 6)

G12219956

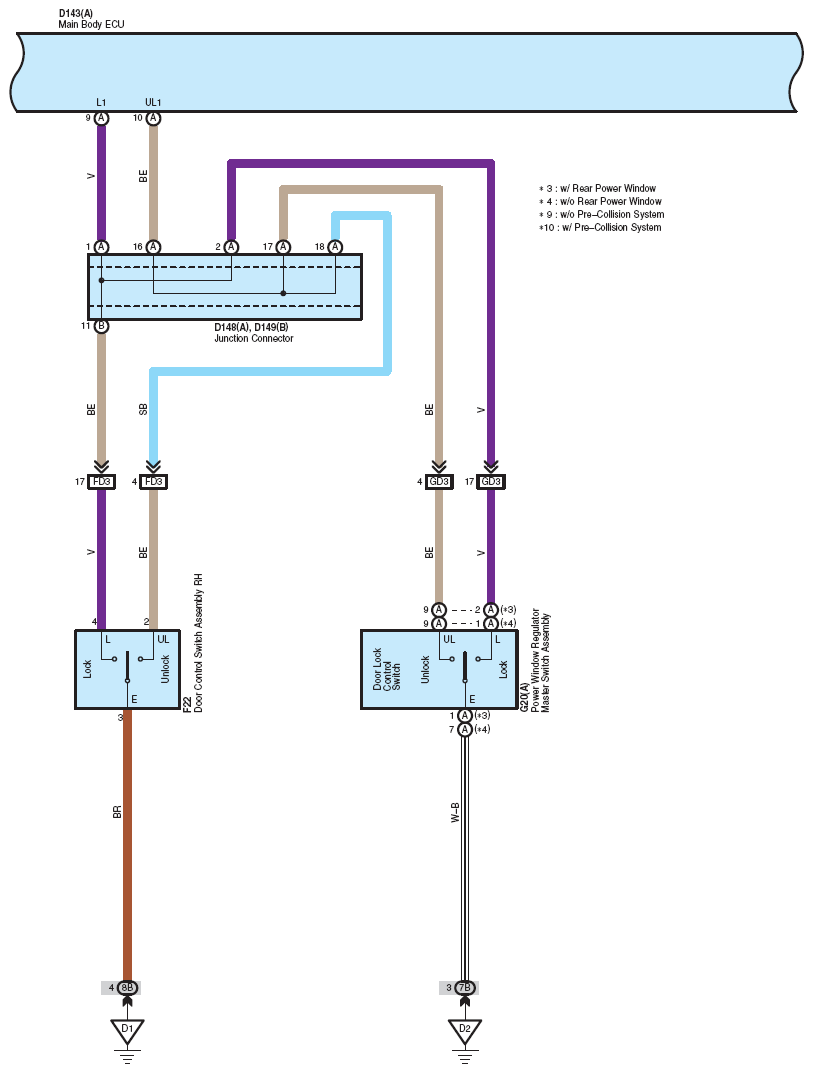

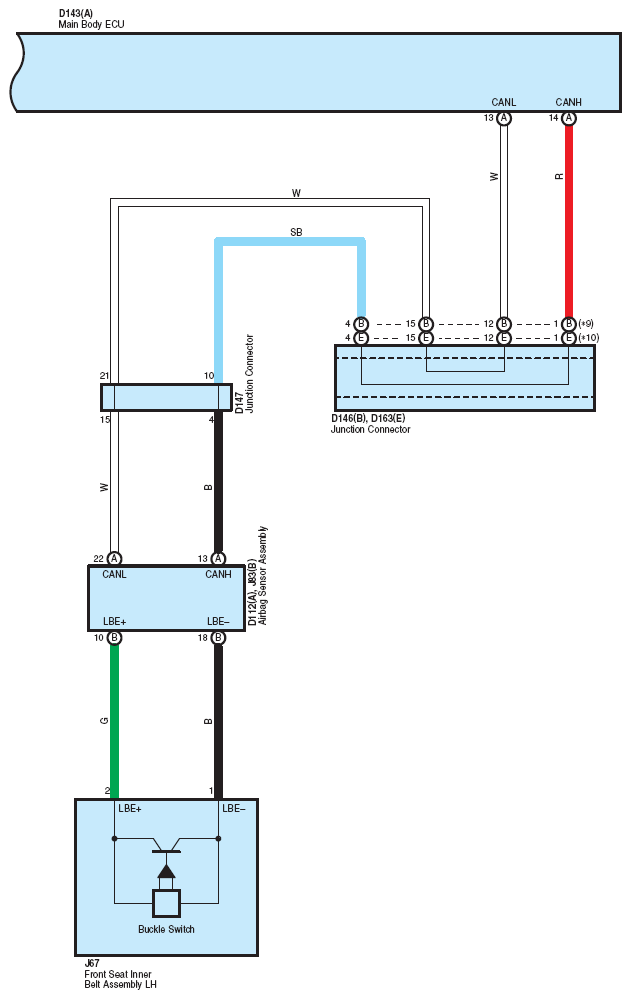

Fig 6: Door Lock Control - Hatchback (6 Of 6)

G12219957
