Components [08/2015 - 09/2019]

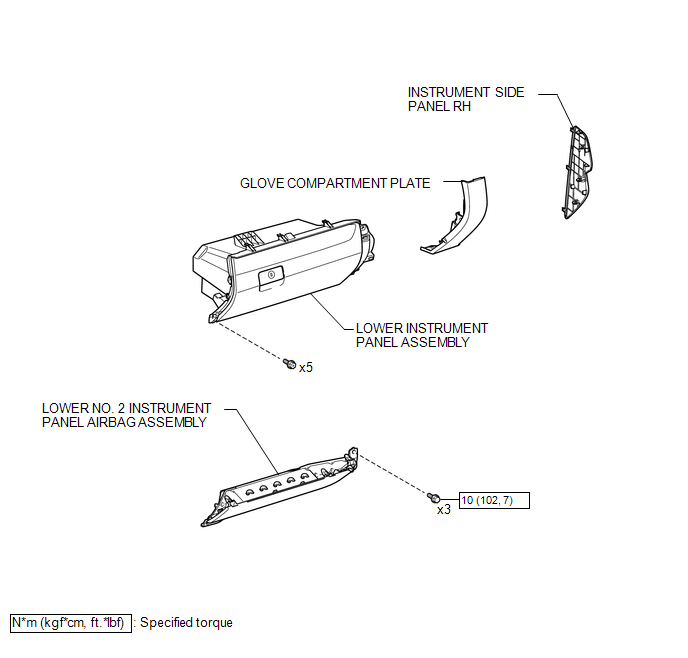

Fig 1: ECM Replacement Components With Torque Specifications [08/2015 - 09/2019] (1 Of 2)
GTY707762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

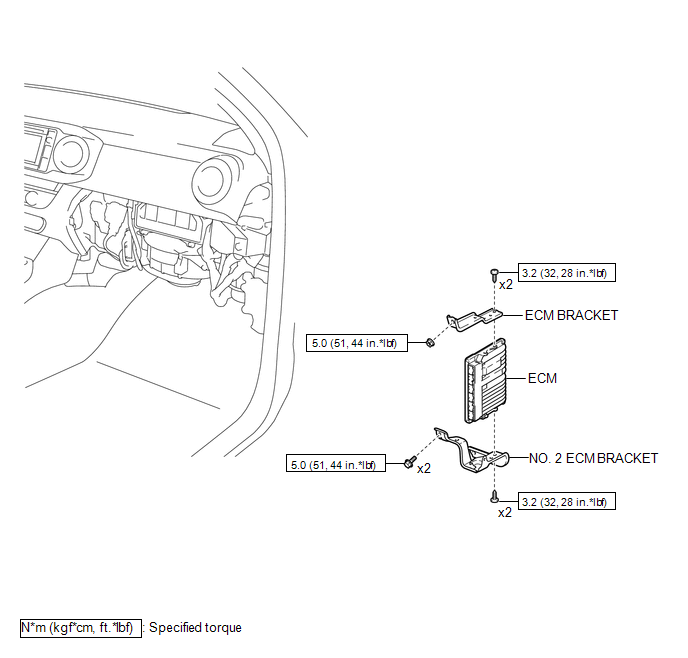

Fig 2: ECM Replacement Components With Torque Specifications [08/2015 - 09/2019] (2 Of 2)
GTY738587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
