System Diagrams

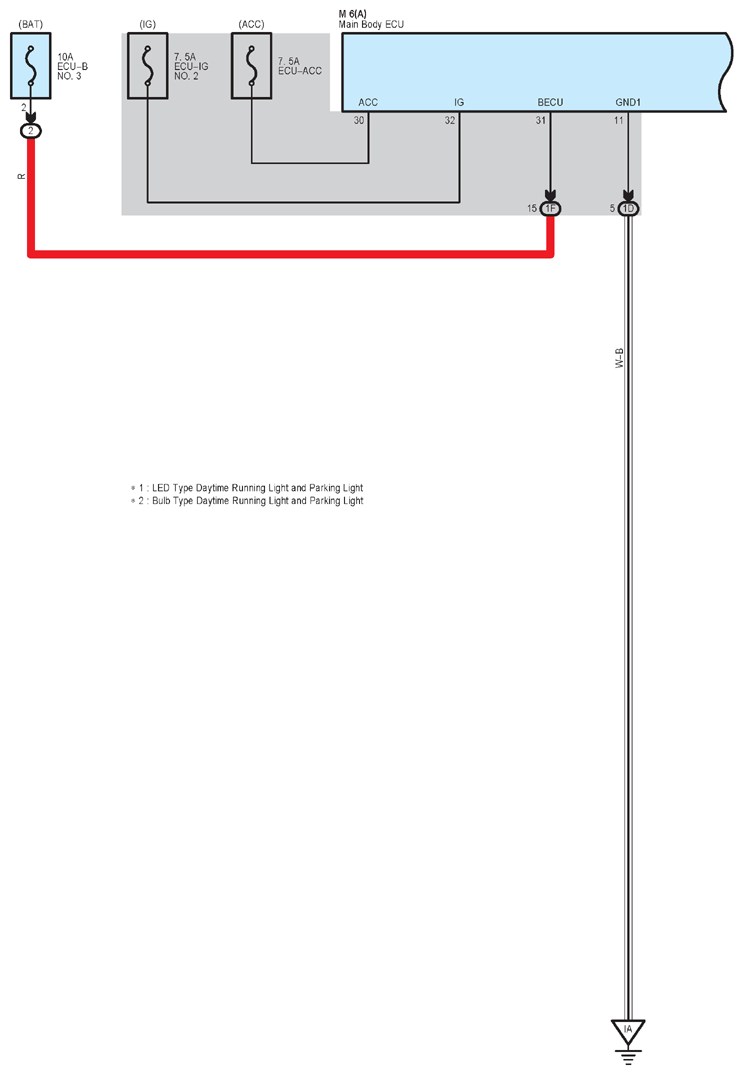

Fig 1: Taillight (1 Of 5)
G12223264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

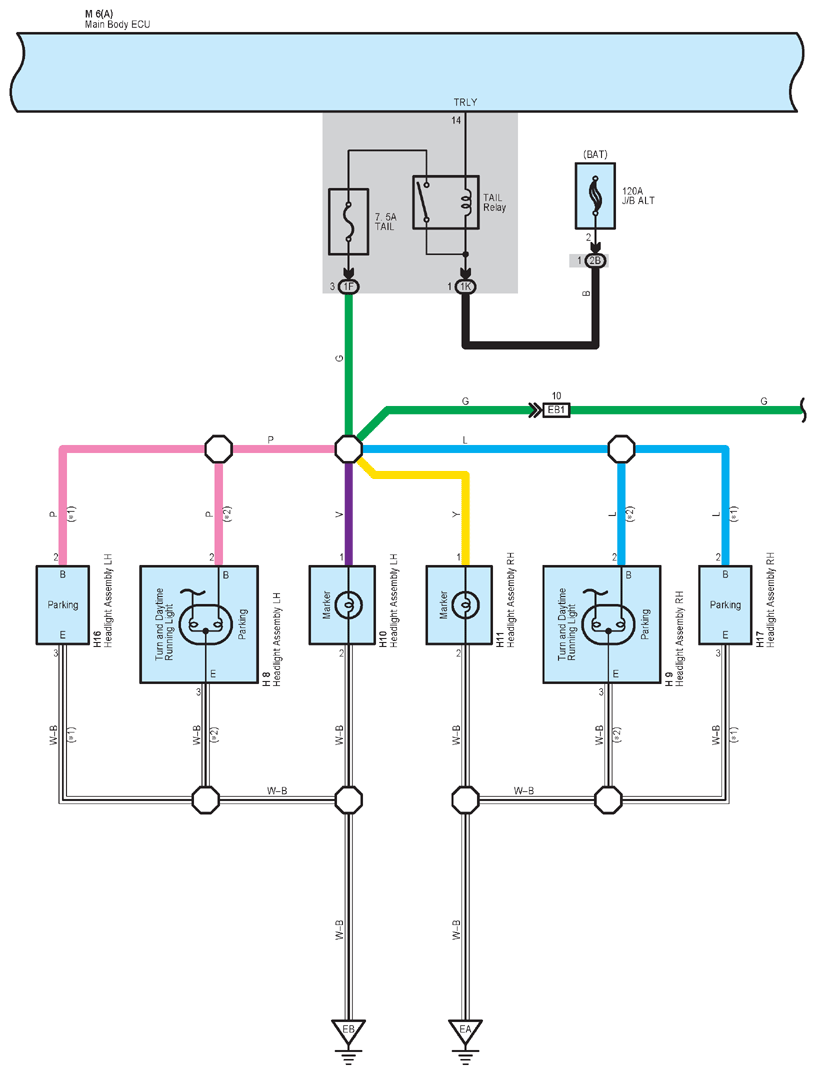

Fig 2: Taillight (2 Of 5)
G12223265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

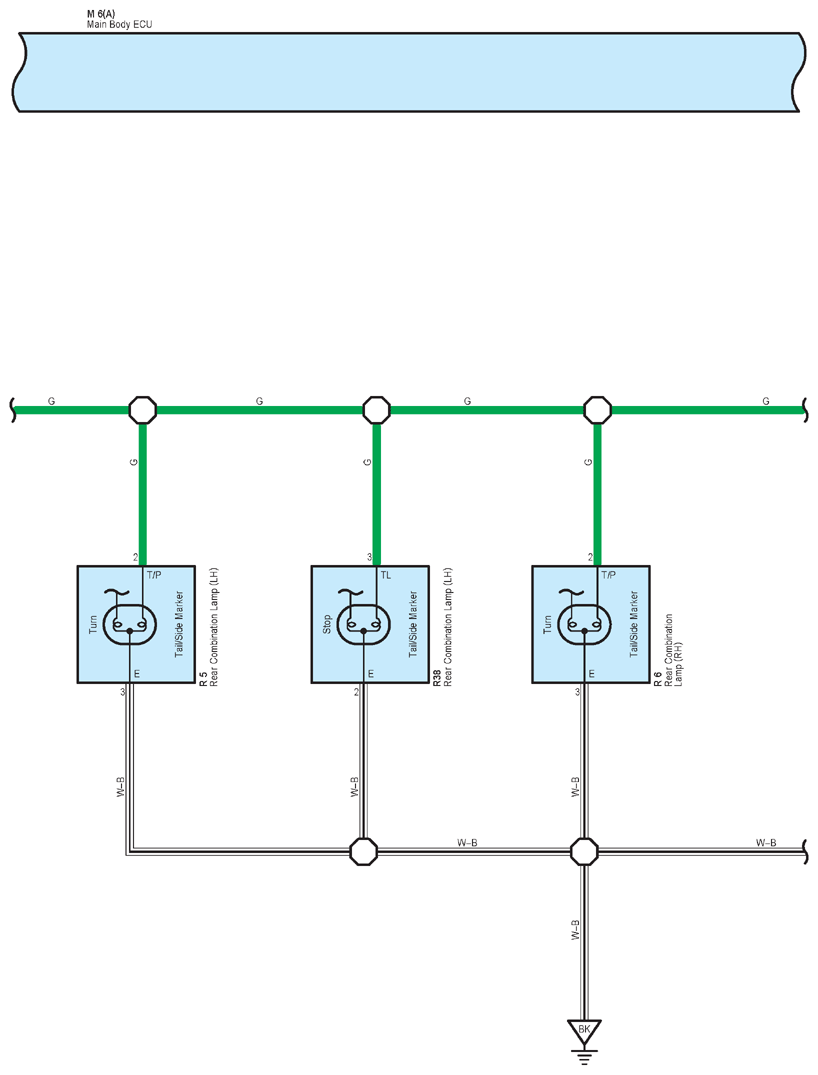

Fig 3: Taillight (3 Of 5)
G12223266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

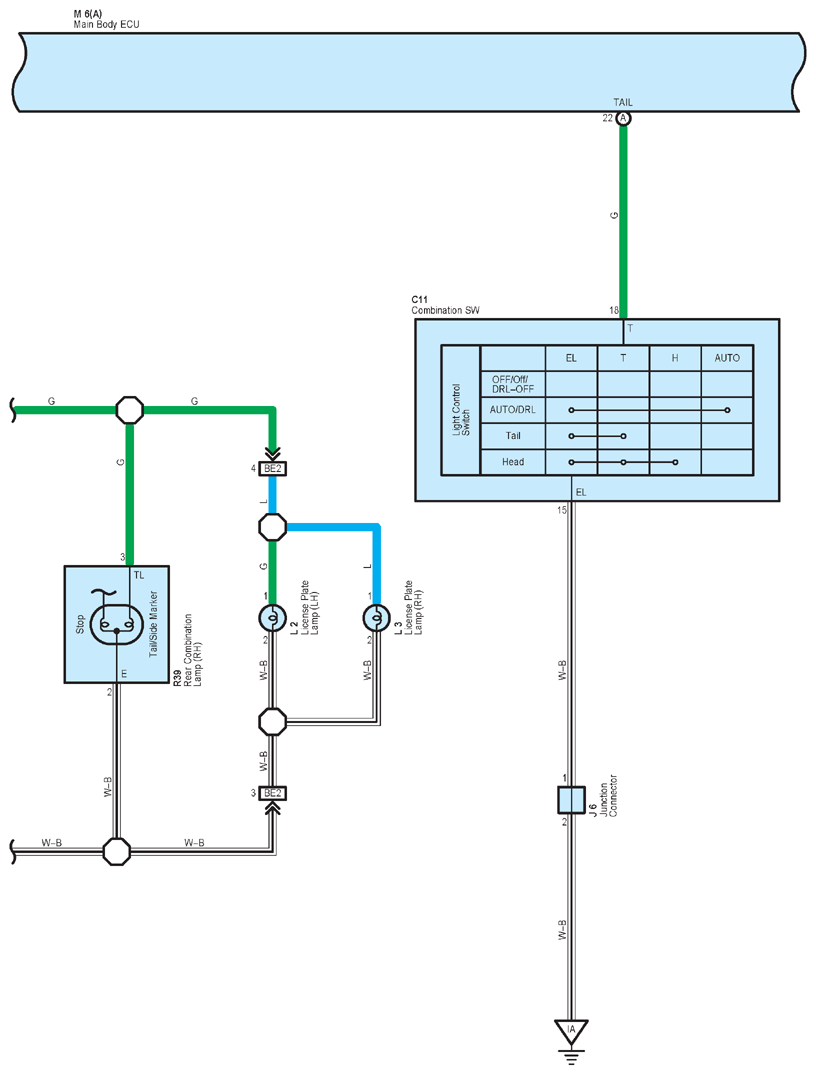

Fig 4: Taillight (4 Of 5)
G12223267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

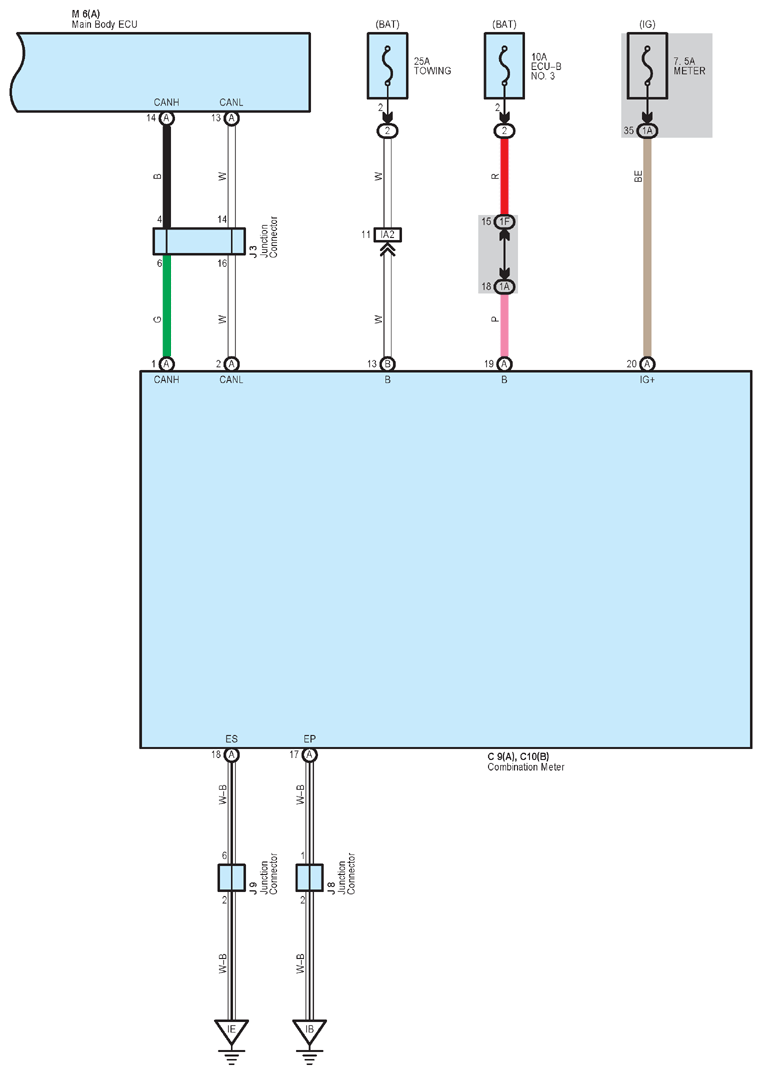

Fig 5: Taillight (5 Of 5)
G12223268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
