Home >> Toyota >> 2017 >> Tacoma TRD Pro, Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Starting (W/O Smart Key System) >> System Diagrams

System Diagrams

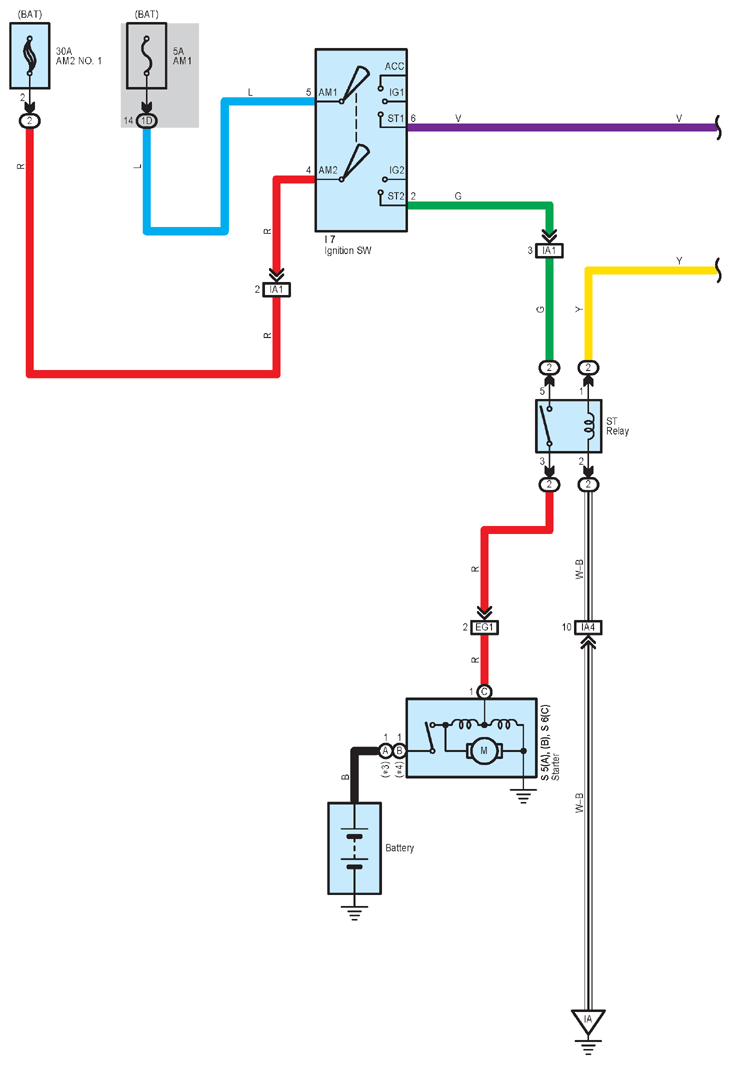

Fig 1: Starting (W/O Smart Key System) (1 Of 3)
G12223244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

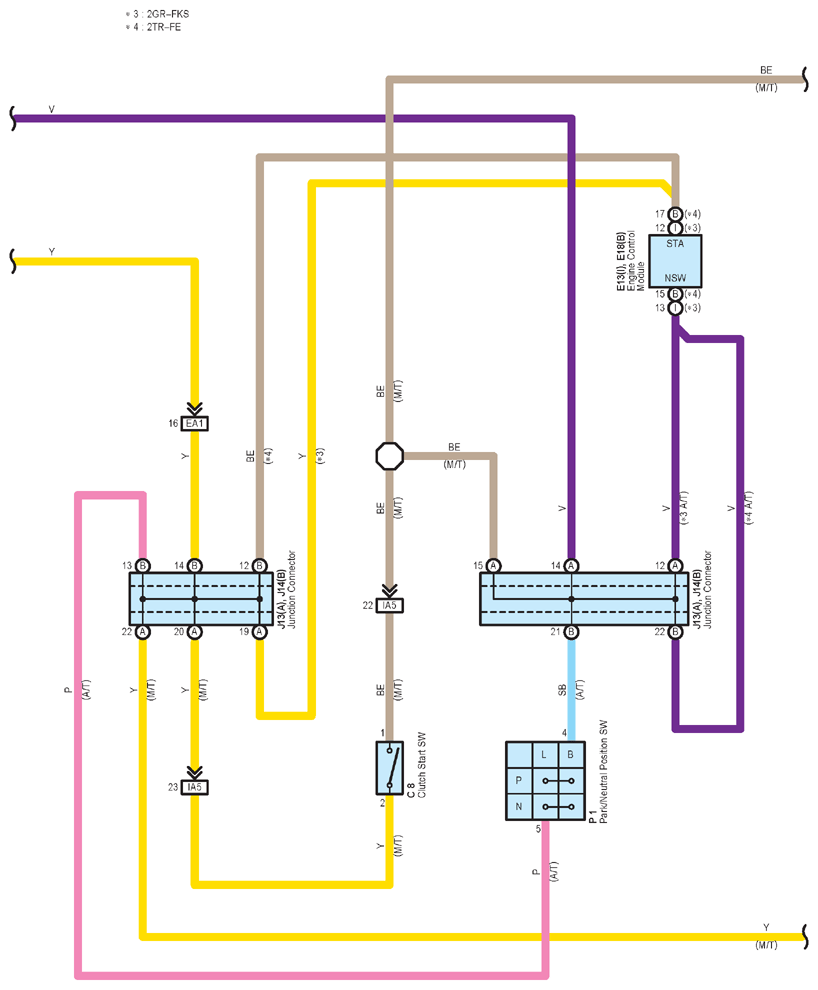

Fig 2: Starting (W/O Smart Key System) (2 Of 3)
G12223245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

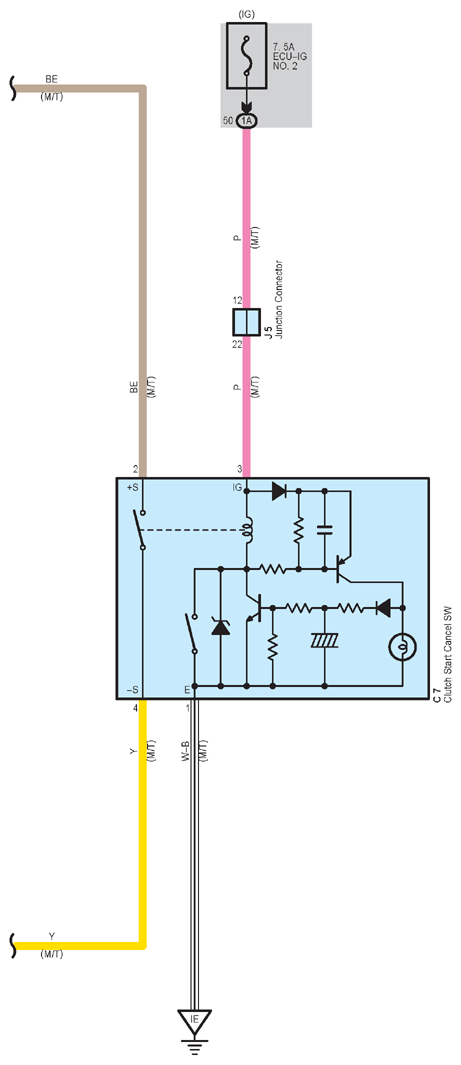

Fig 3: Starting (W/O Smart Key System) (3 Of 3)
G12223246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
