System Diagrams

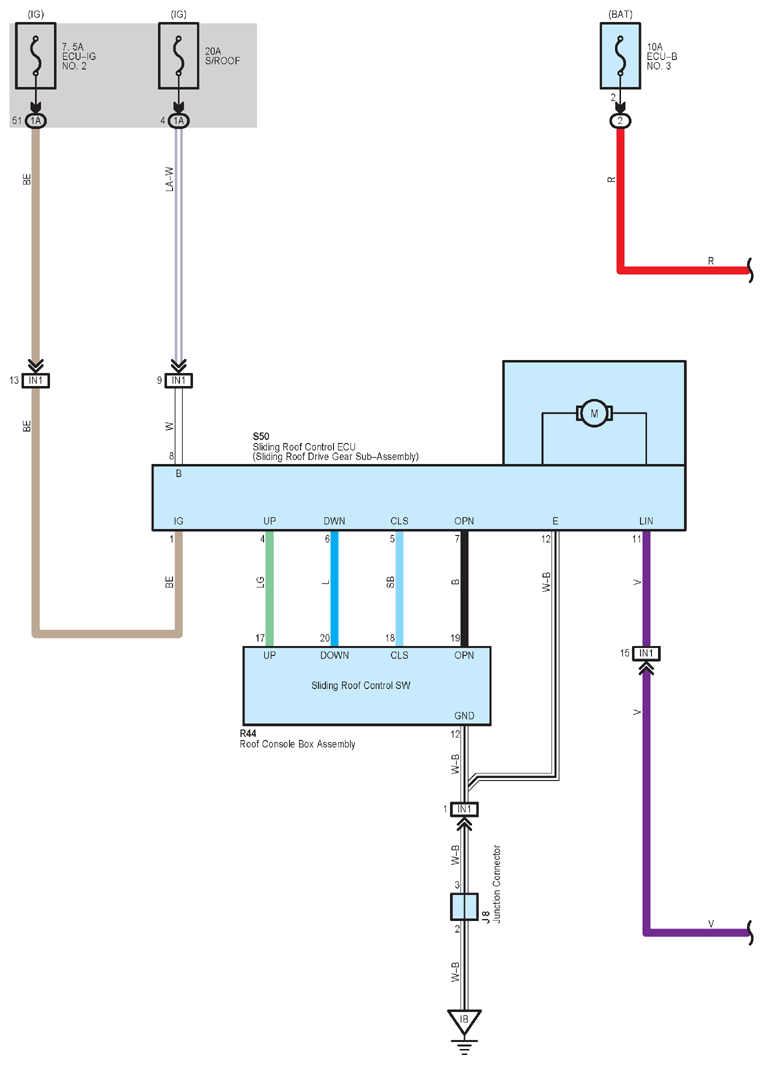

Fig 1: Sliding Roof (1 Of 3)
G12223229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Sliding Roof (2 Of 3)
G12223230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Sliding Roof (3 Of 3)
G12223231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
