OEM System Circuits: SRS: Connectors

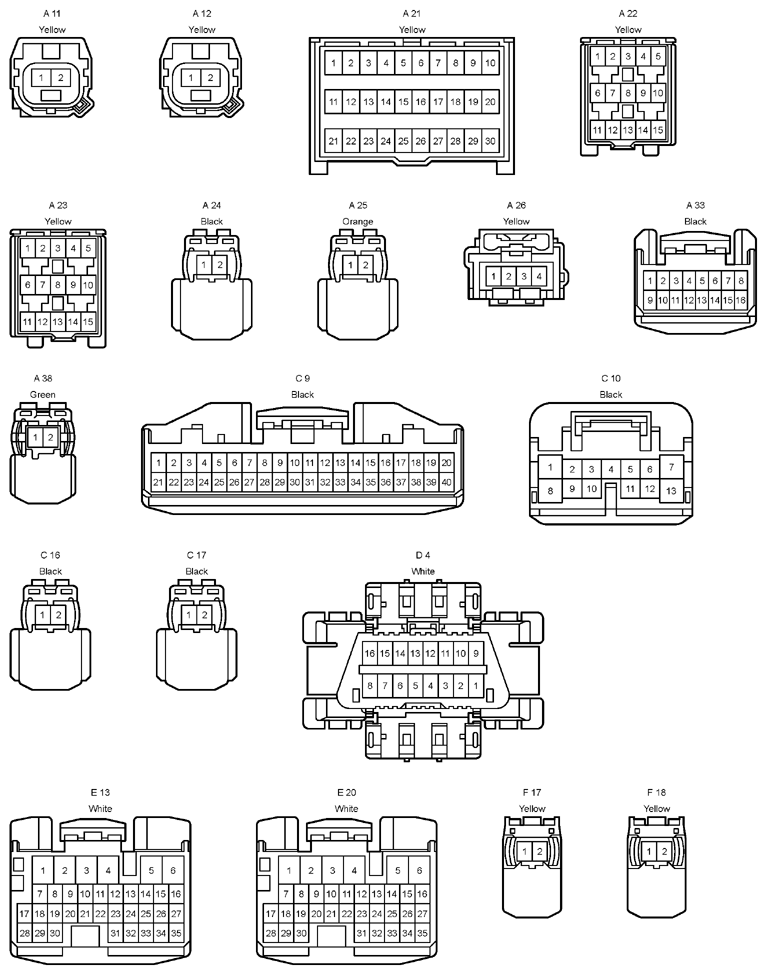

Fig 1: Connectors (1 Of 3)
G12223241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

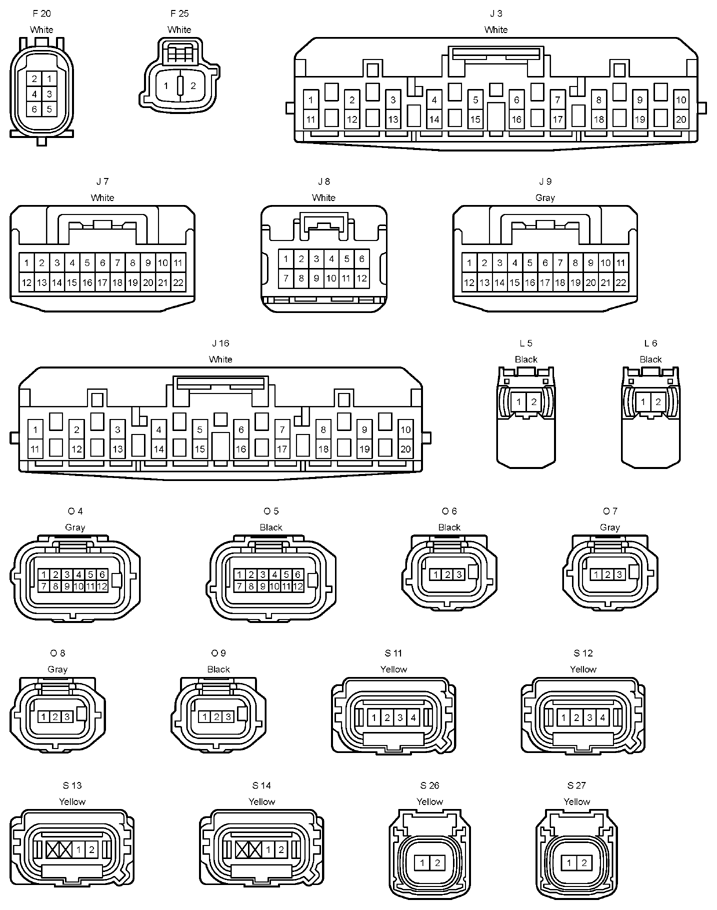

Fig 2: Connectors (2 Of 3)
G12223242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

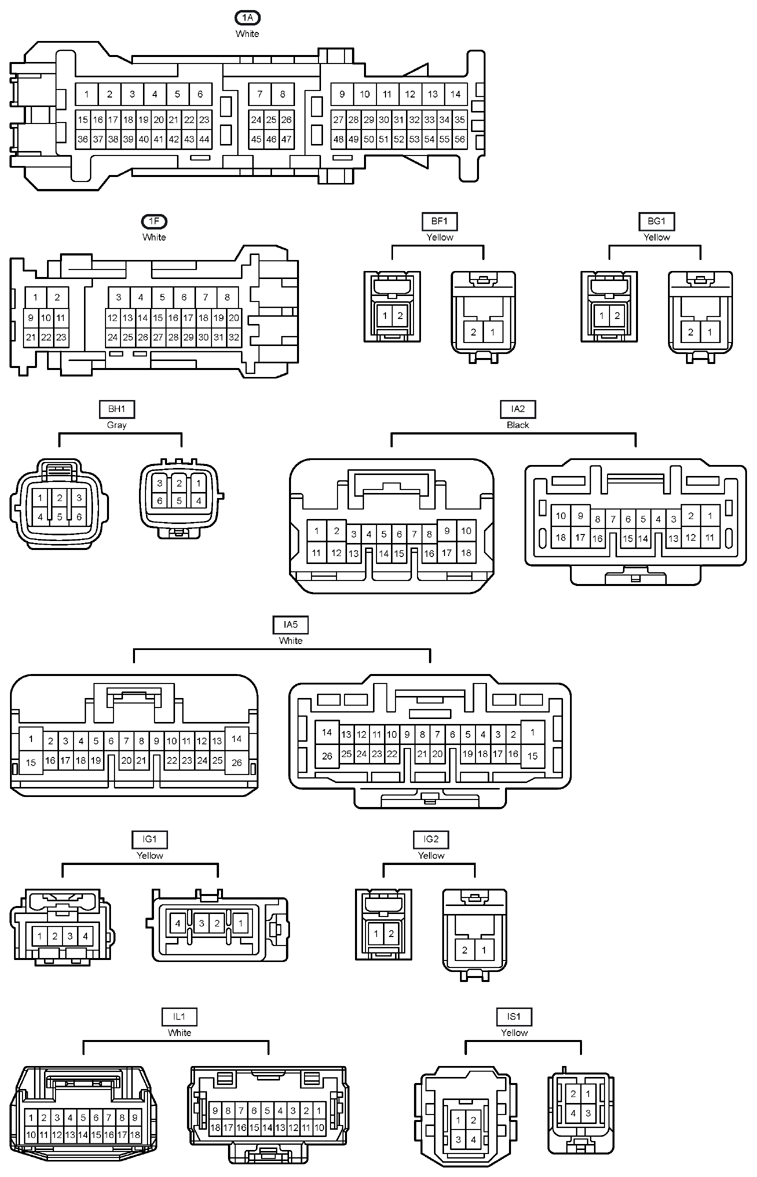

Fig 3: Connectors (3 Of 3)
G12223243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
