System Diagrams

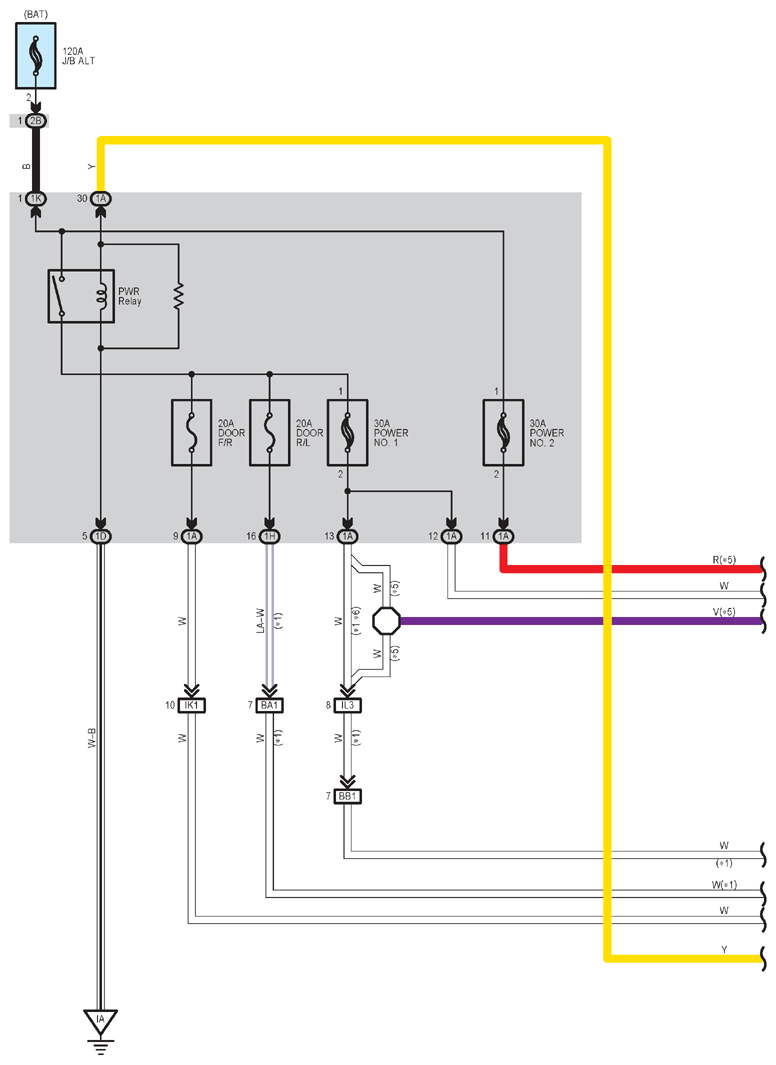

Fig 1: Power Window (W/O Jam Protection) (1 Of 5)
G12223157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

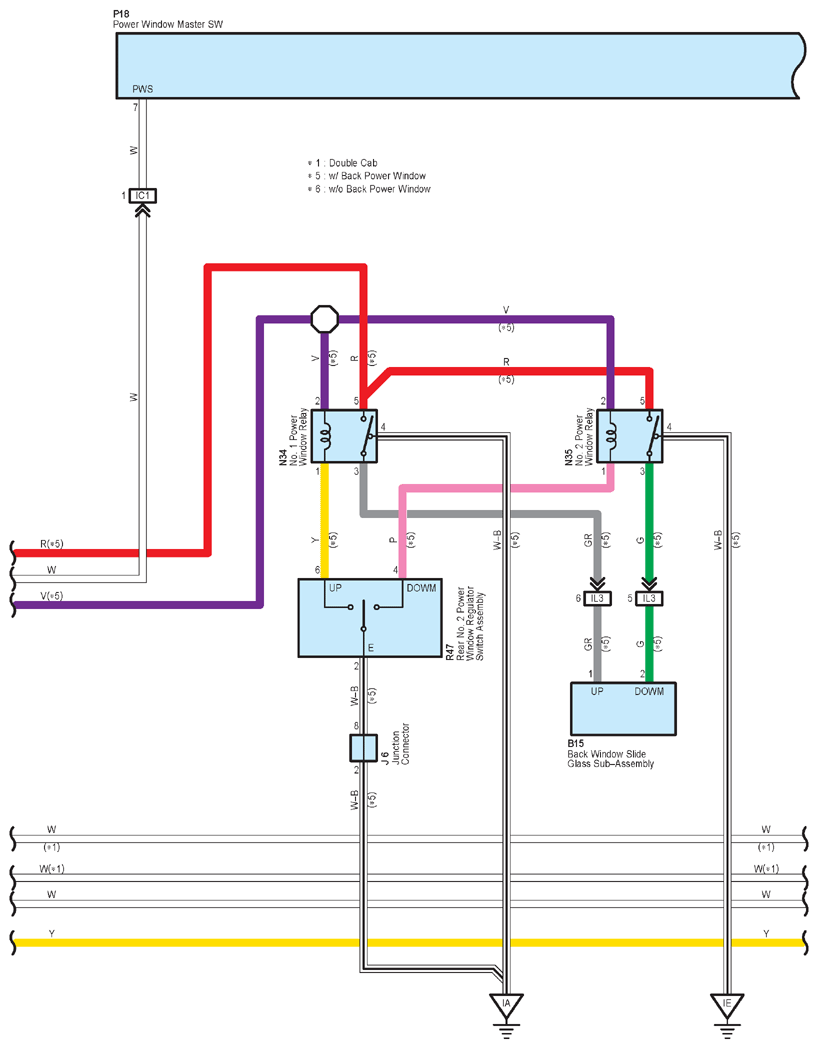

Fig 2: Power Window (W/O Jam Protection) (2 Of 5)
G12223158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

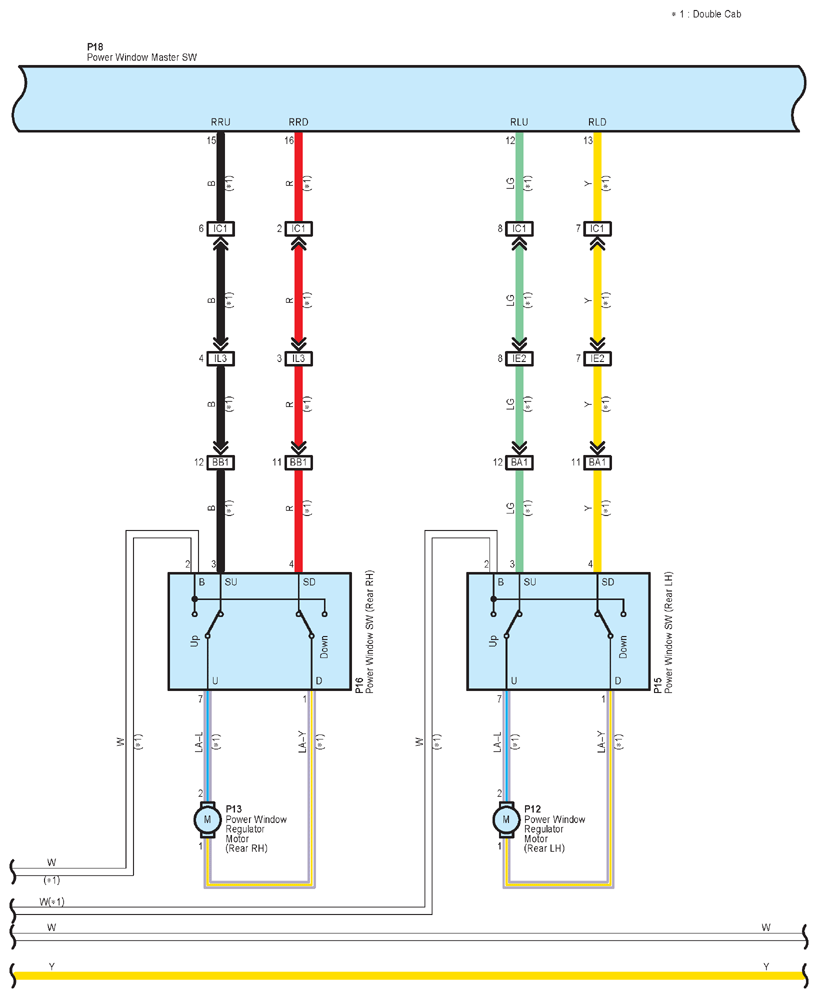

Fig 3: Power Window (W/O Jam Protection) (3 Of 5)
G12223159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

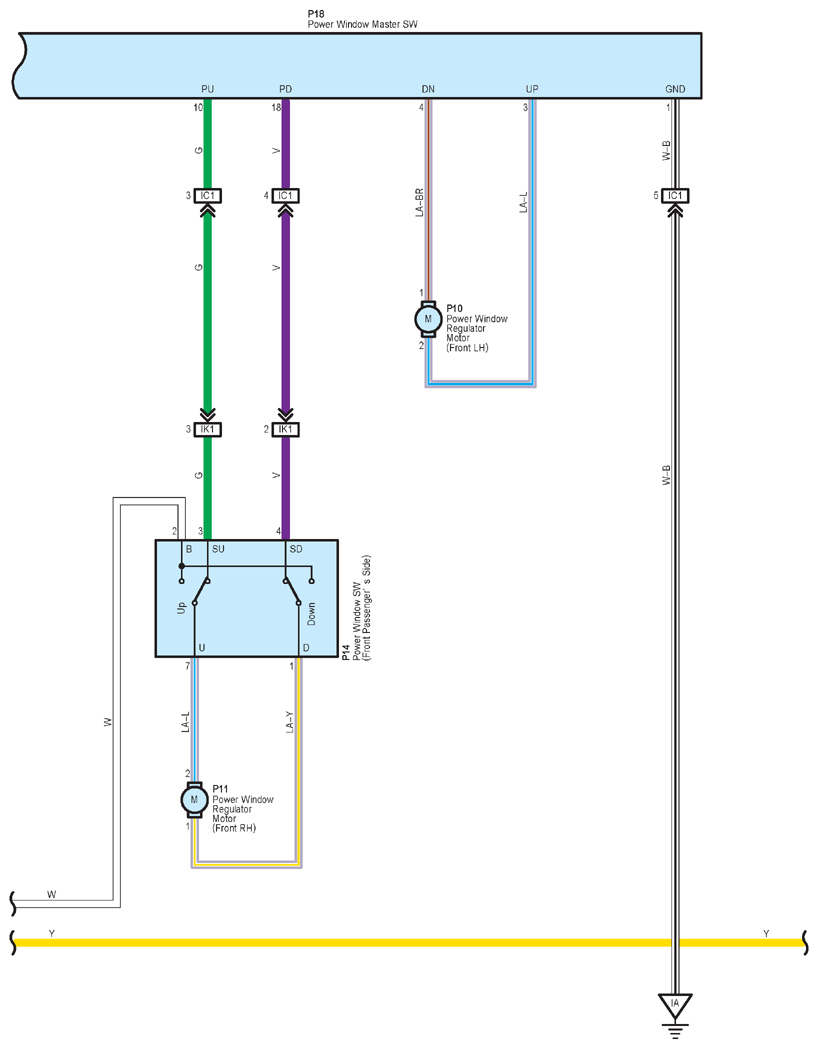

Fig 4: Power Window (W/O Jam Protection) (4 Of 5)
G12223160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

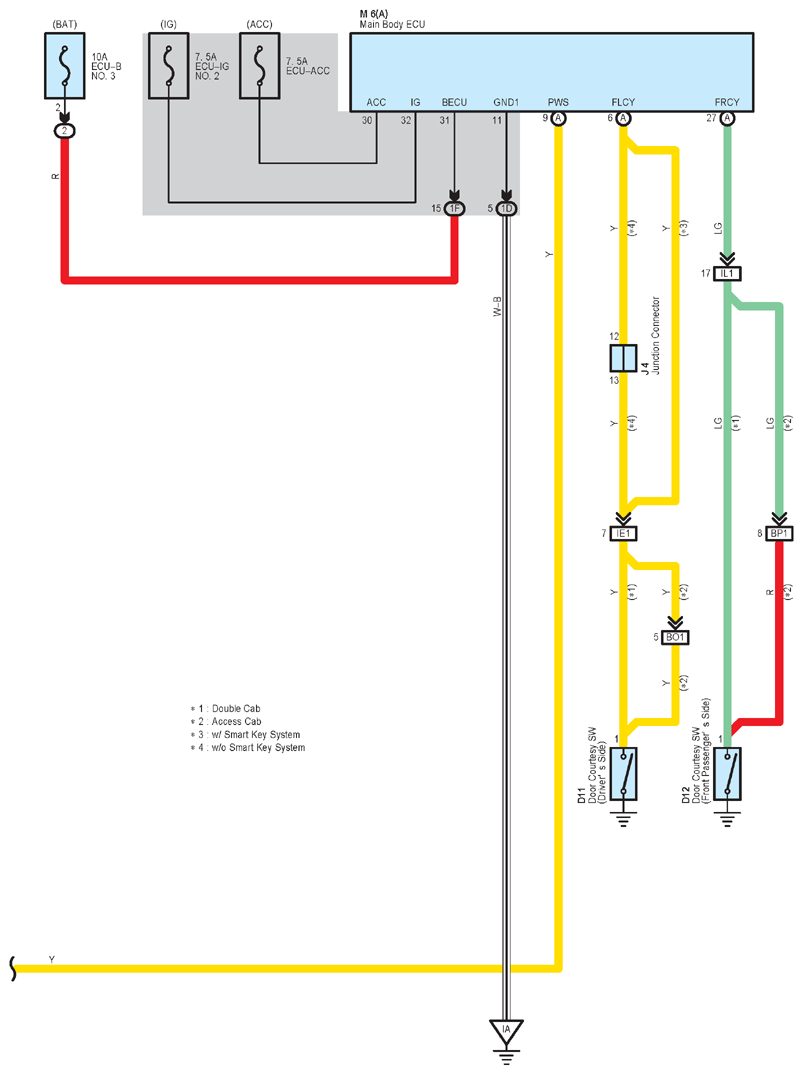

Fig 5: Power Window (W/O Jam Protection) (5 Of 5)
G12223161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
