System Diagrams

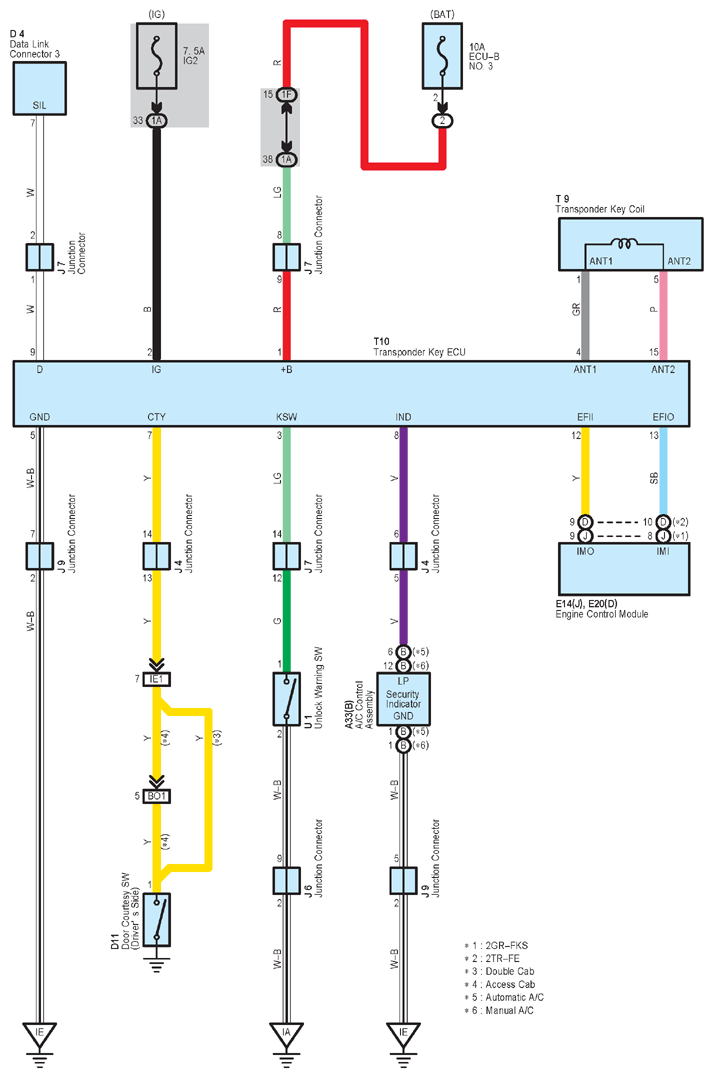

Fig 1: Immobilizer System (W/O Smart Key System)

G12223050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
