System Diagrams

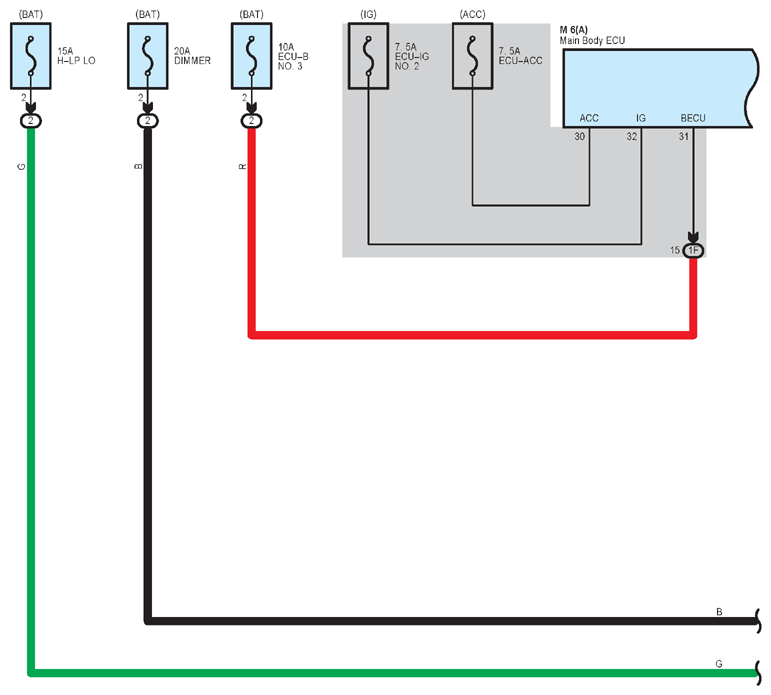

Fig 1: Headlight (1 Of 5)
G12223070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

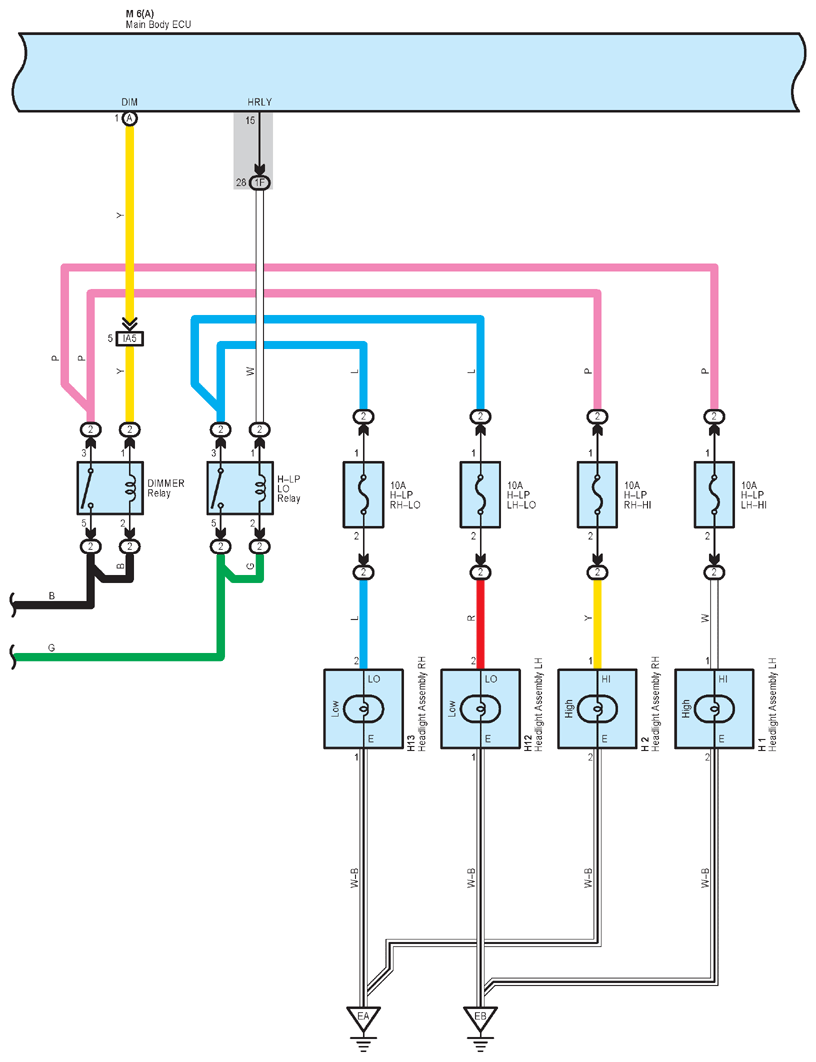

Fig 2: Headlight (2 Of 5)
G12223071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

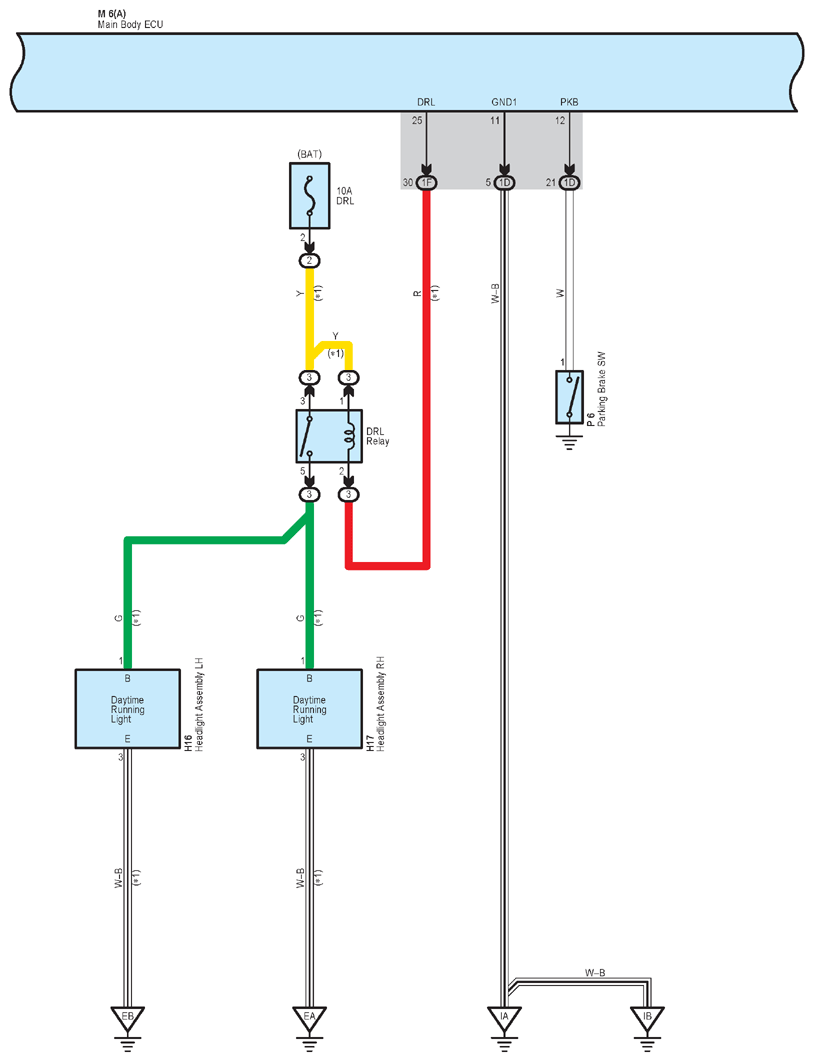

Fig 3: Headlight (3 Of 5)
G12223072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

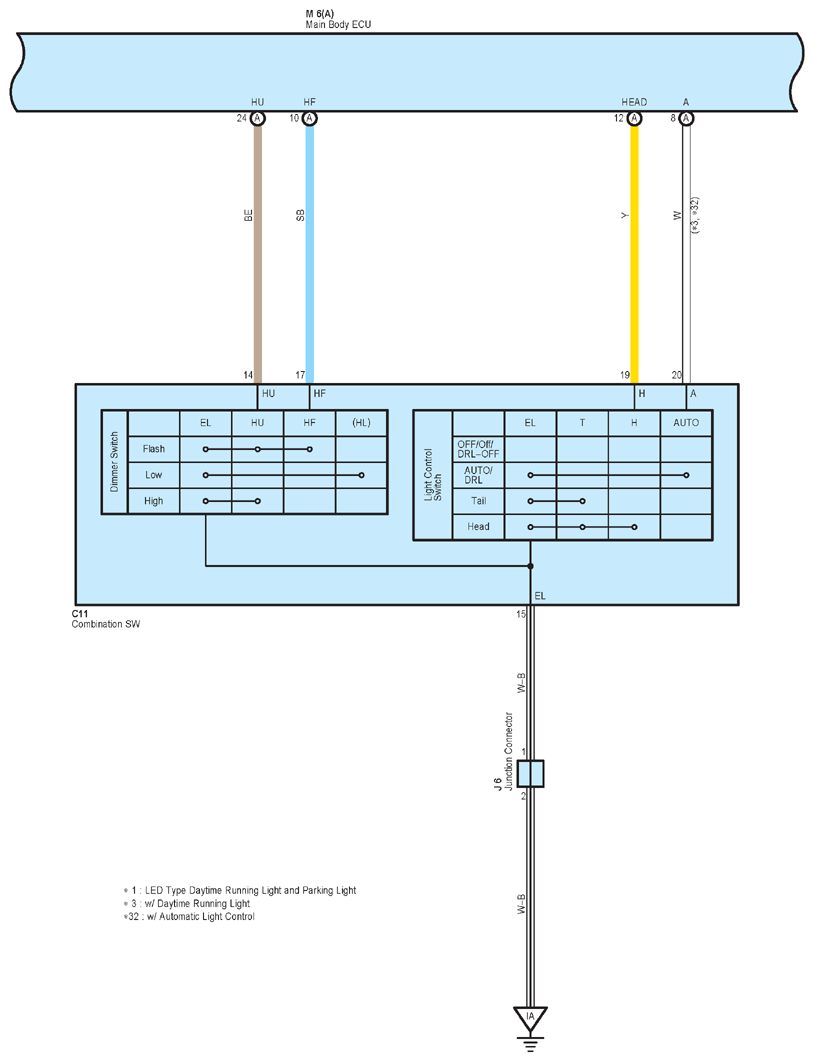

Fig 4: Headlight (4 Of 5)
G12223073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

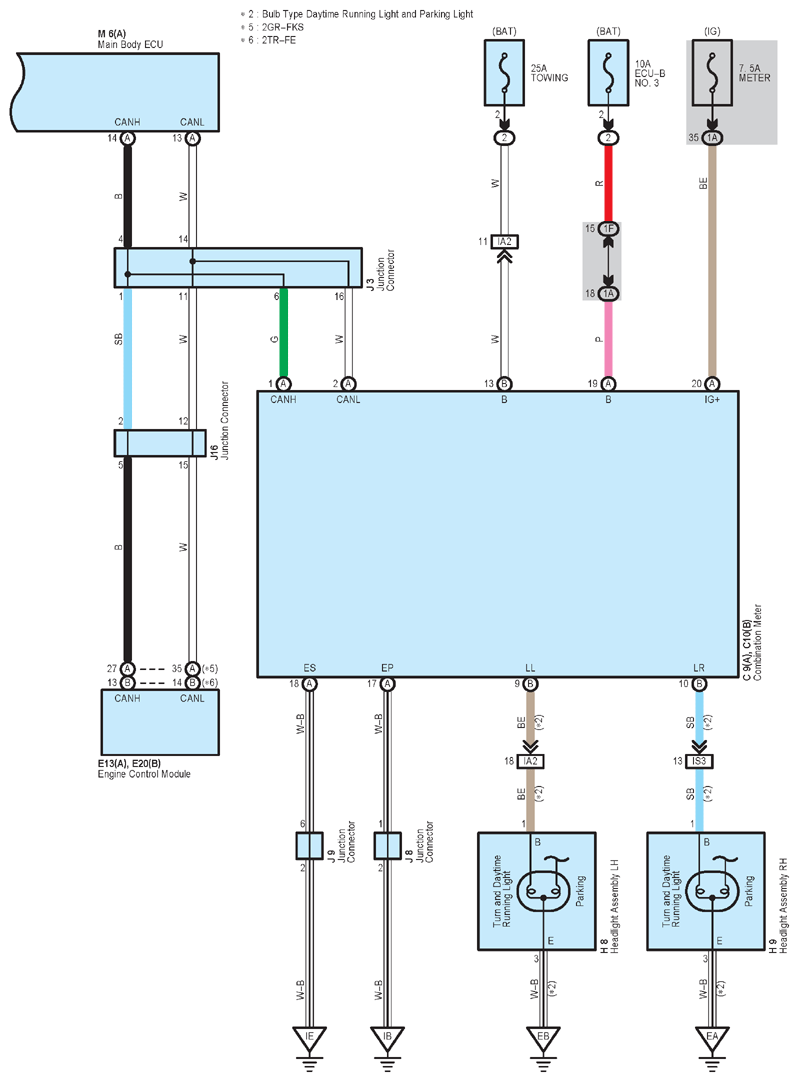

Fig 5: Headlight (5 Of 5)
G12223074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
