Engine Control (2TR-FE): Connectors

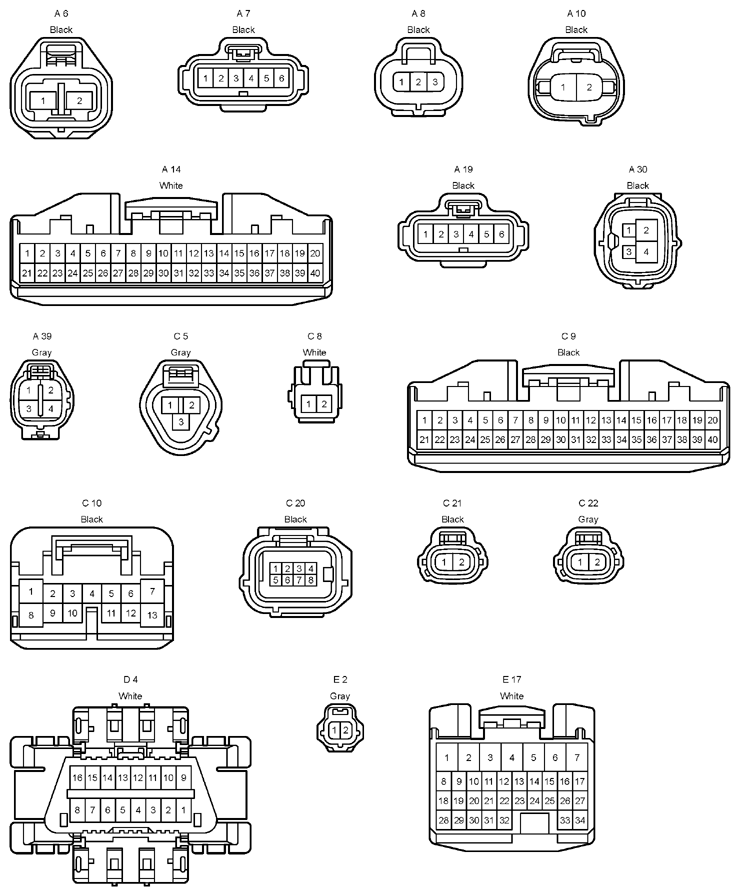

Fig 1: Connectors (1 Of 5)
G12223045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

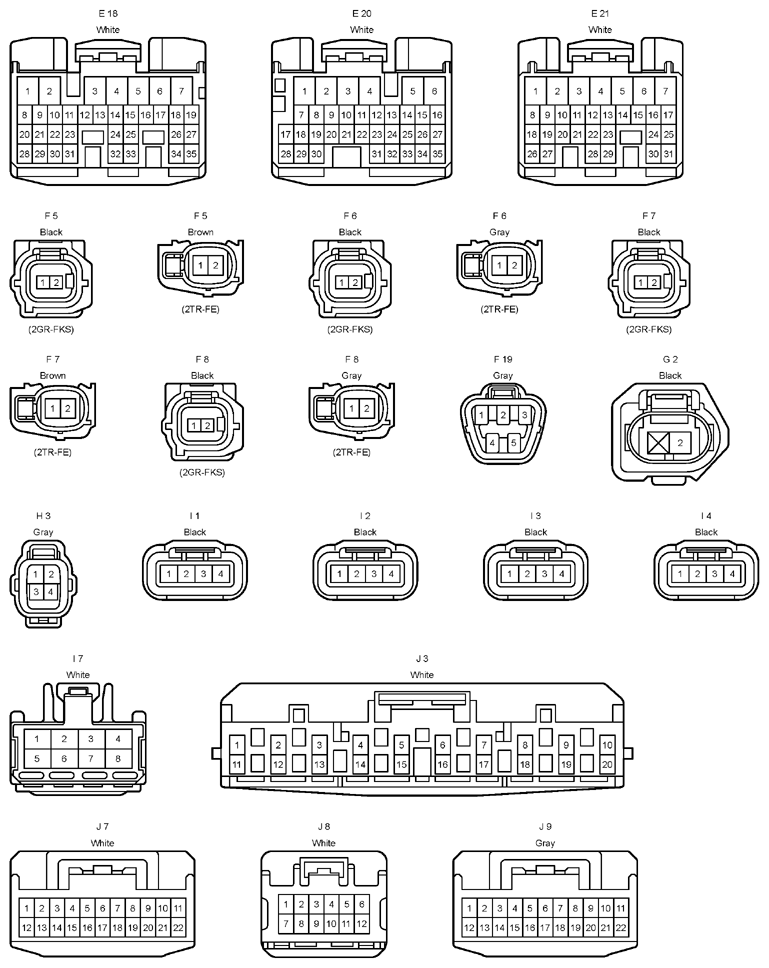

Fig 2: Connectors (2 Of 5)
G12223046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

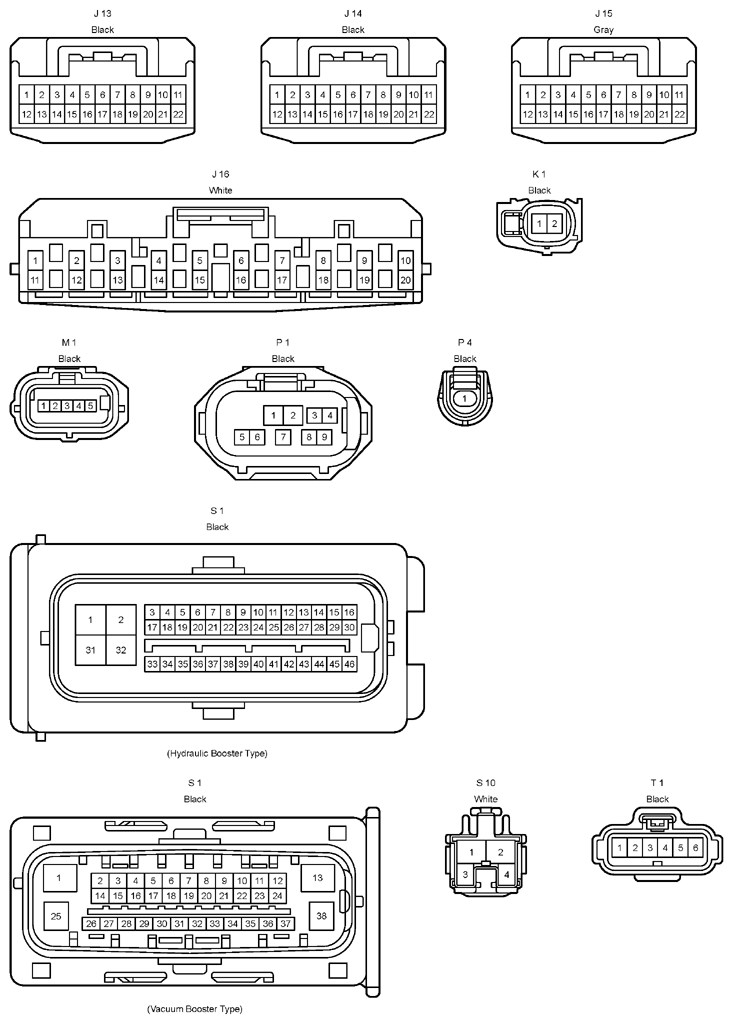

Fig 3: Connectors (3 Of 5)
G12223047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

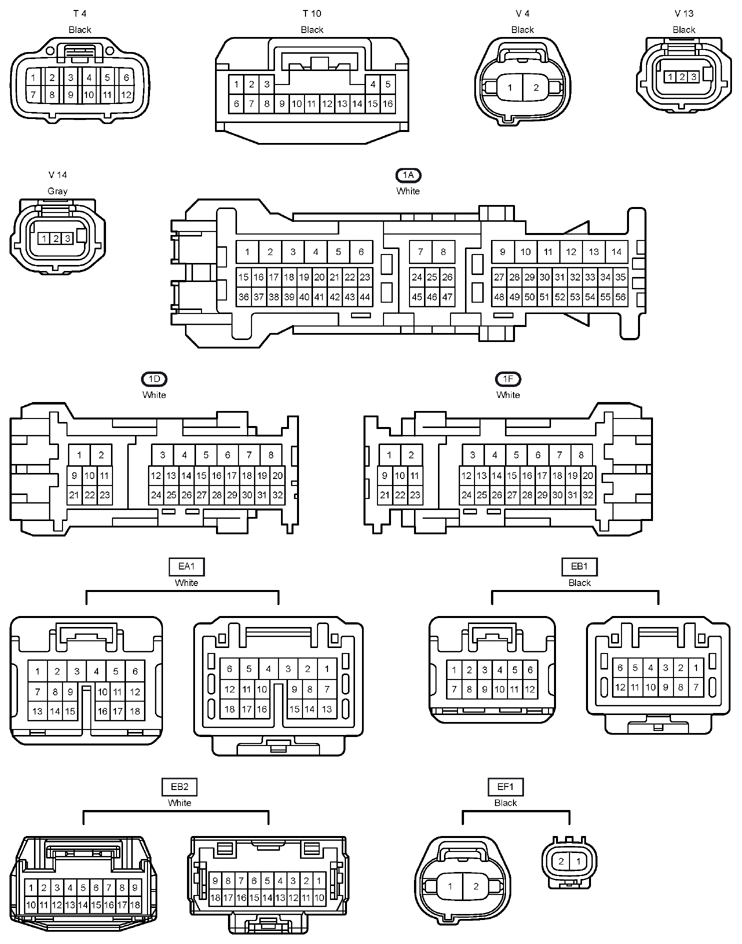

Fig 4: Connectors (4 Of 5)
G12223048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

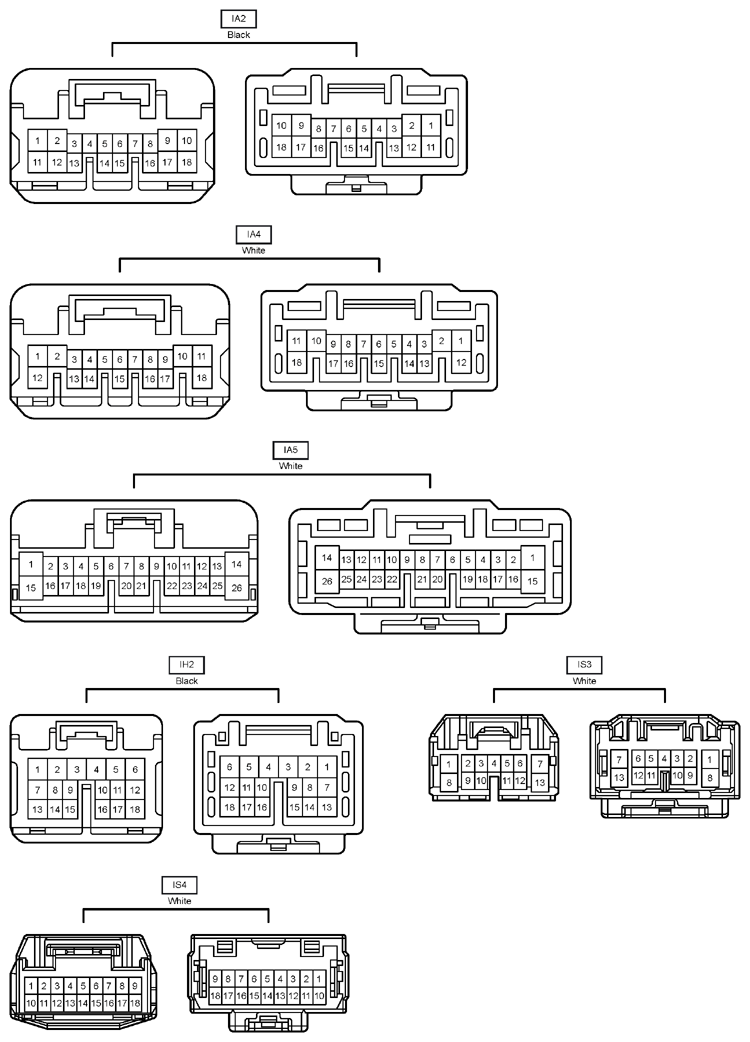

Fig 5: Connectors (5 Of 5)
G12223049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
