System Diagrams

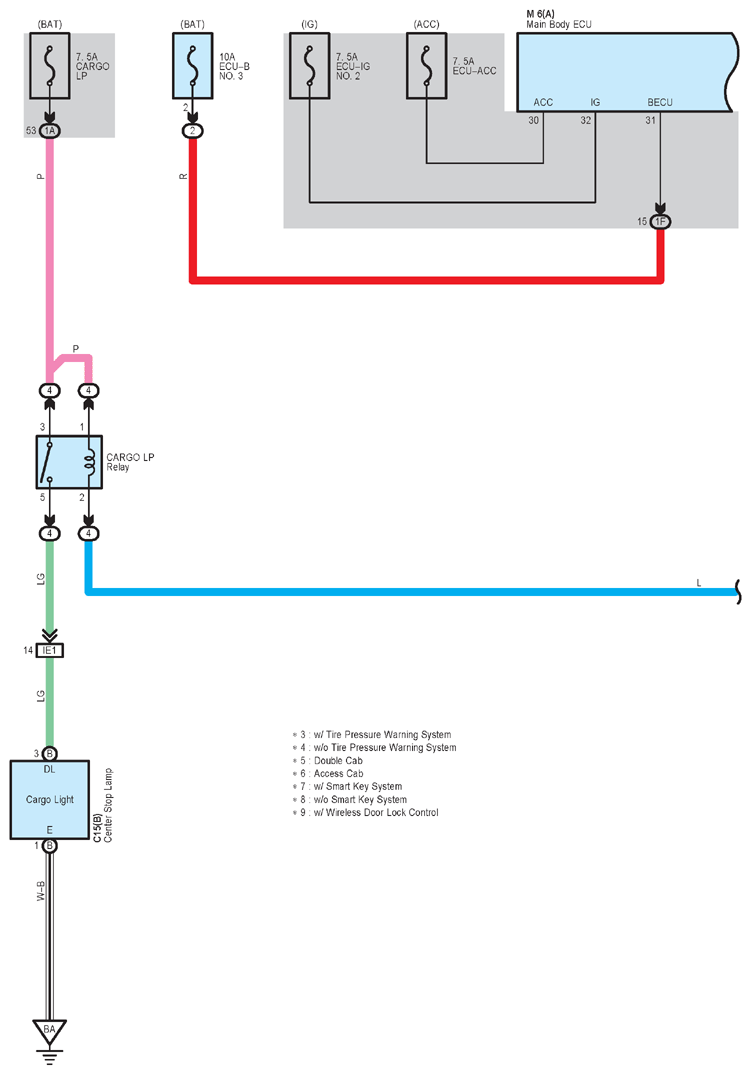

Fig 1: Cargo Light (1 Of 4)
G12222936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

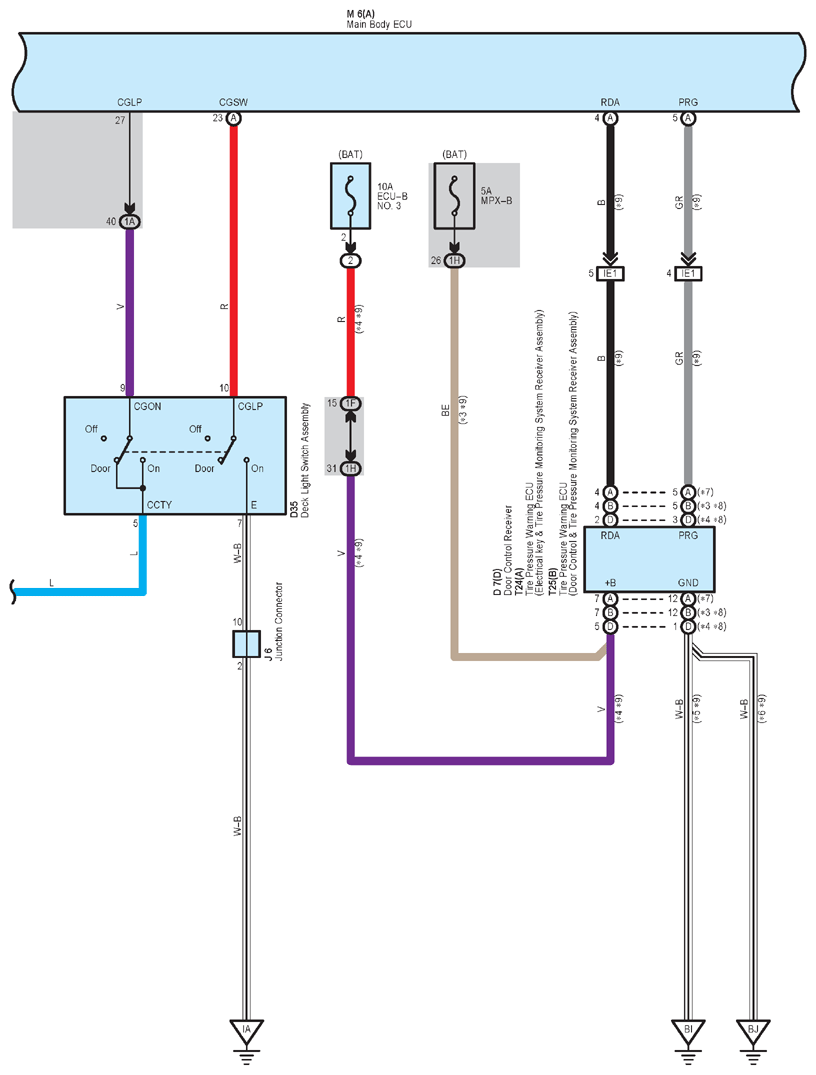

Fig 2: Cargo Light (2 Of 4)
G12222937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

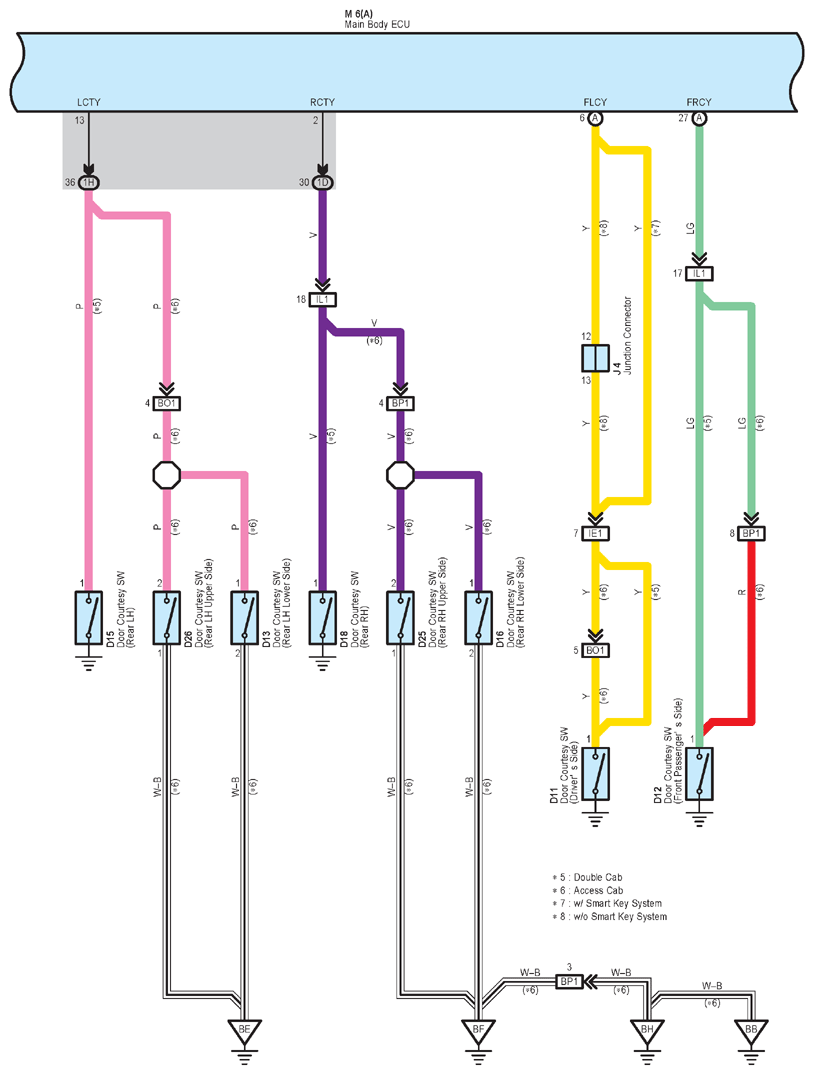

Fig 3: Cargo Light (3 Of 4)
G12222938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

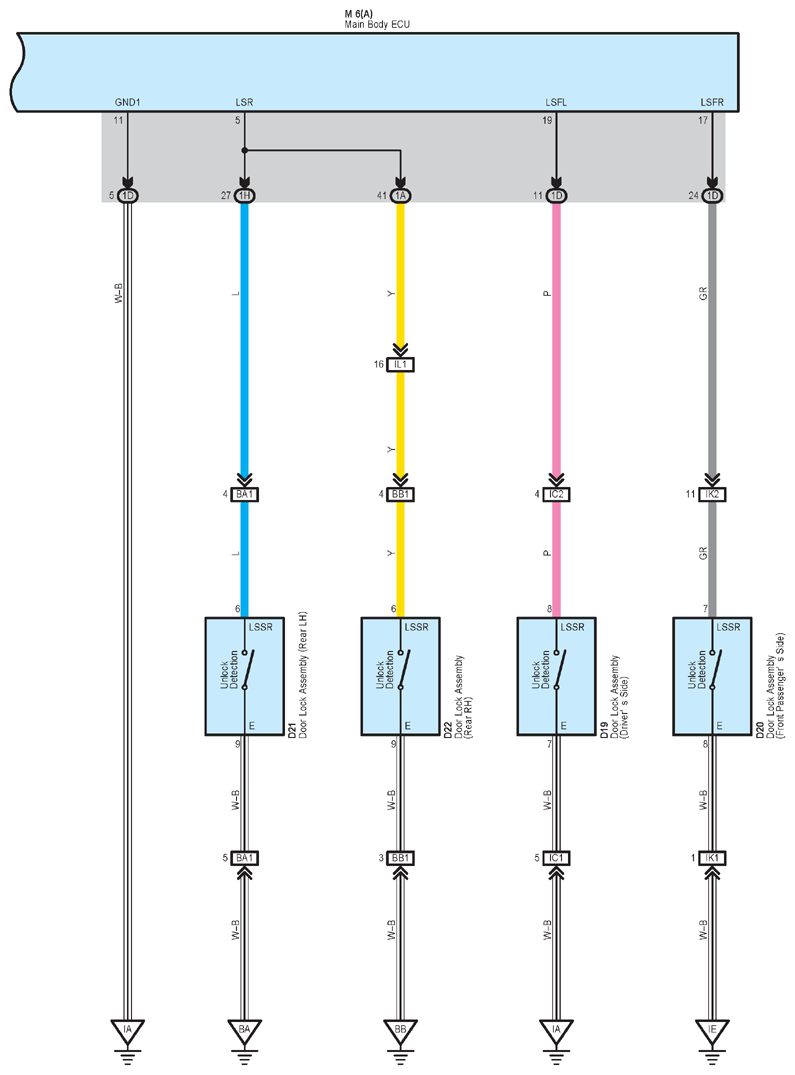

Fig 4: Cargo Light (4 Of 4)
G12222939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
