Home >> Toyota >> 2017 >> Tacoma Limited, RWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Combination Meter >> System Diagrams

System Diagrams

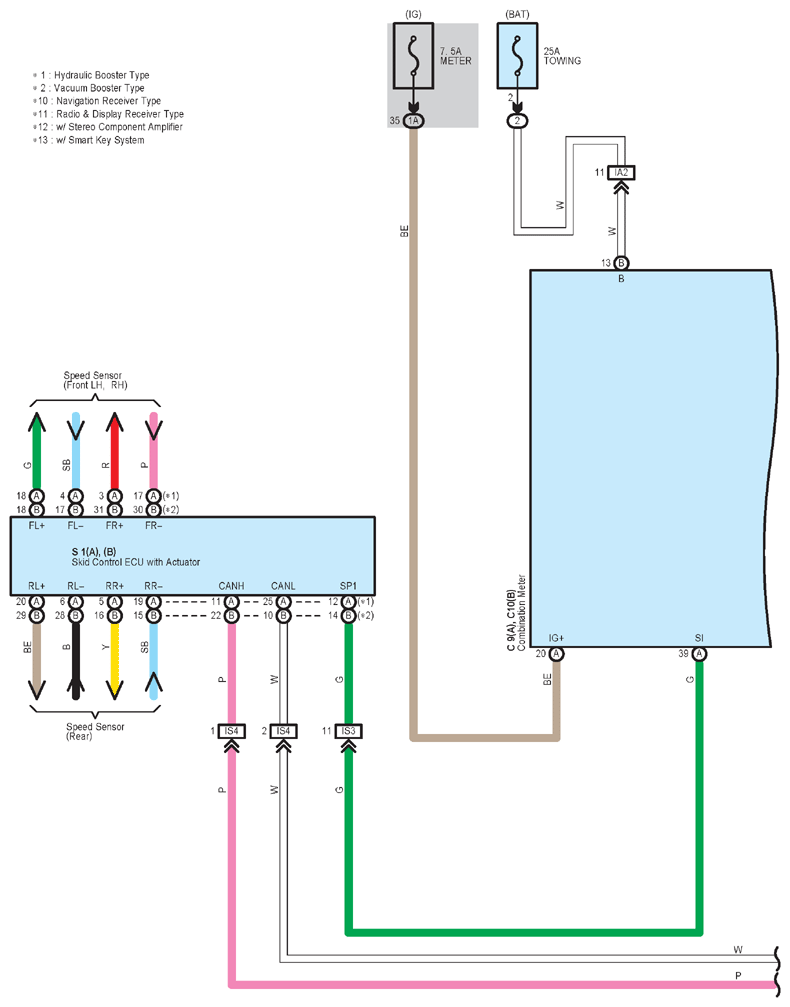

Fig 1: Combination Meter (1 Of 6)
G12222943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

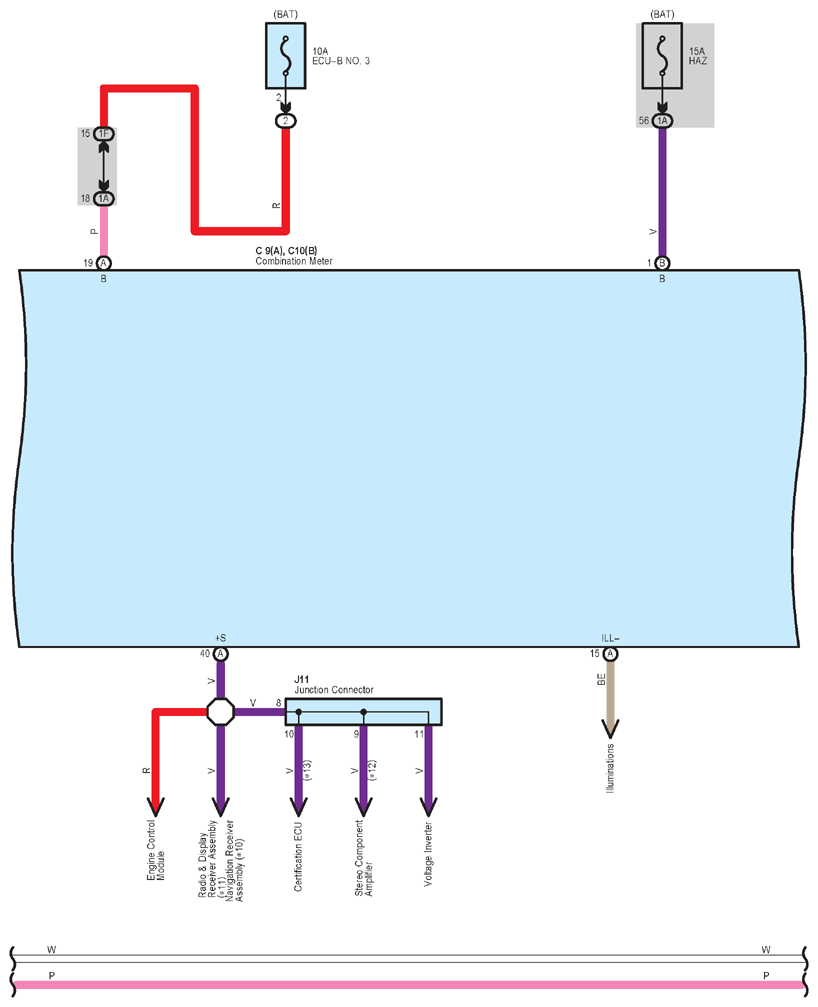

Fig 2: Combination Meter (2 Of 6)
G12222944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

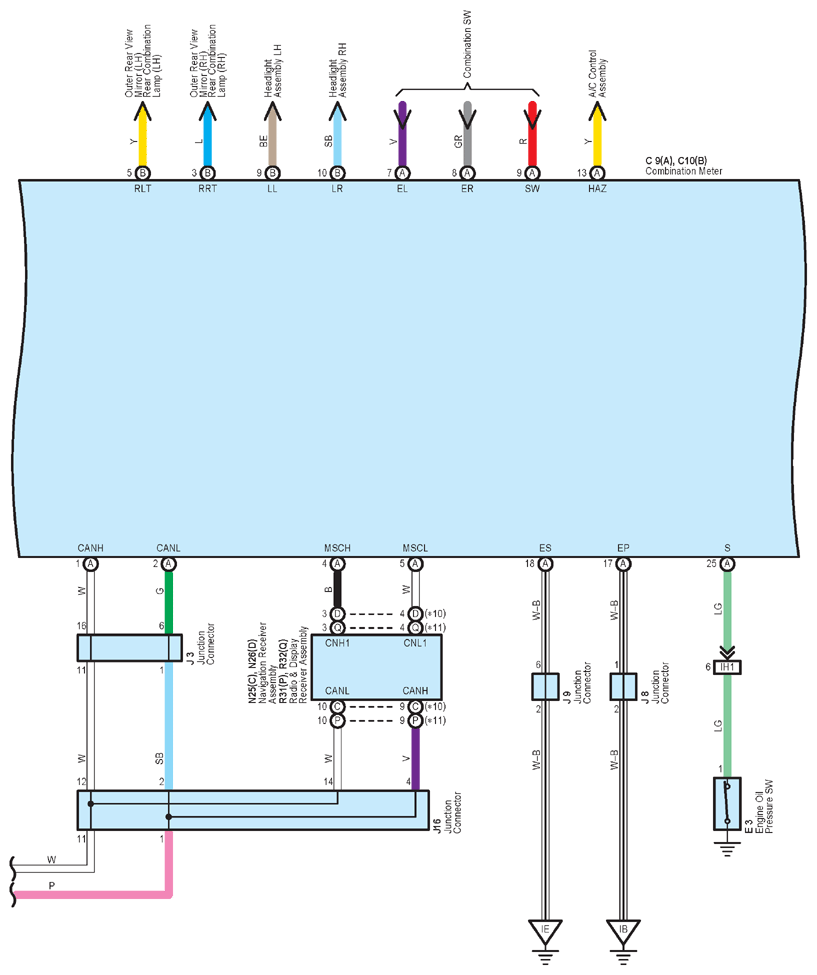

Fig 3: Combination Meter (3 Of 6)
G12222945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

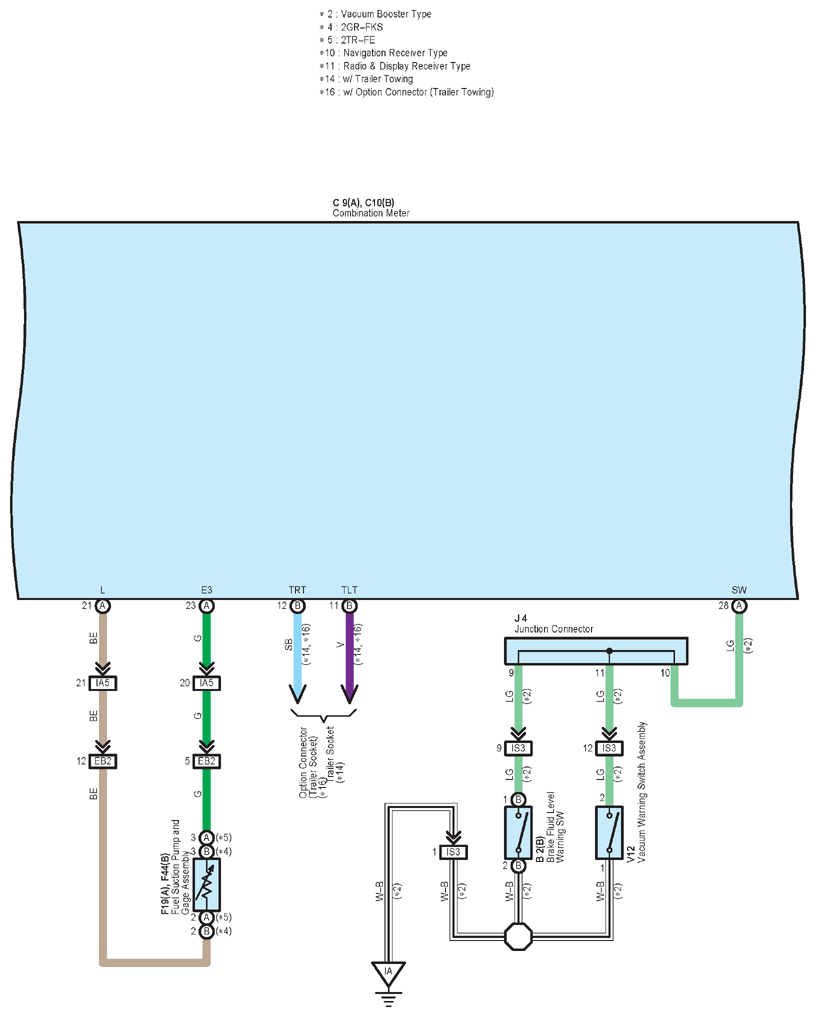

Fig 4: Combination Meter (4 Of 6)
G12222946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

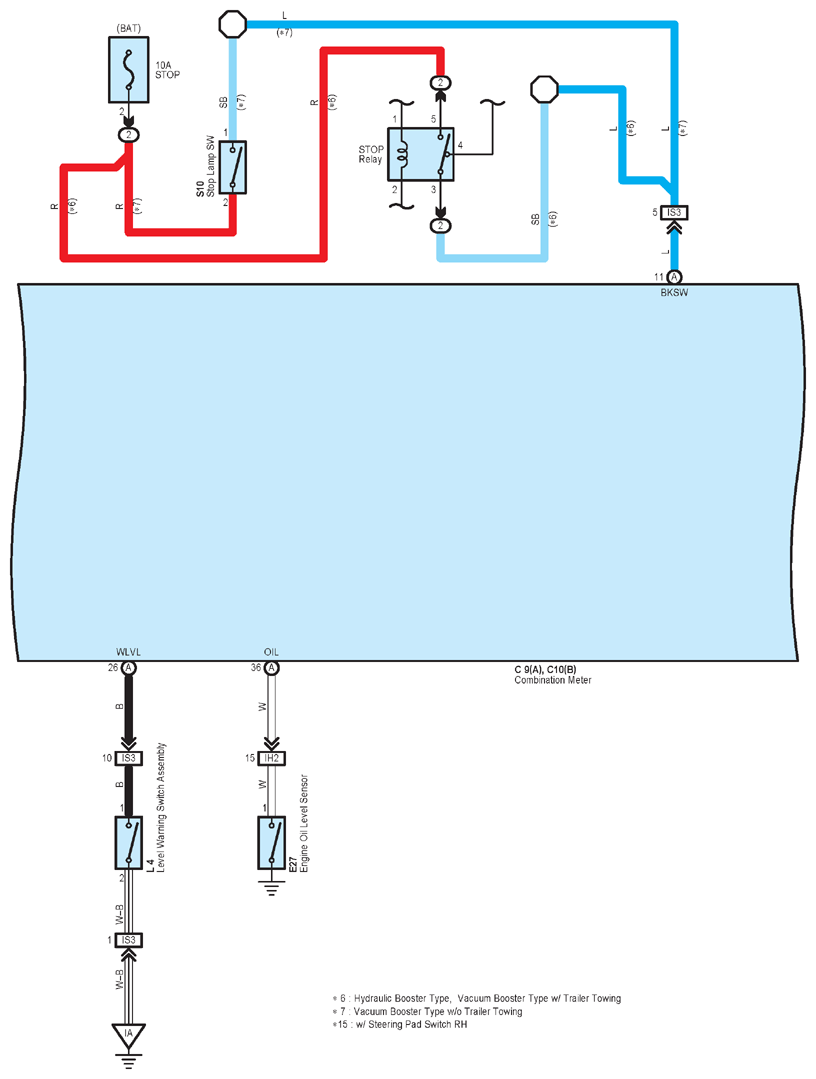

Fig 5: Combination Meter (5 Of 6)
G12222947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

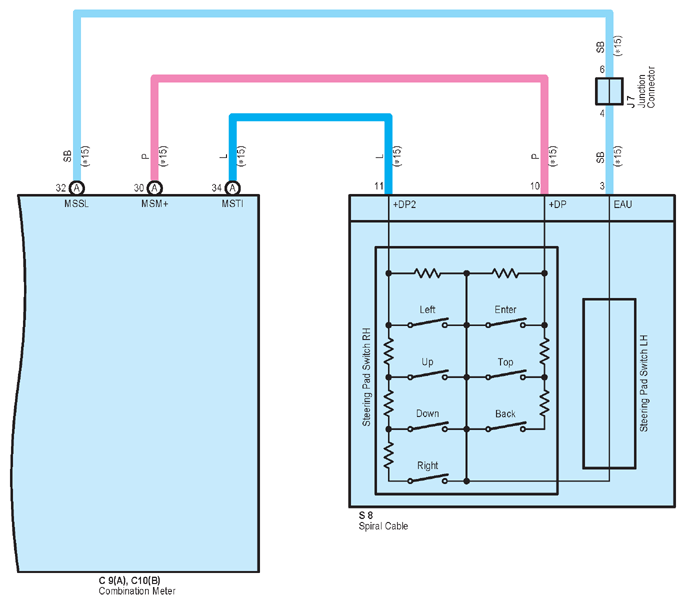

Fig 6: Combination Meter (6 Of 6)
G12222948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
