Remote Control Mirror
>>
System Diagrams
System Diagrams

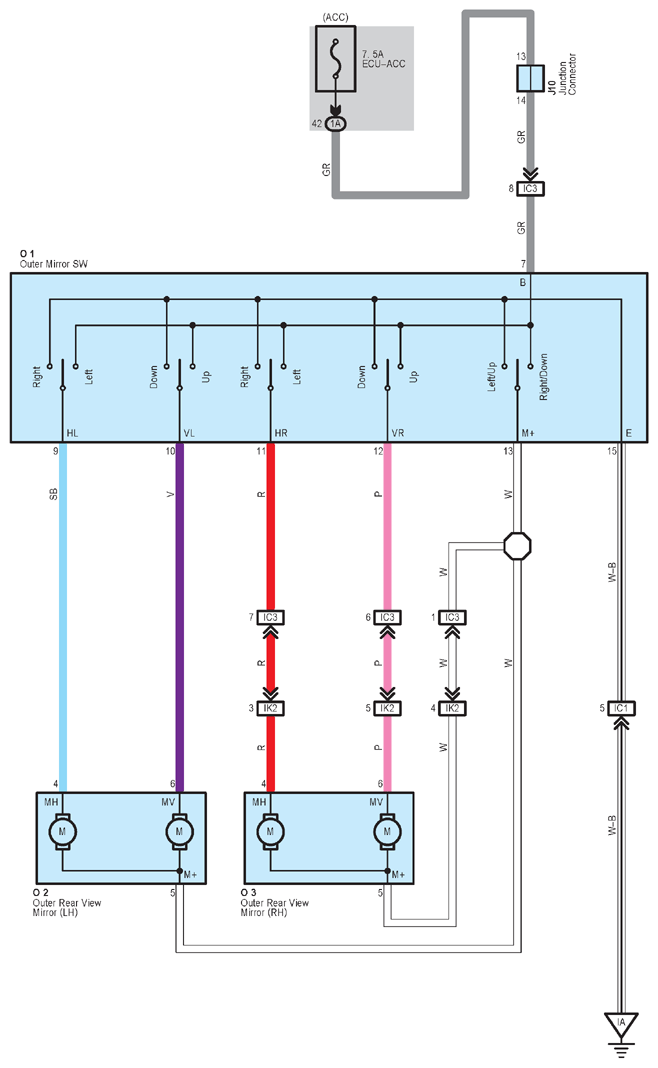

Fig 1: Remote Control Mirror
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
