Home >> Toyota >> 2017 >> Tacoma Limited, 4WD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Automatic Light Control >> Connectors

Automatic Light Control: Connectors

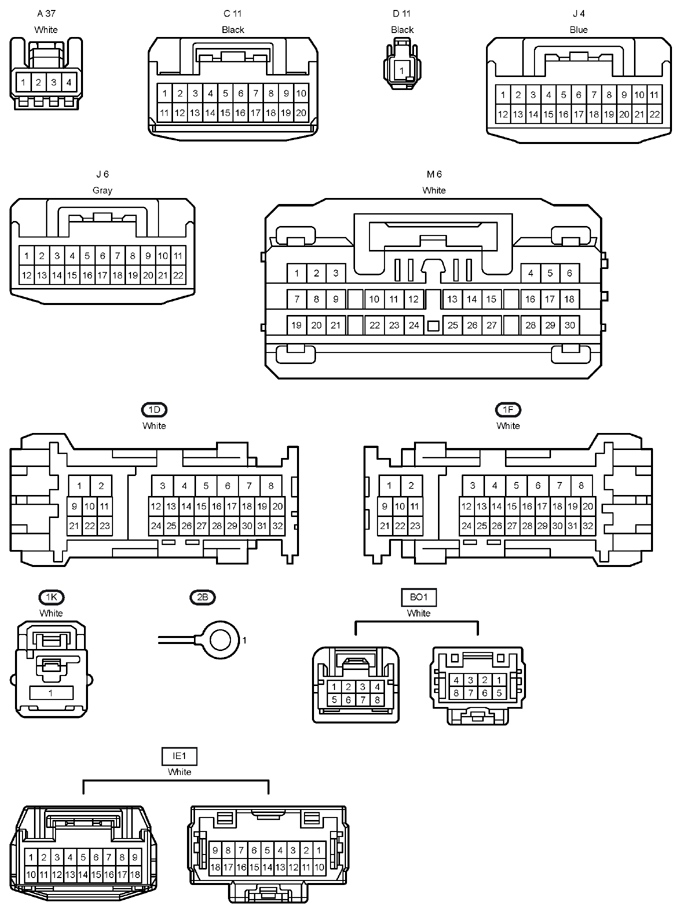

Fig 1: Connectors
G12222891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
