Parts Location [12/2015 - ]: Illustration

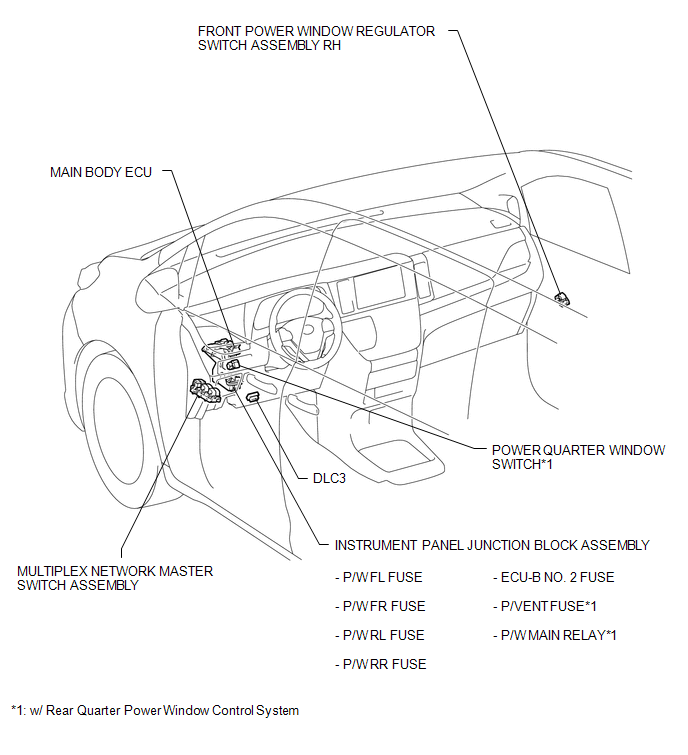

Fig 1: Inspecting Power Window Components Location (1 Of 2)
GTY719142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

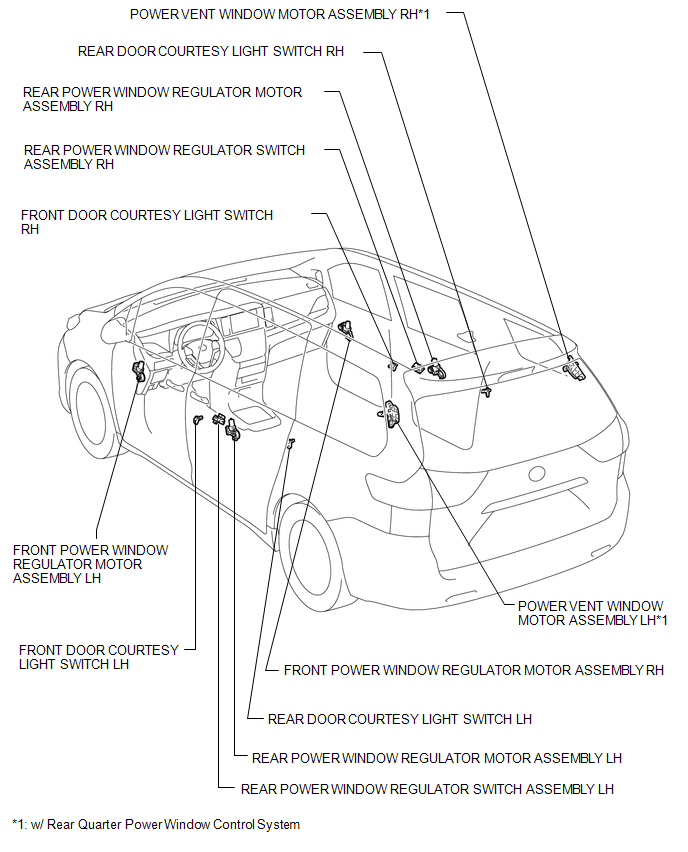

Fig 1: Inspecting Power Window Components Location (2 Of 2)
GTY713459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
