Wireless Door Lock Control (W/O Smart Key System): Connectors

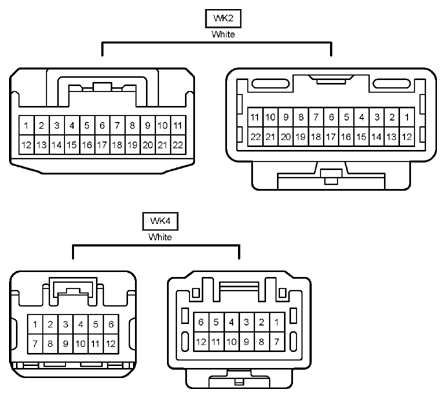

Fig 1: Connectors (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

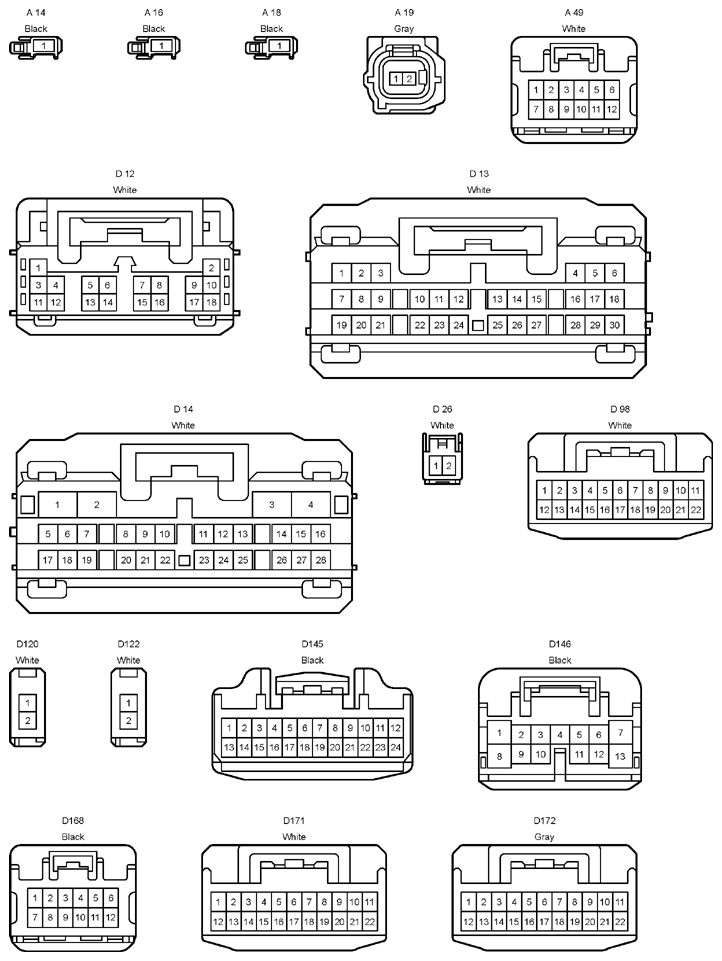

Fig 2: Connectors (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

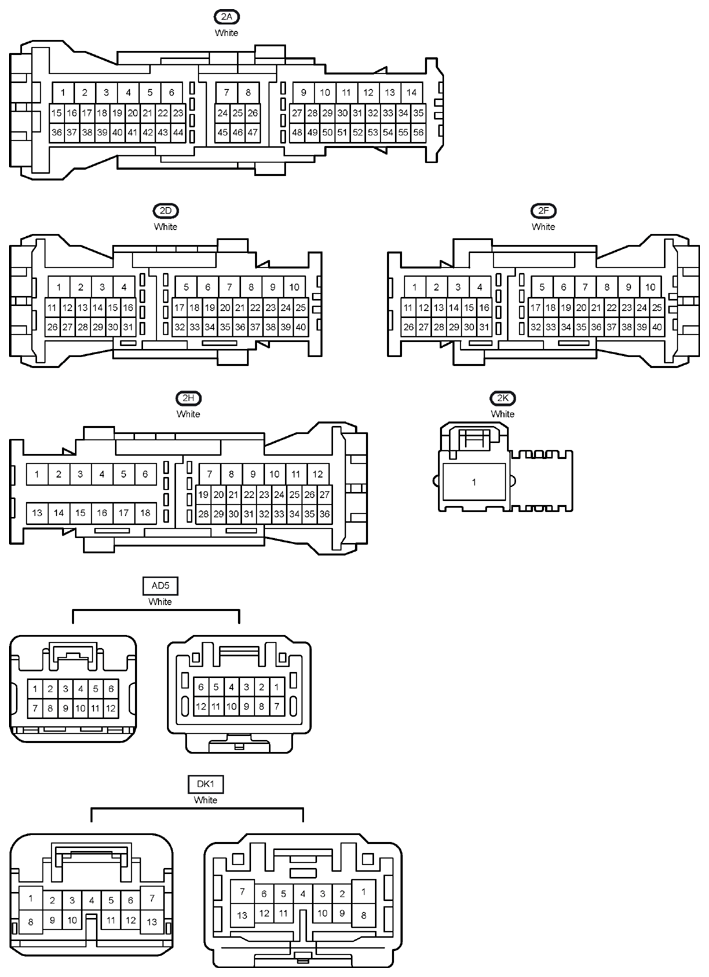

Fig 3: Connectors (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

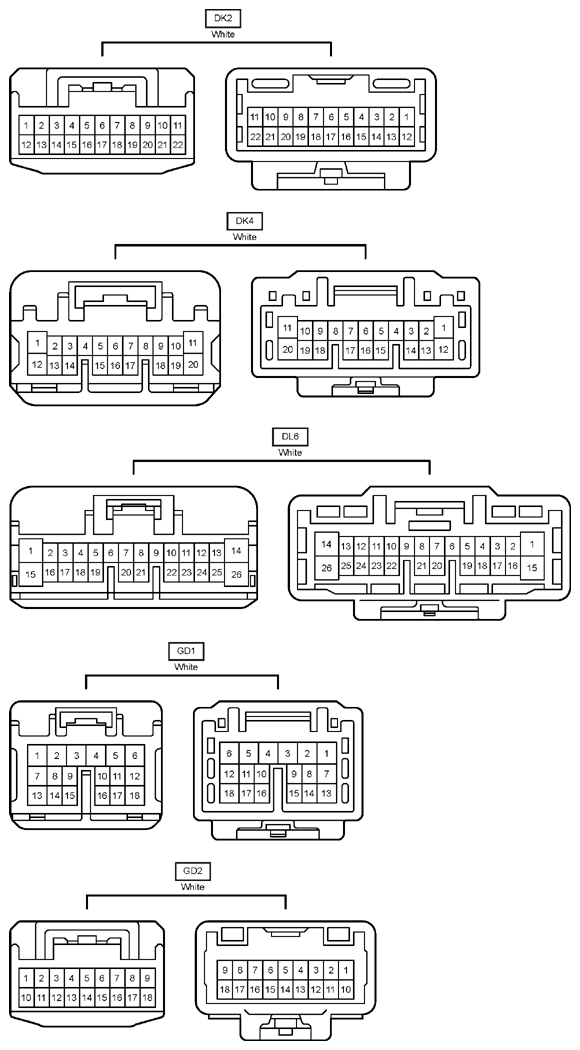

Fig 4: Connectors (4 Of 6)

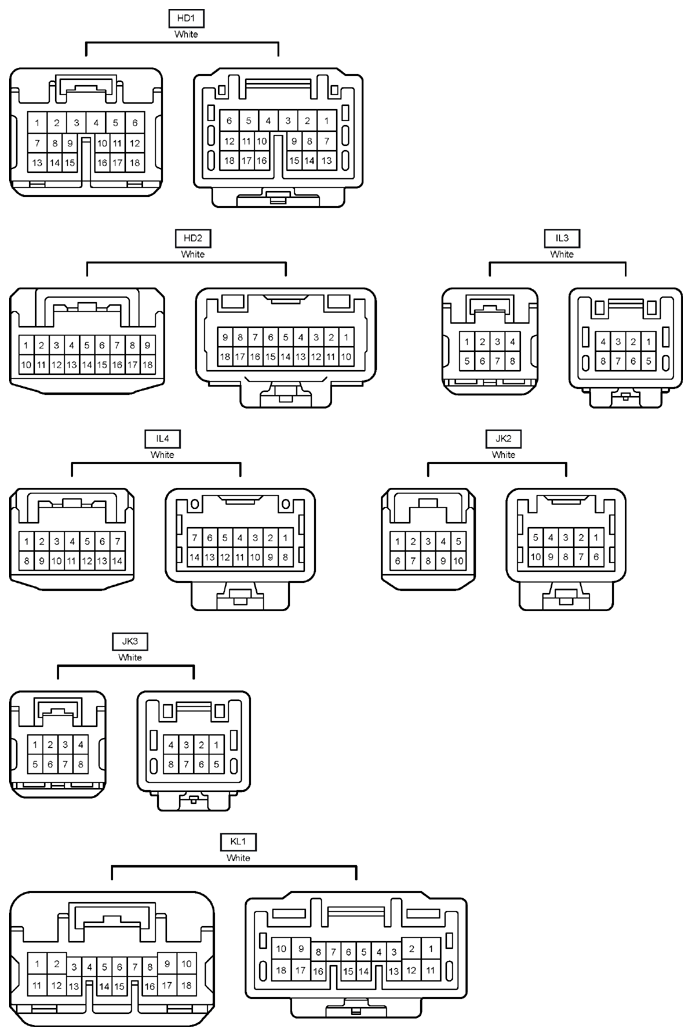

Fig 5: Connectors (5 Of 6)

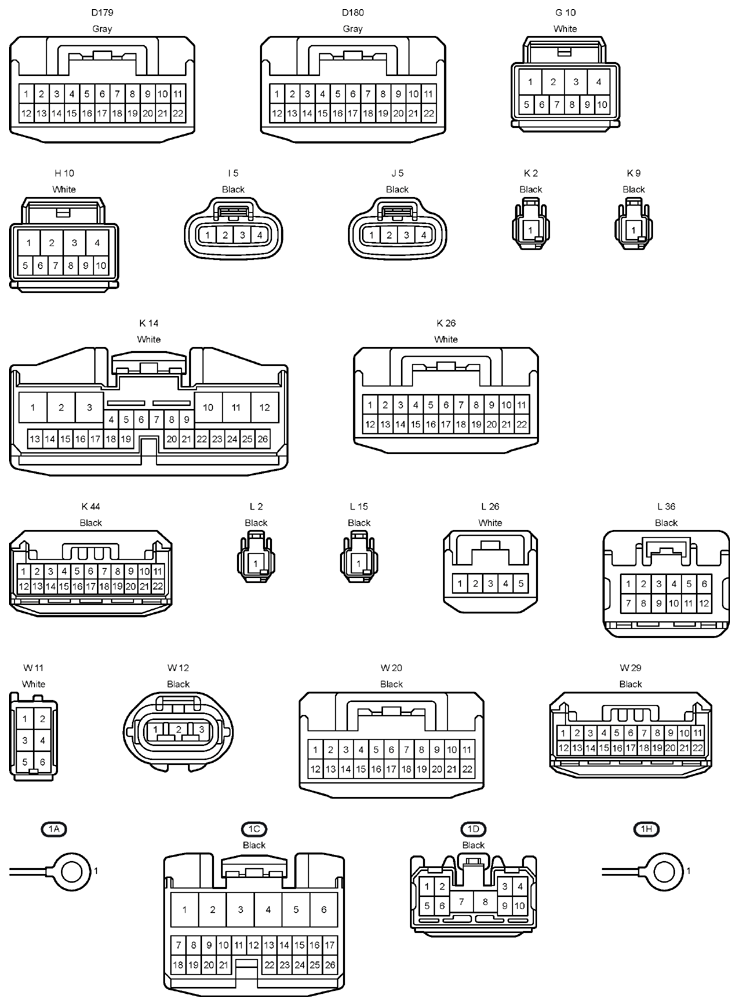

Fig 6: Connectors (6 Of 6)
