Sliding Roof
>>
System Diagrams
System Diagrams

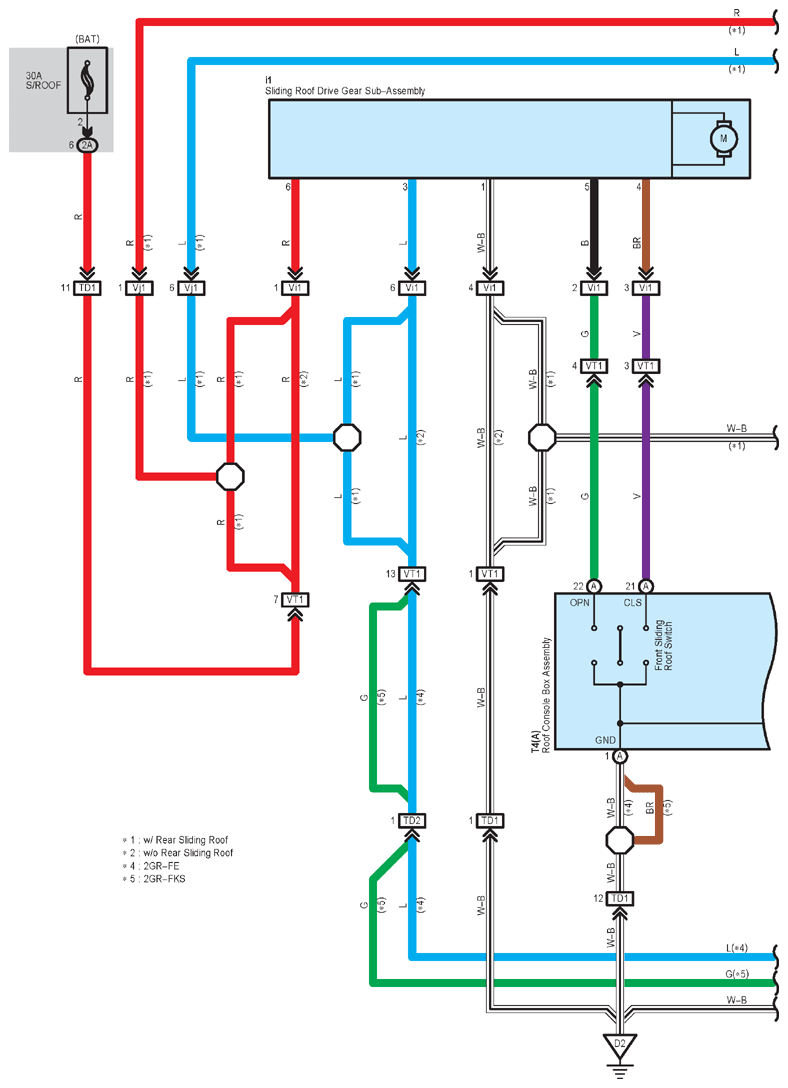

Fig 1: Sliding Roof (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

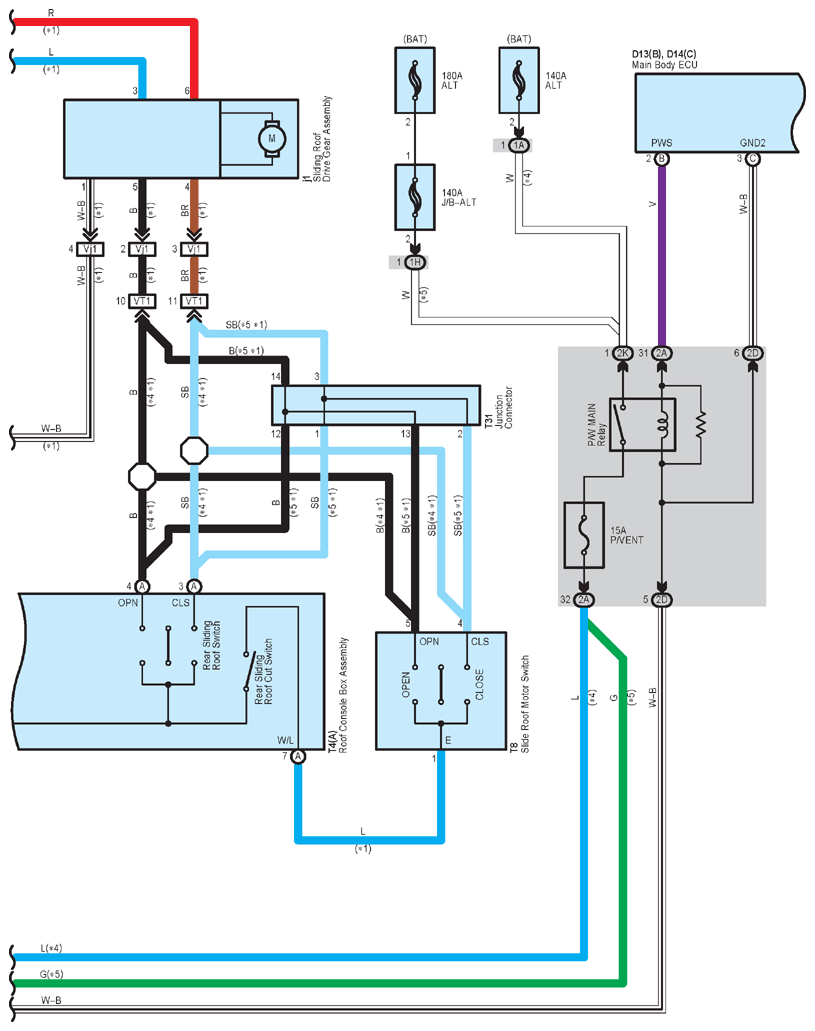

Fig 2: Sliding Roof (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

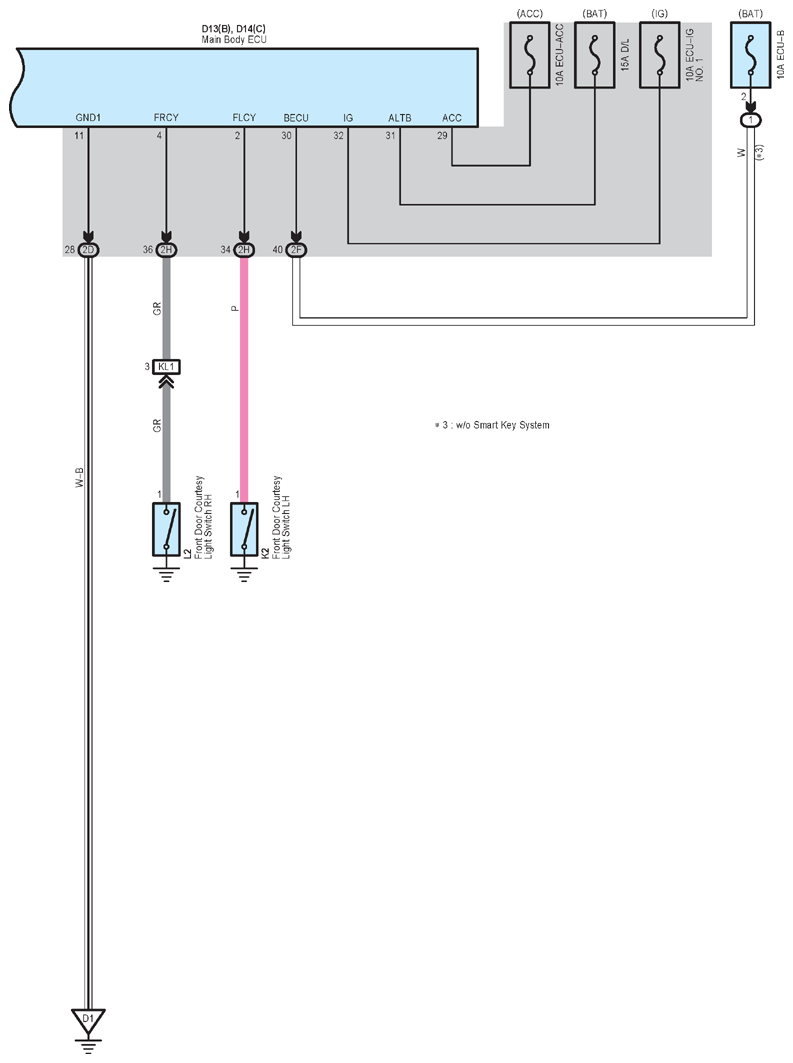

Fig 3: Sliding Roof (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
