System Diagrams

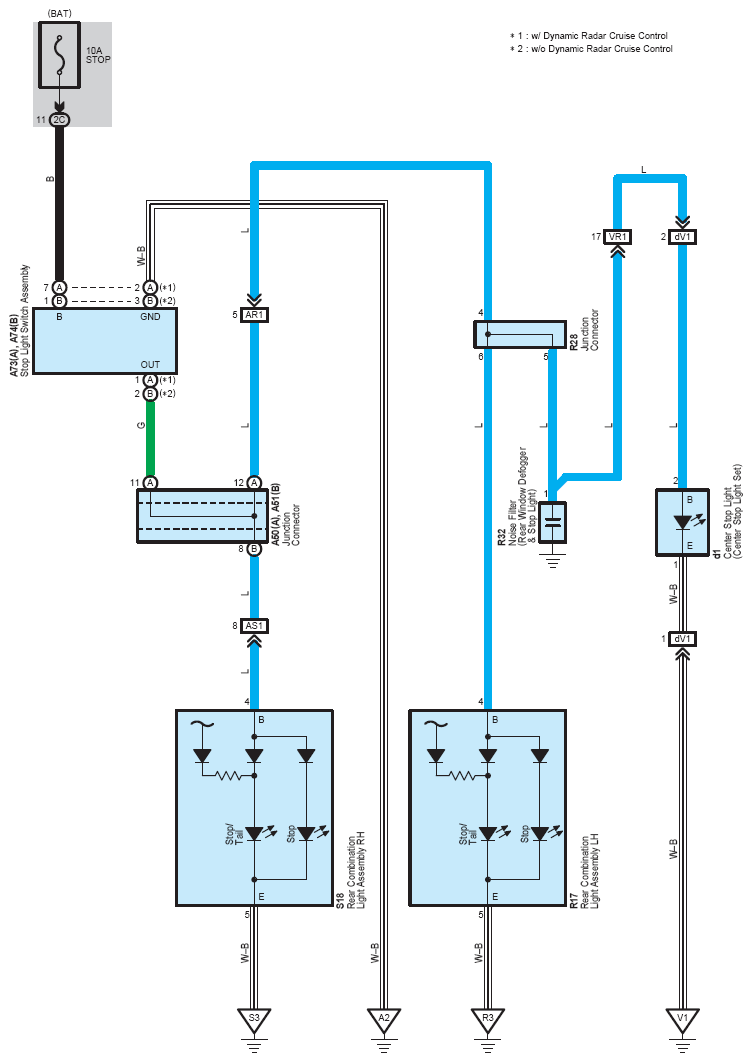

Fig 1: Stop Light (1 Of 1)

G12214638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
