Light Reminder: Connectors

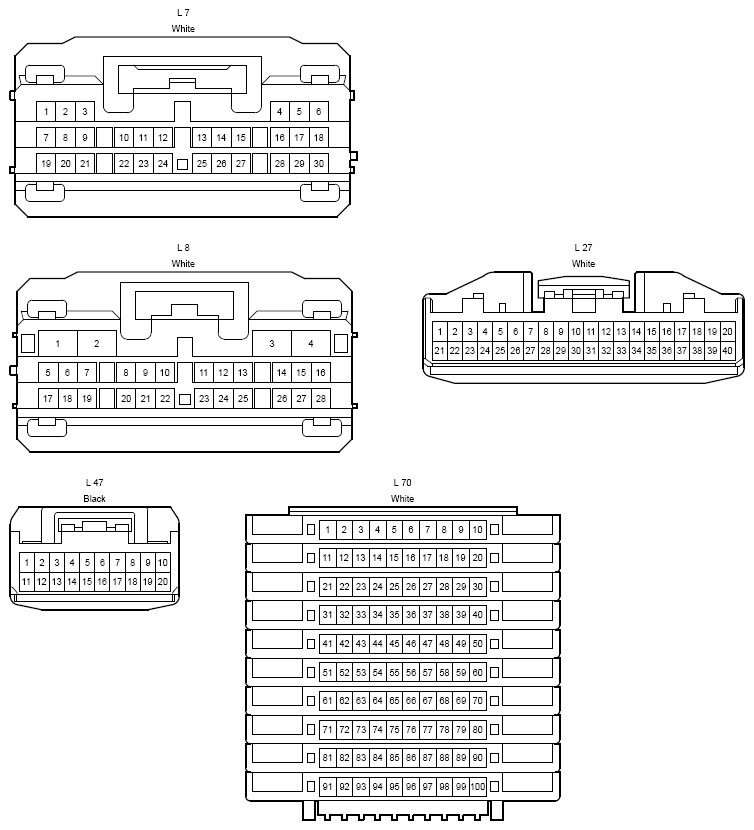

Fig 1: Connectors (1 Of 4)
G12214513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

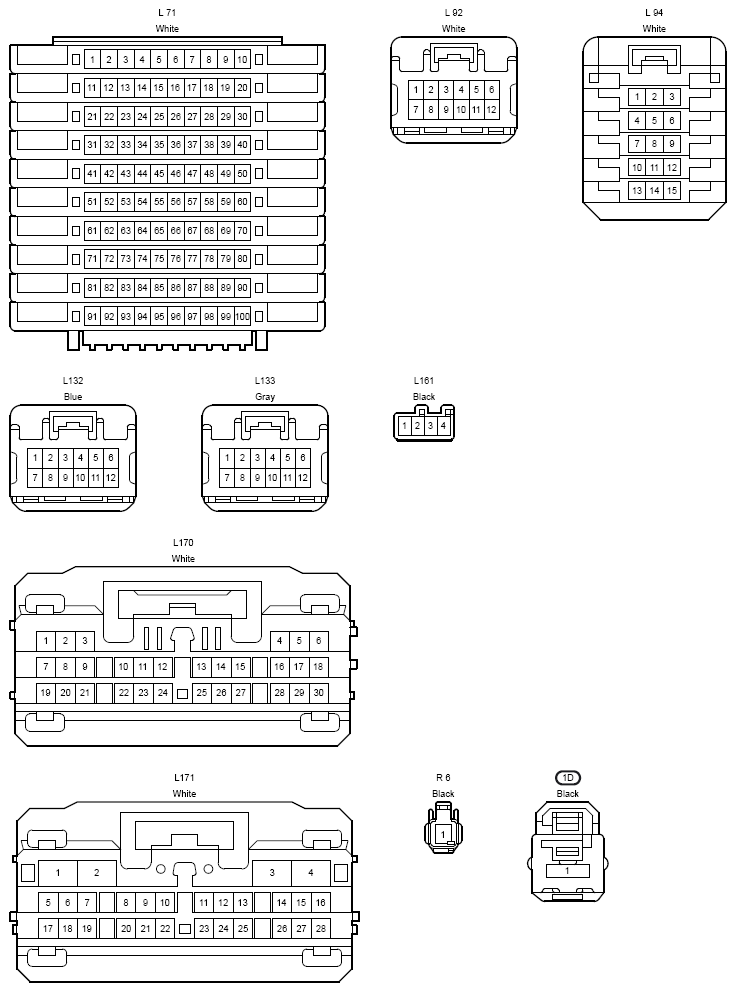

Fig 2: Connectors (2 Of 4)
G12214514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

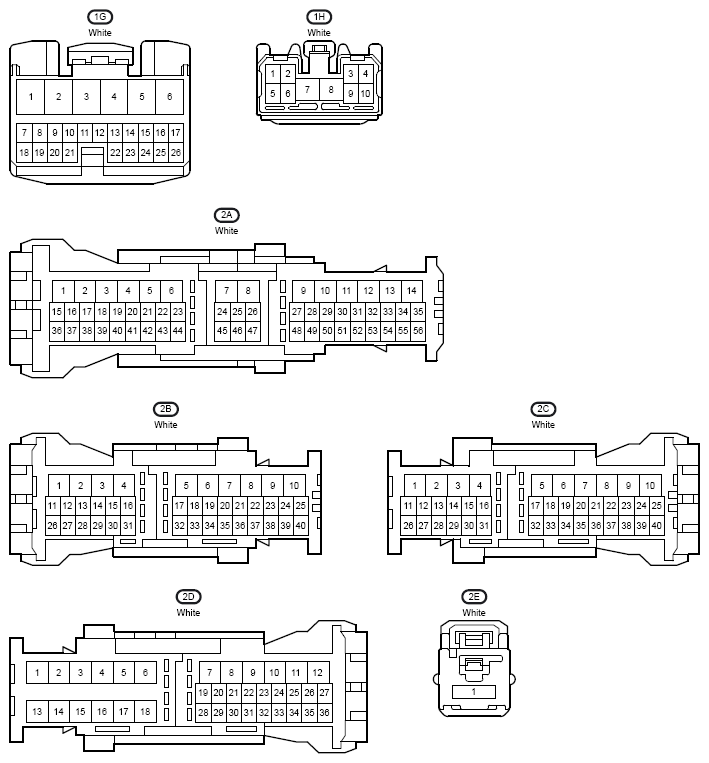

Fig 3: Connectors (3 Of 4)
G12214515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

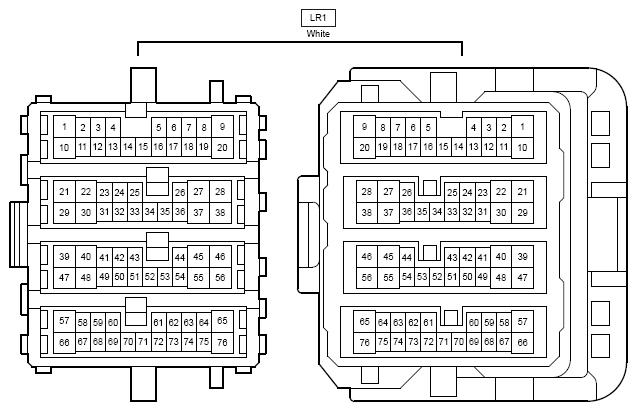

Fig 4: Connectors (4 Of 4)
G12214516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
