Prius V Two
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Lane Departure Alert
>>
System Diagrams
System Diagrams

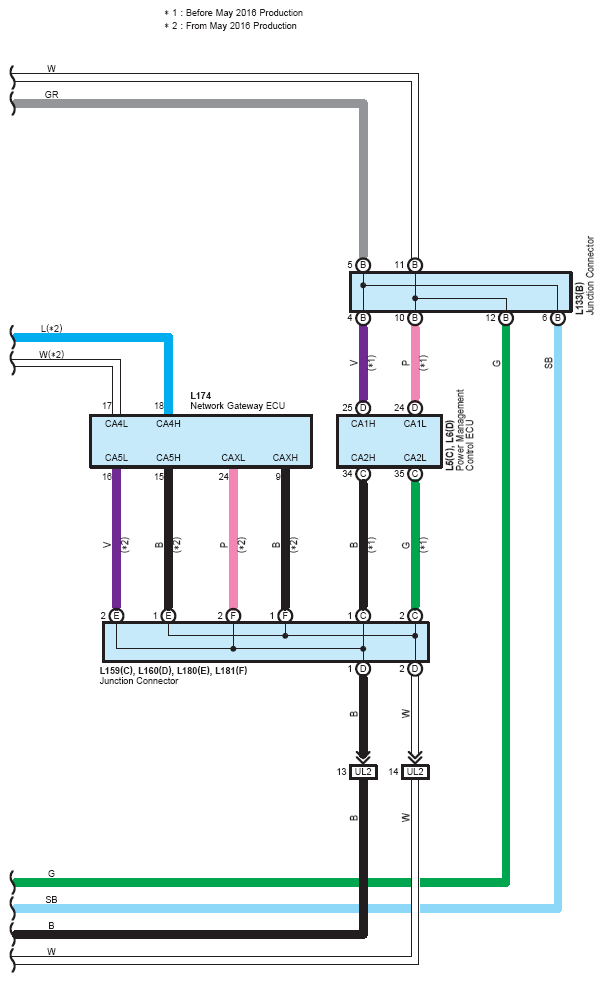

Fig 1: Lane Departure Alert (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

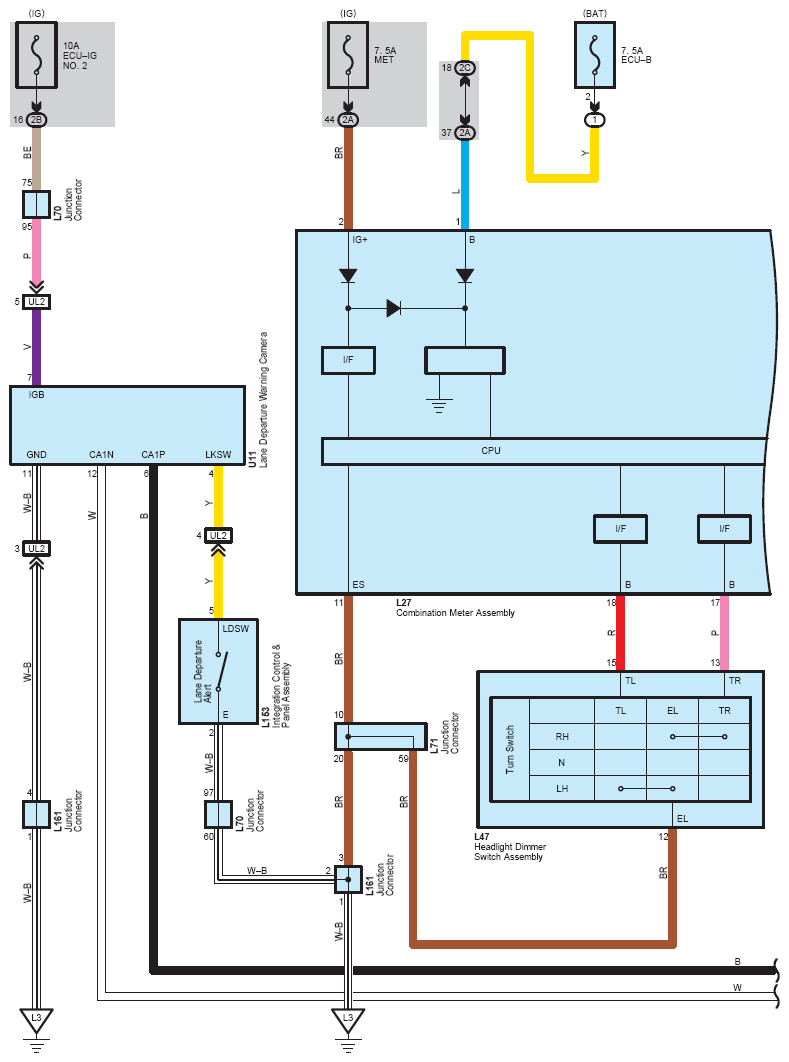

Fig 2: Lane Departure Alert (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

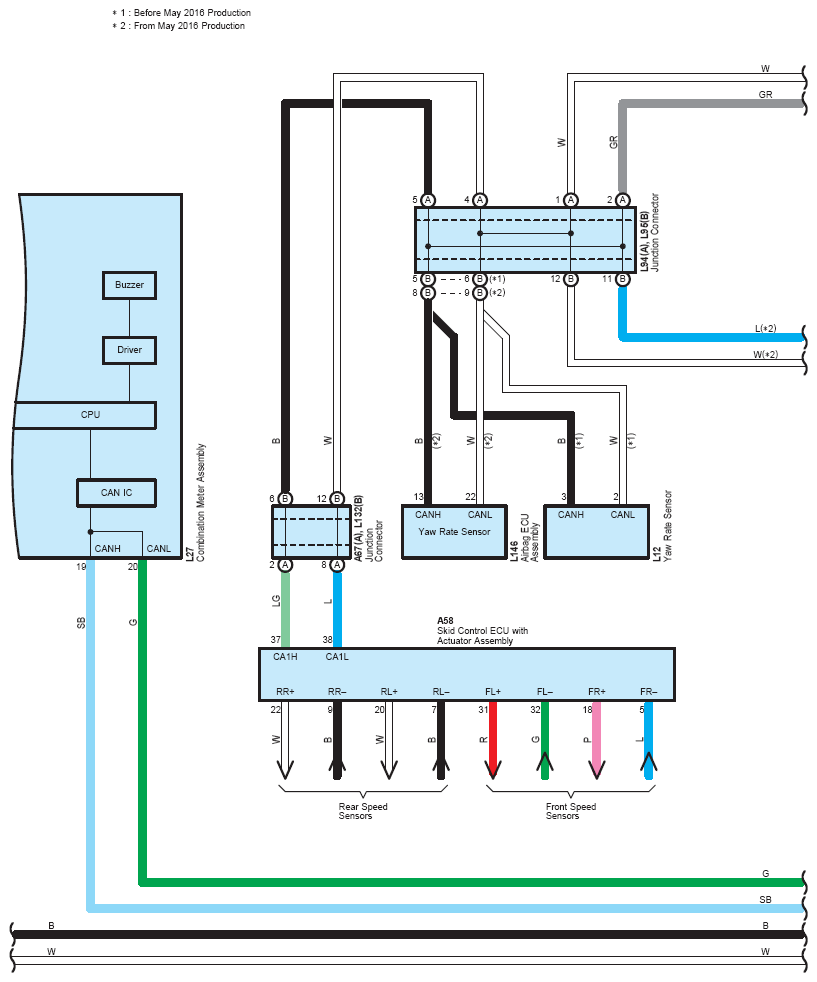

Fig 3: Lane Departure Alert (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
