System Diagrams

Fig 1: Fog Light (1 Of 5)
G12214390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fog Light (2 Of 5)
G12214391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

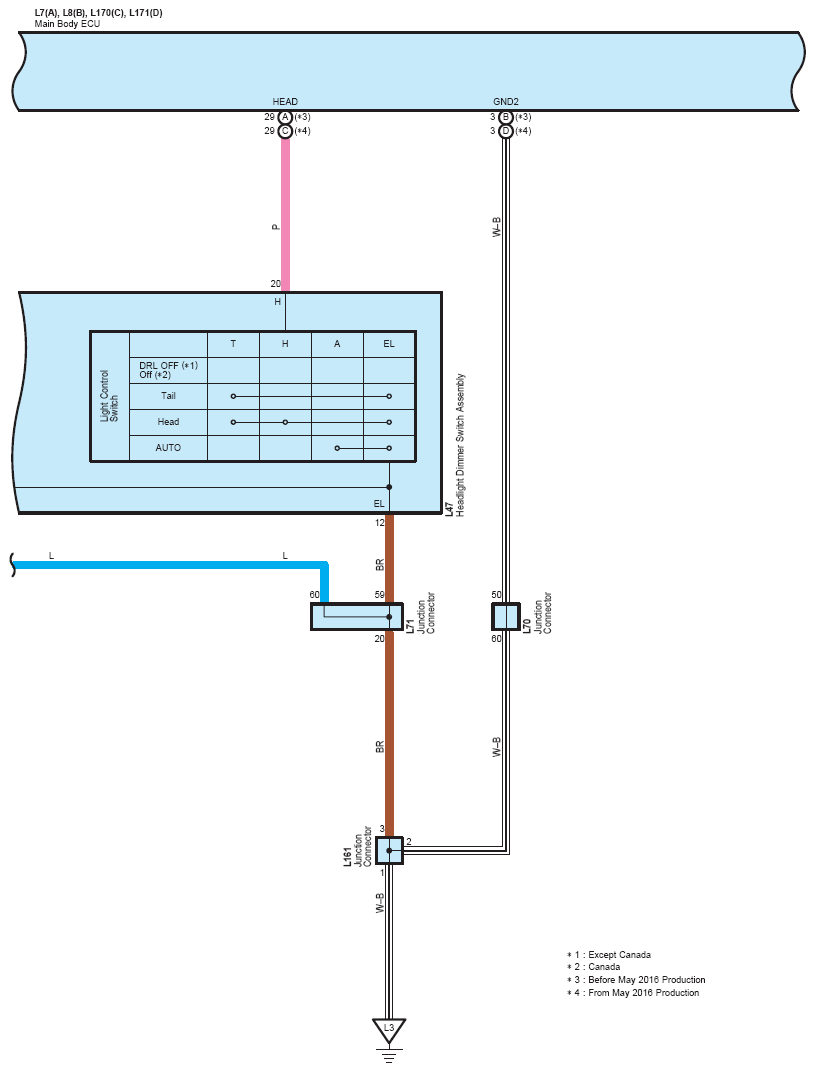

Fig 3: Fog Light (3 Of 5)
G12214392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

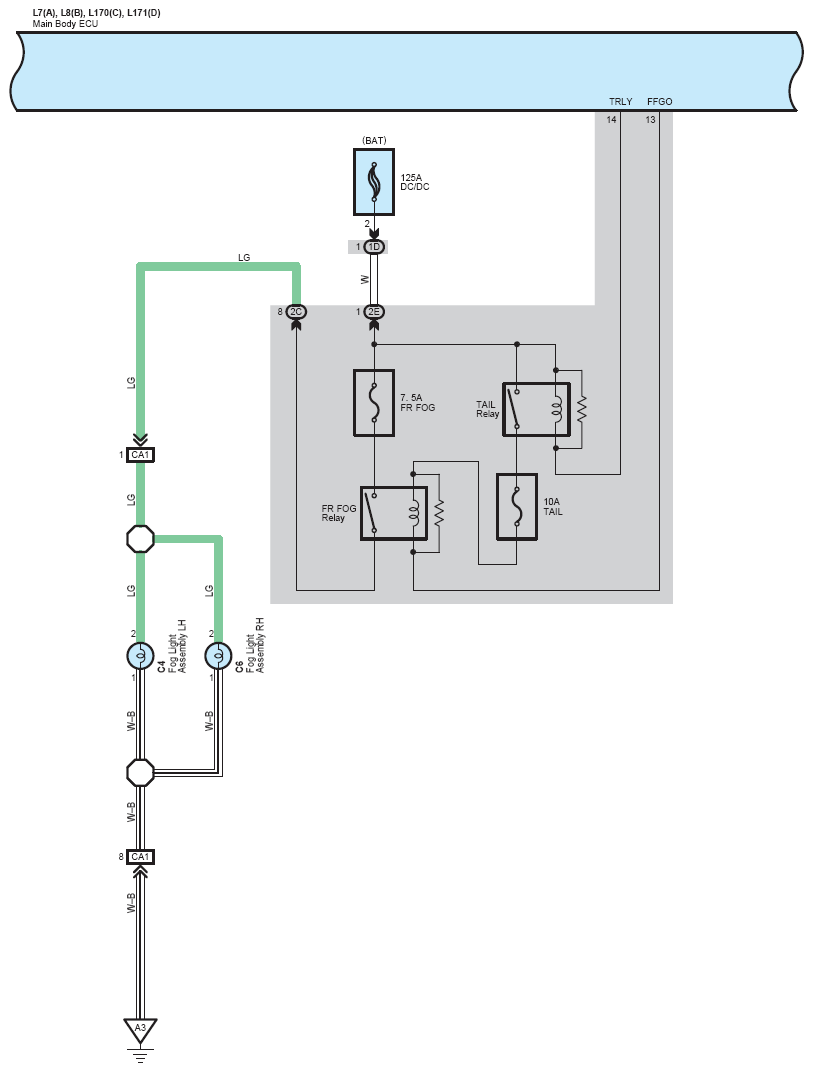

Fig 4: Fog Light (4 Of 5)
G12214393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

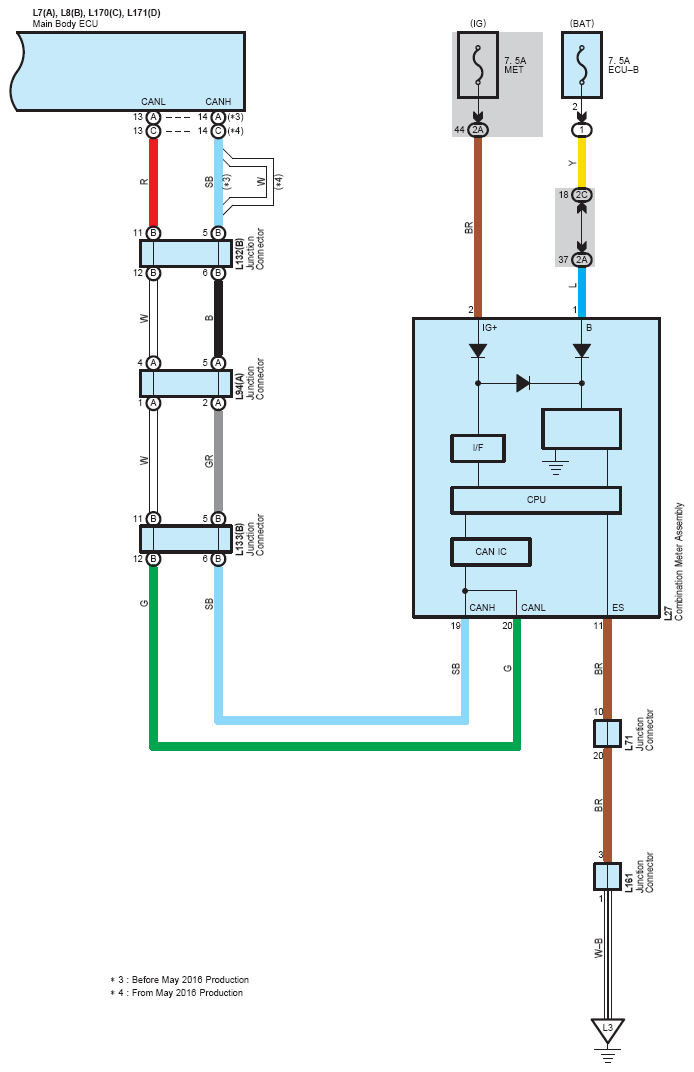

Fig 5: Fog Light (5 Of 5)
G12214394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
