System Diagrams

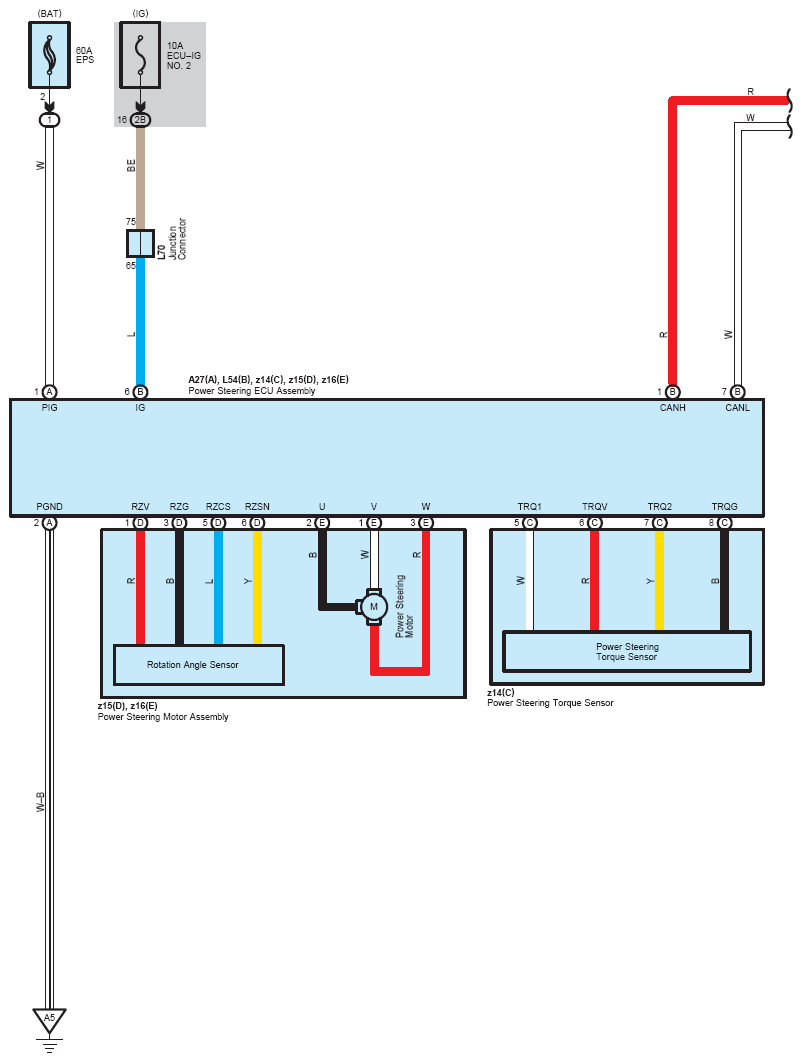

Fig 1: EPS (1 Of 4)
G12214383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

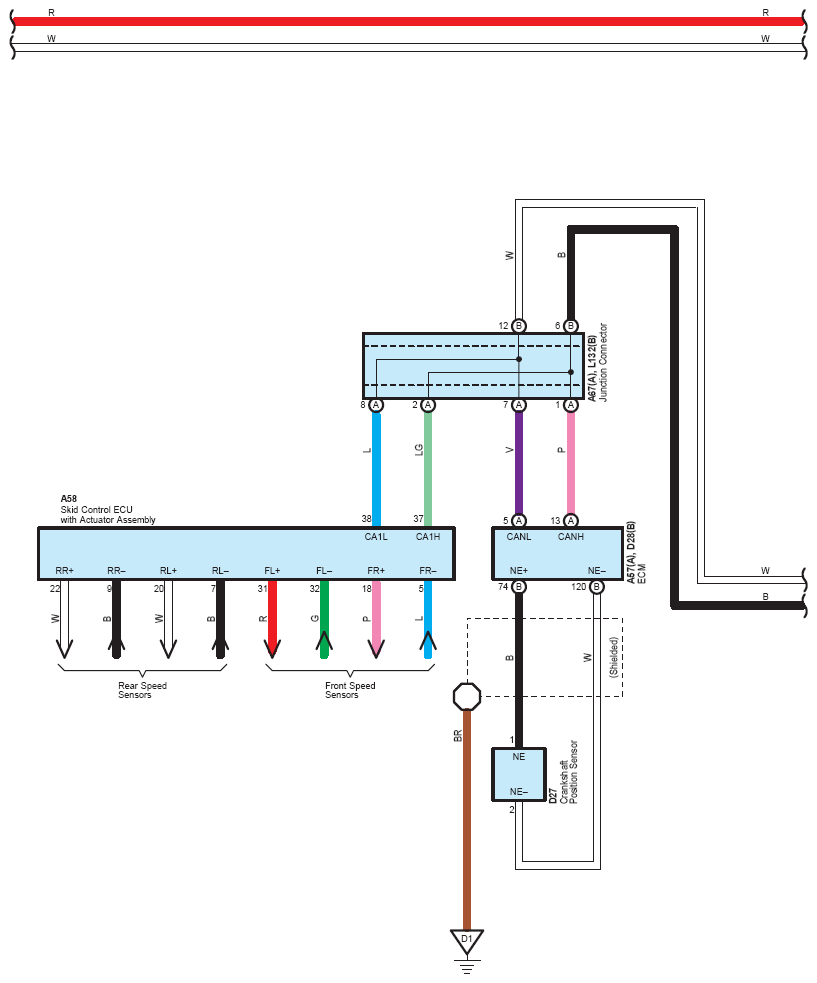

Fig 2: EPS (2 Of 4)
G12214384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

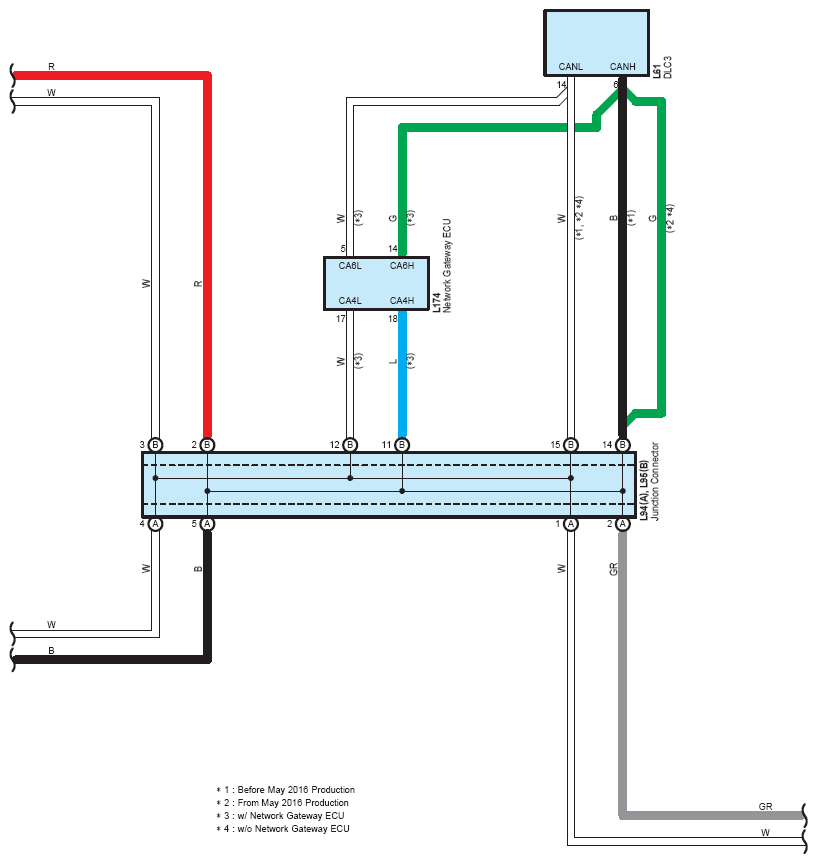

Fig 3: EPS (3 Of 4)
G12214385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

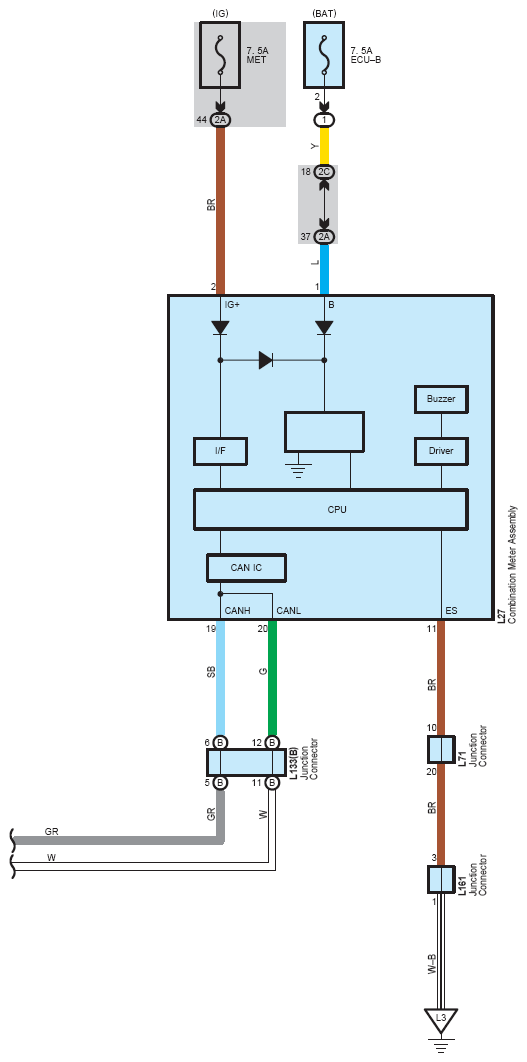

Fig 4: EPS (4 Of 4)
G12214386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
