System Diagrams

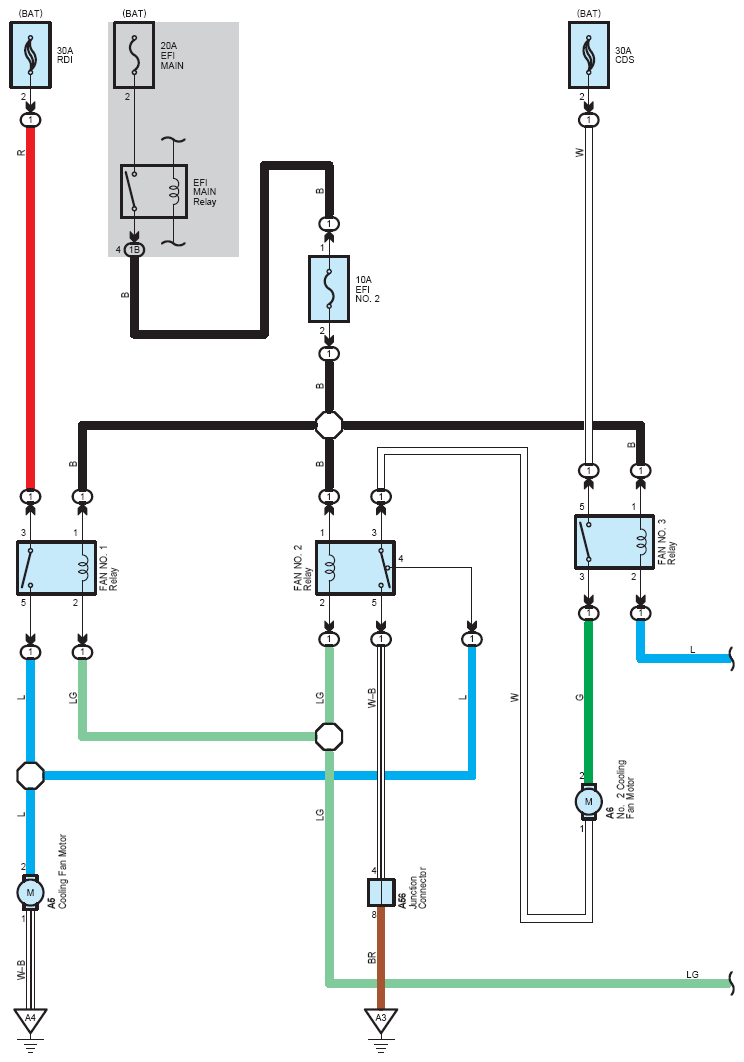

Fig 1: Cooling Fan (1 Of 3)
G12214300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

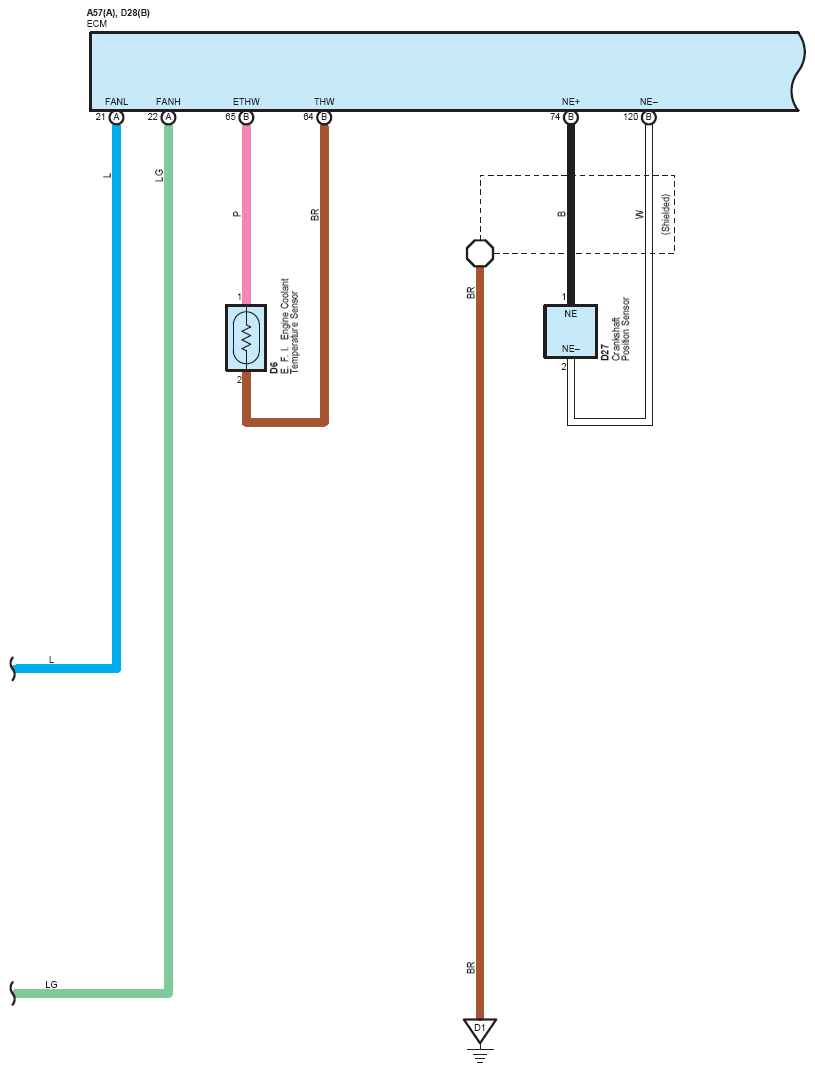

Fig 2: Cooling Fan (2 Of 3)
G12214301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

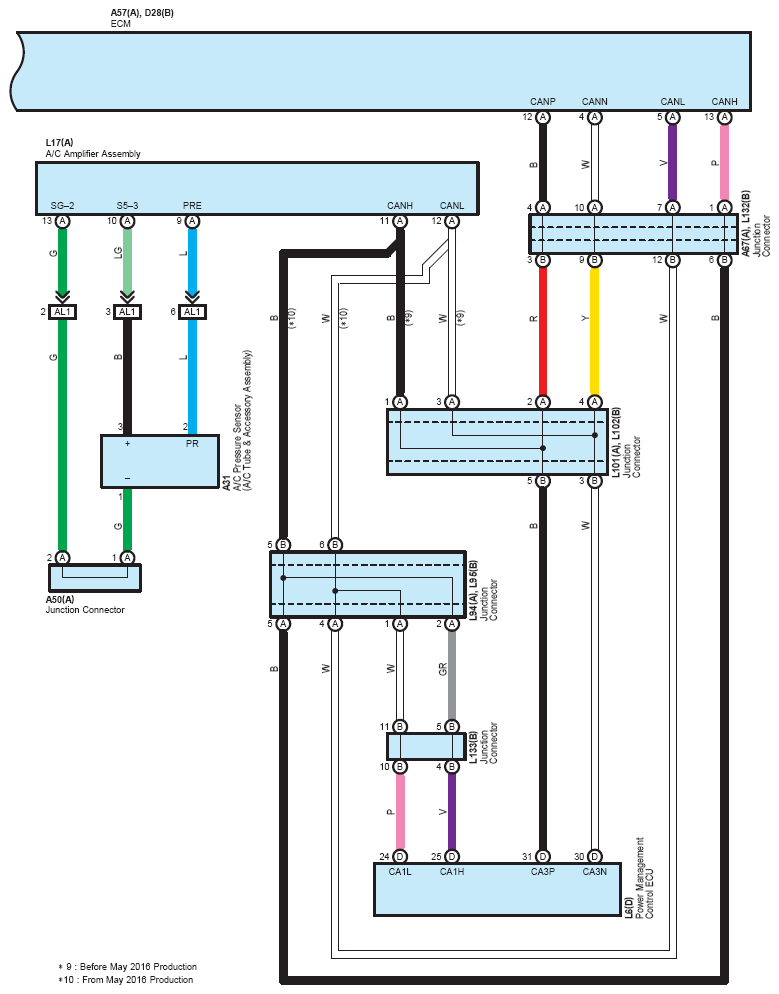

Fig 3: Cooling Fan (3 Of 3)
G12214302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
