System Diagrams

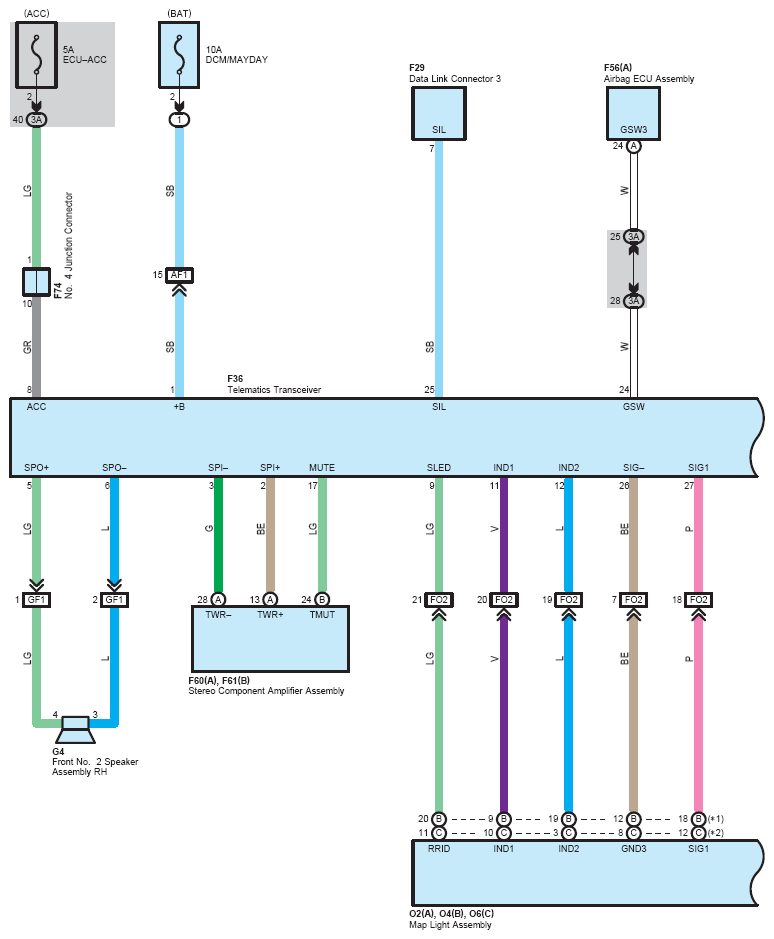

Fig 1: Safety Connect (1 Of 3)
G12208431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

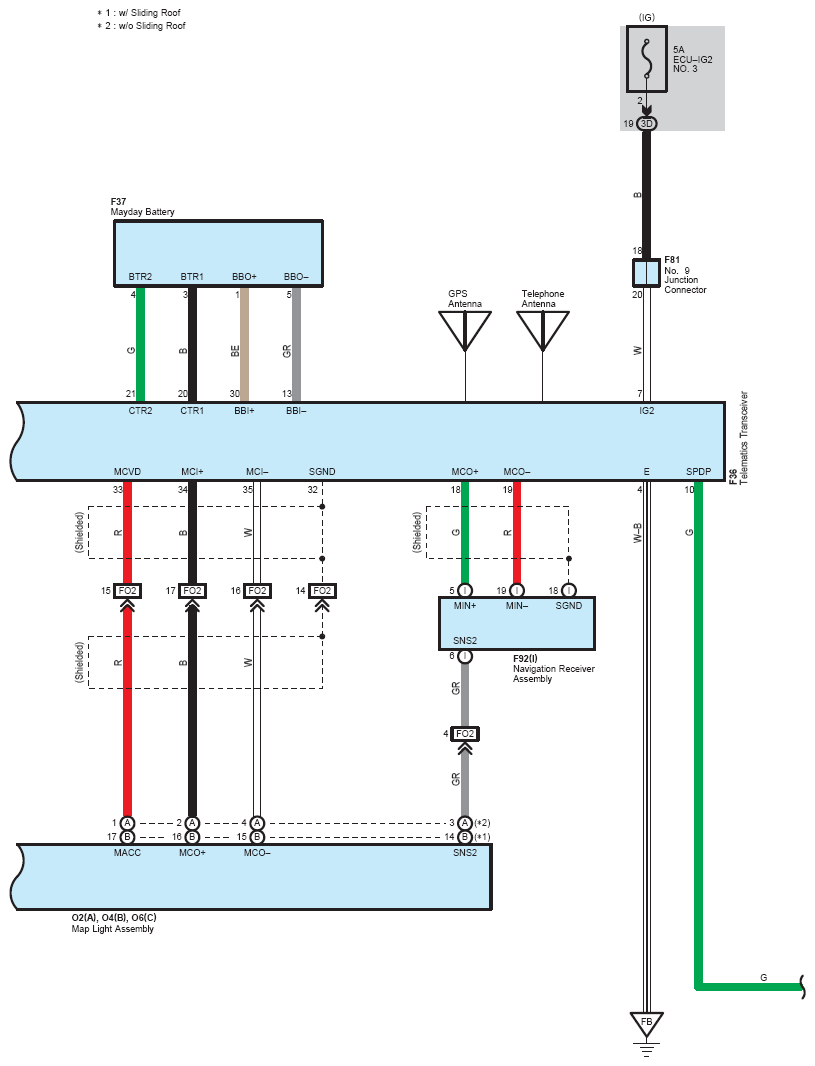

Fig 2: Safety Connect (2 Of 3)
G12208432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

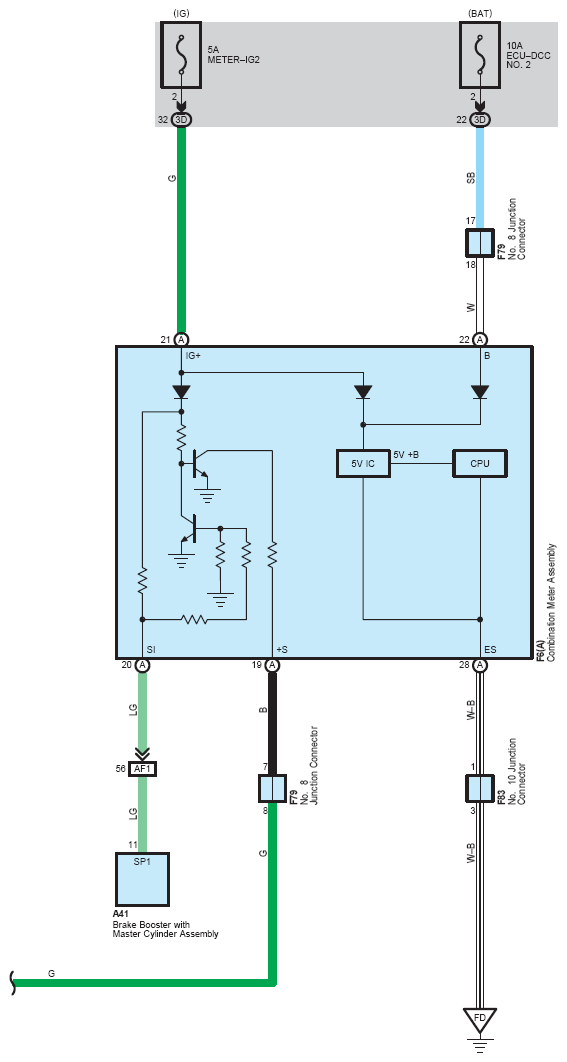

Fig 3: Safety Connect (3 Of 3)
G12208433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
