System Diagrams

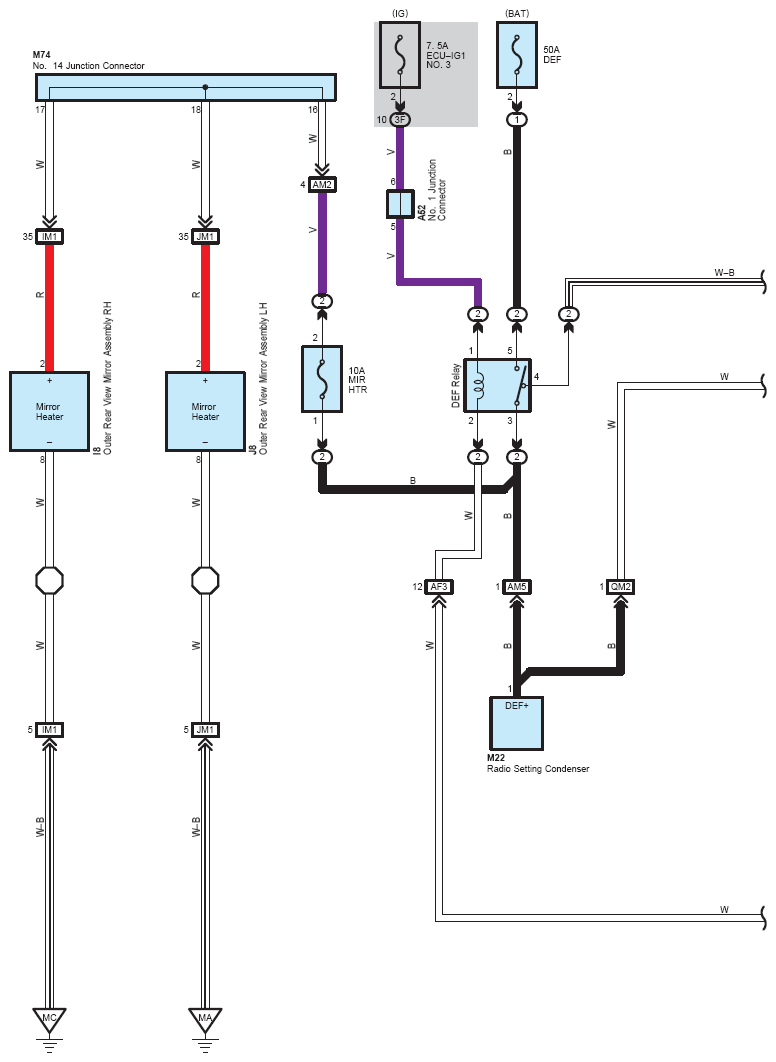

Fig 1: Mirror Heater, Rear Window Defogger (1 Of 2)
G12208411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

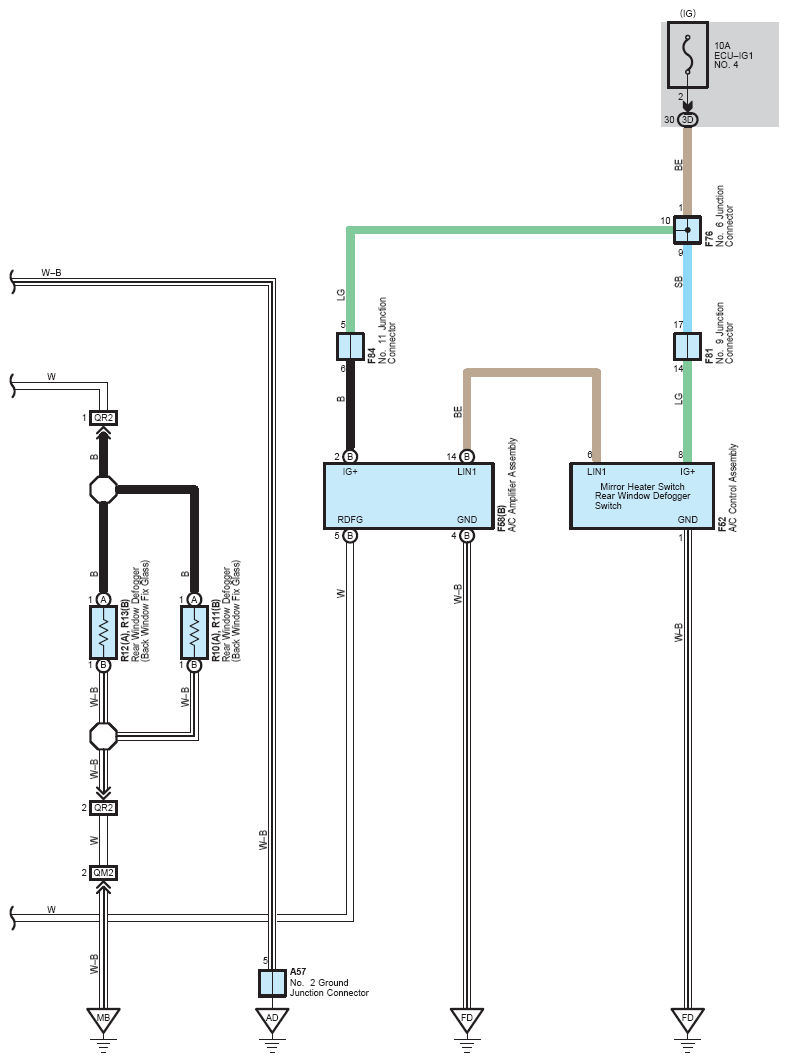

Fig 2: Mirror Heater, Rear Window Defogger (2 Of 2)
G12208412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
