System Diagrams

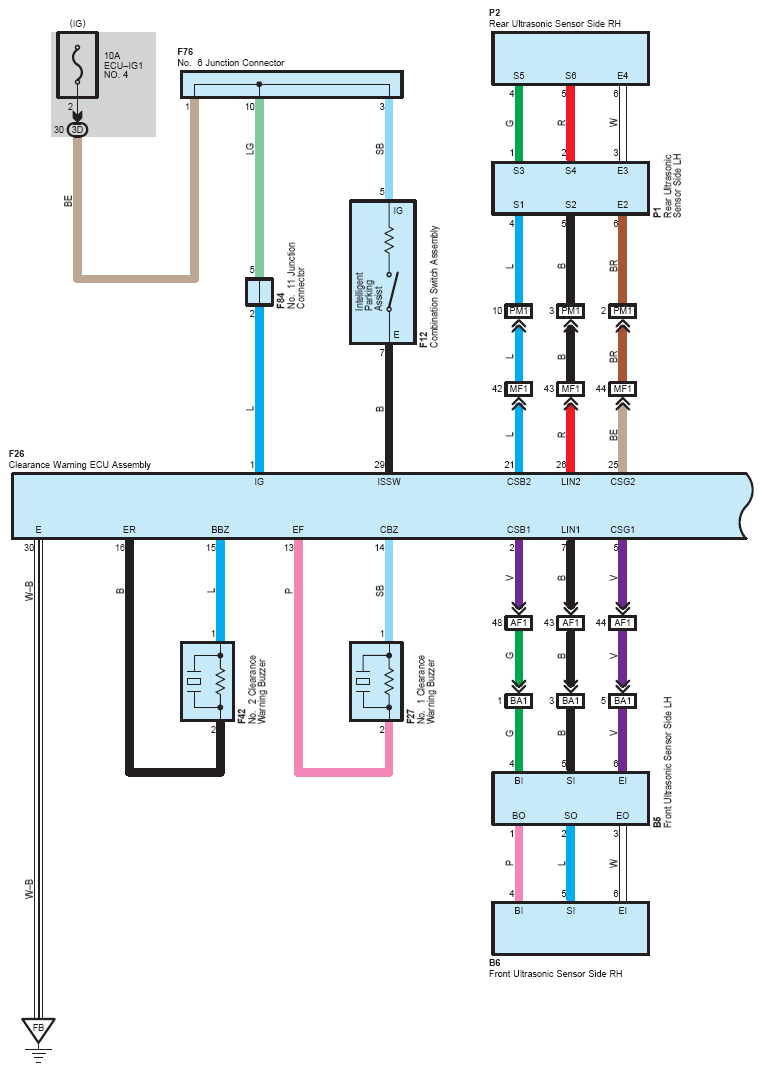

Fig 1: Intelligent Parking Assist (1 Of 6)
G12208324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

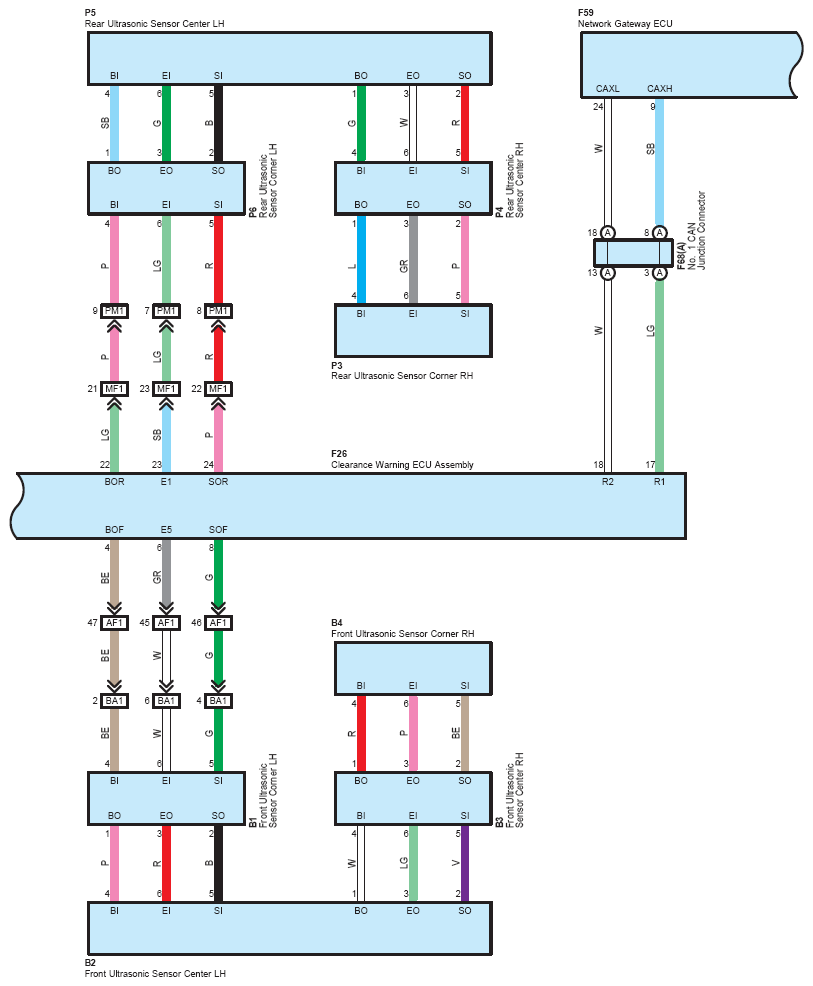

Fig 2: Intelligent Parking Assist (2 Of 6)
G12208325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

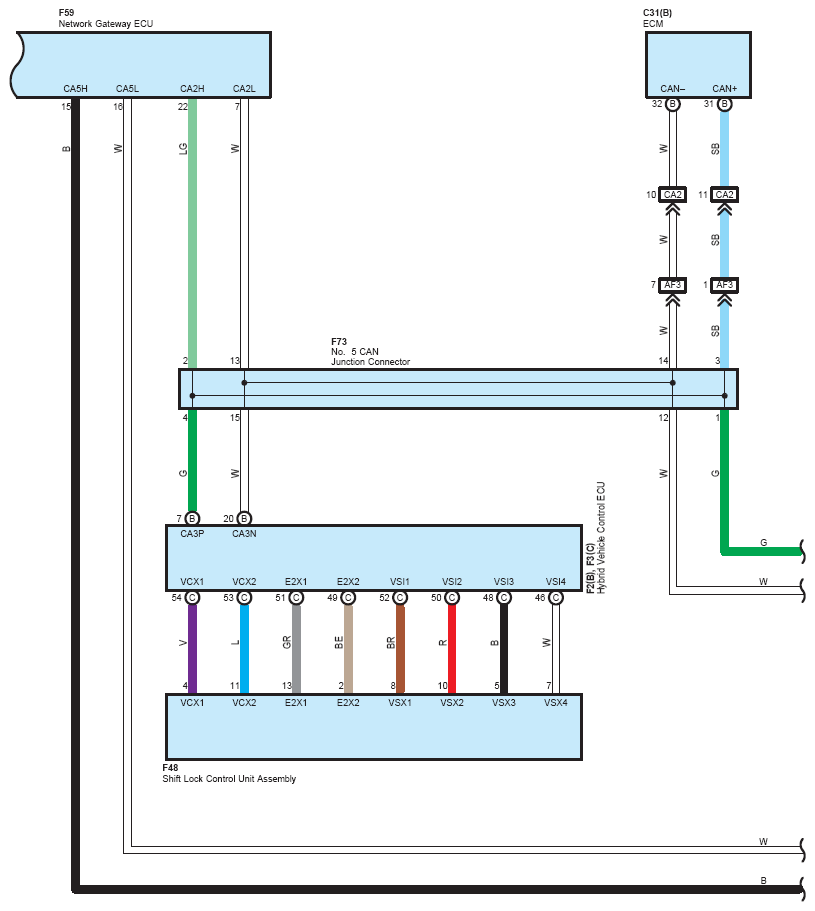

Fig 3: Intelligent Parking Assist (3 Of 6)
G12208326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

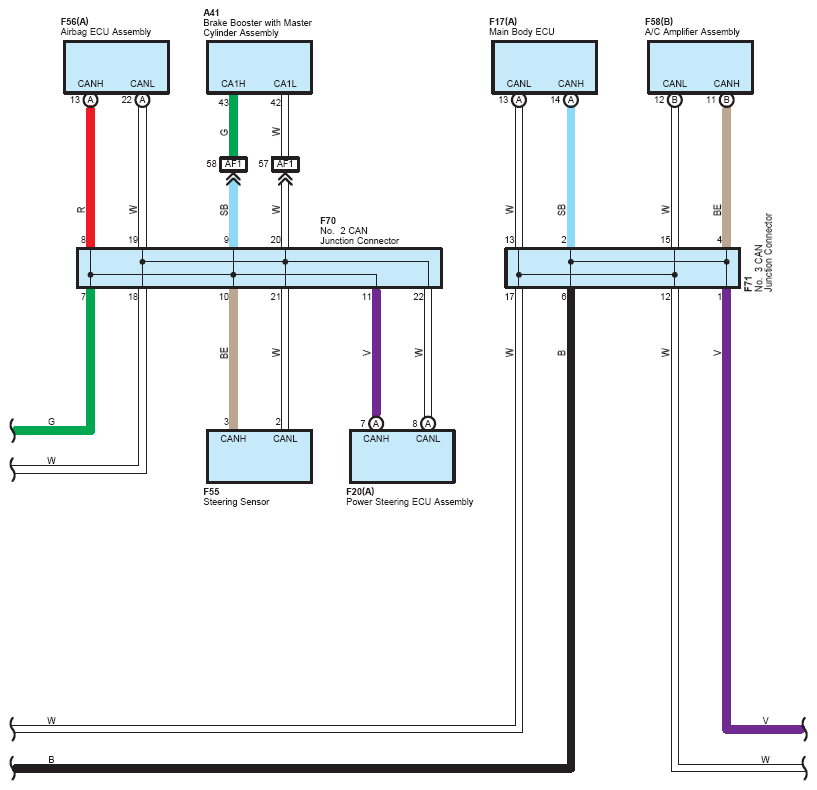

Fig 4: Intelligent Parking Assist (4 Of 6)
G12208327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

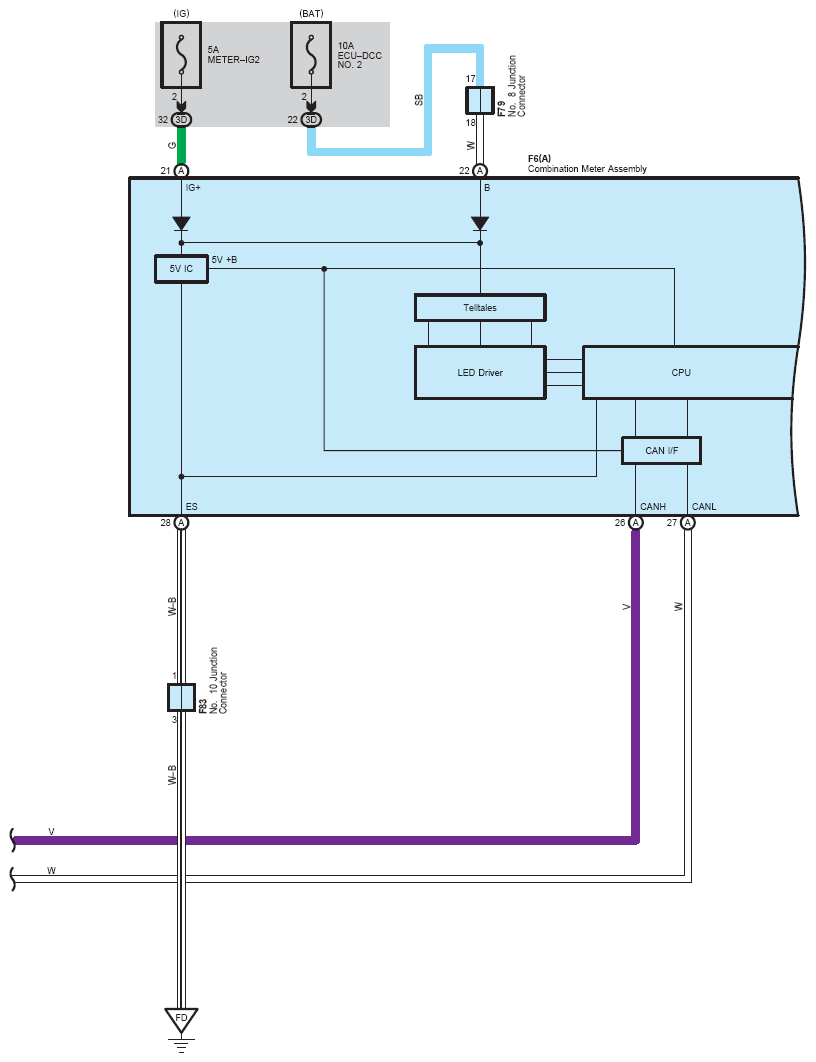

Fig 5: Intelligent Parking Assist (5 Of 6)
G12208328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

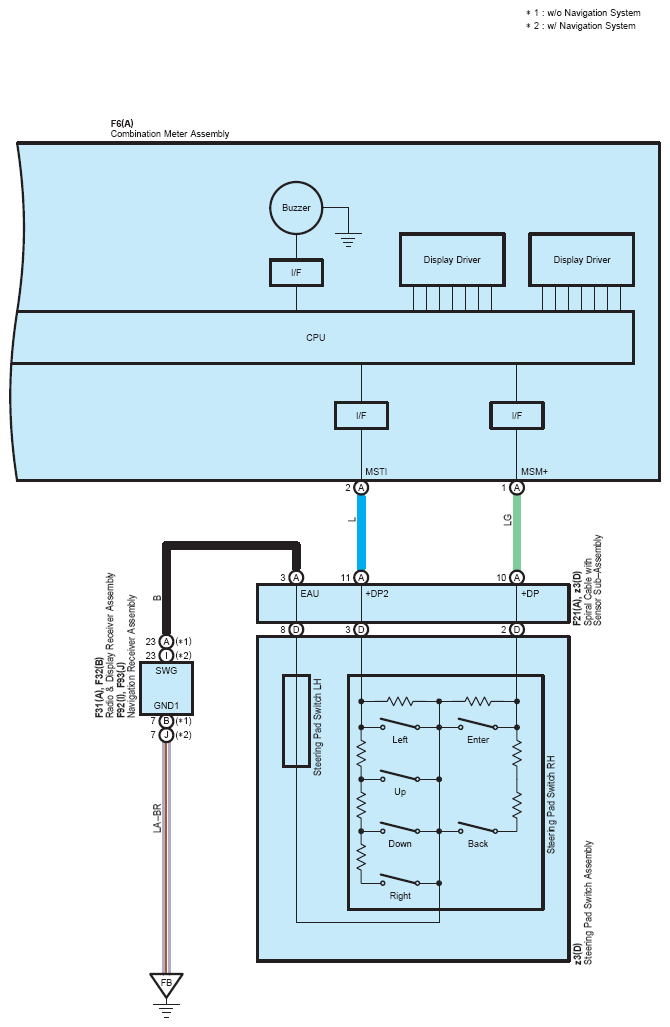

Fig 6: Intelligent Parking Assist (6 Of 6)
G12208329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
