System Diagrams — 2017 Toyota Prius Two Service Manual ~ LEMON Manuals

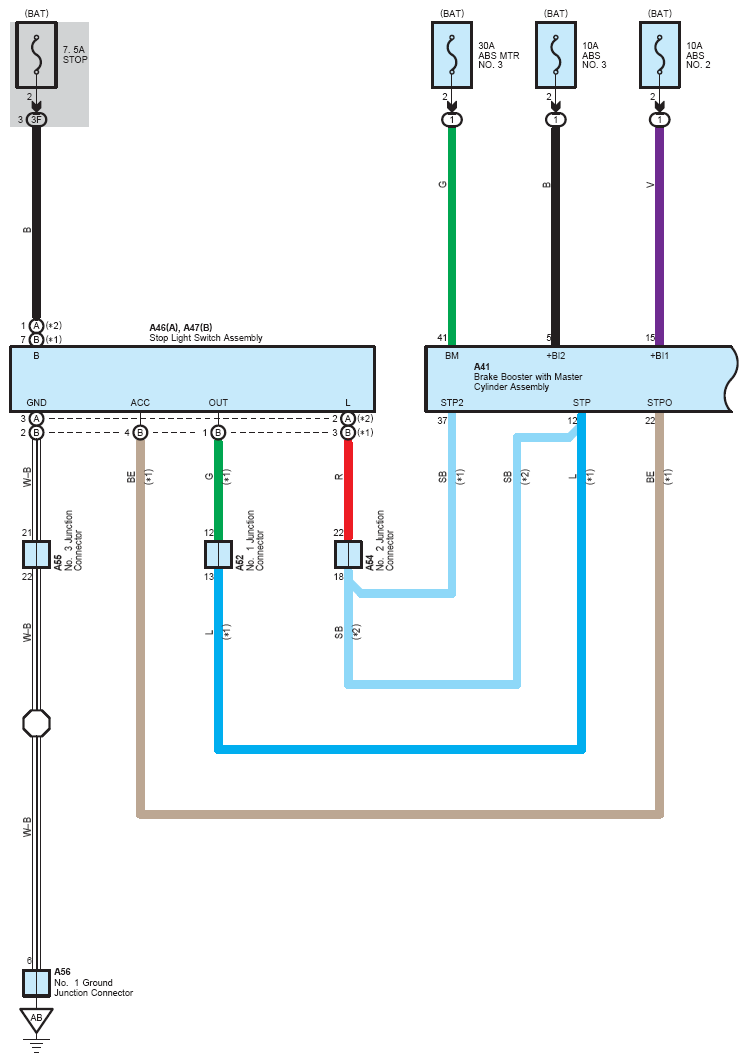

Fig 1: ABS, TRAC, VSC (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

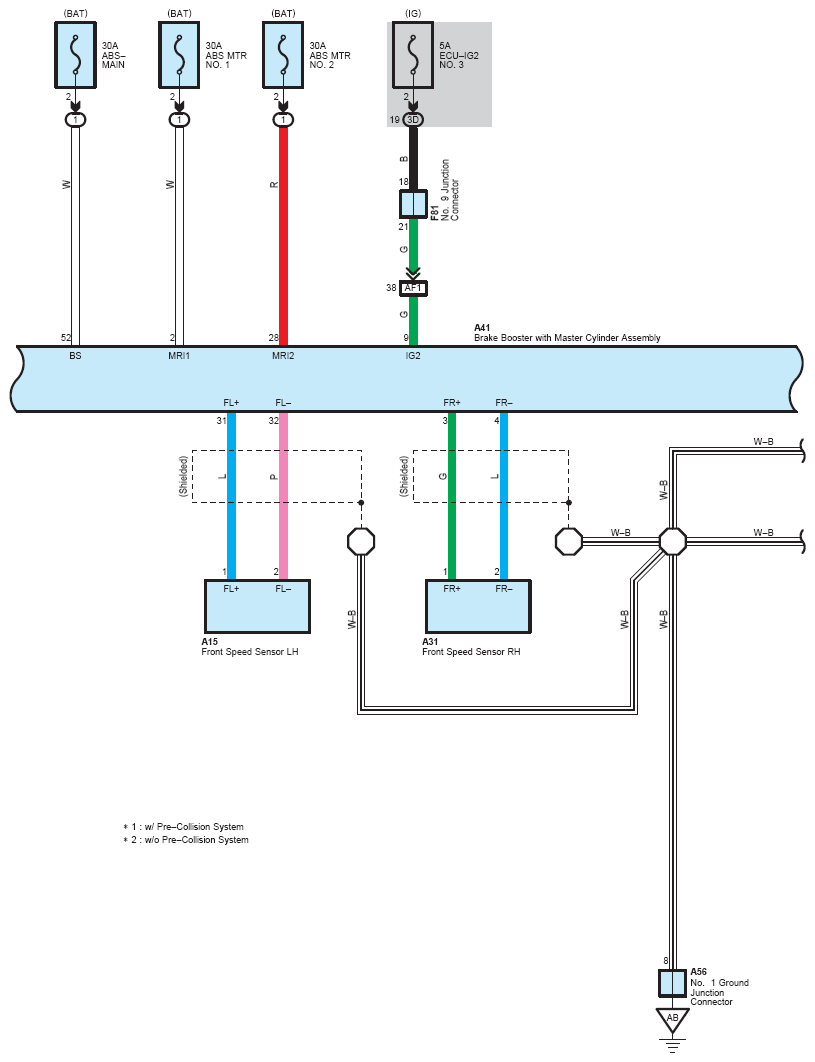

Fig 2: ABS, TRAC, VSC (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

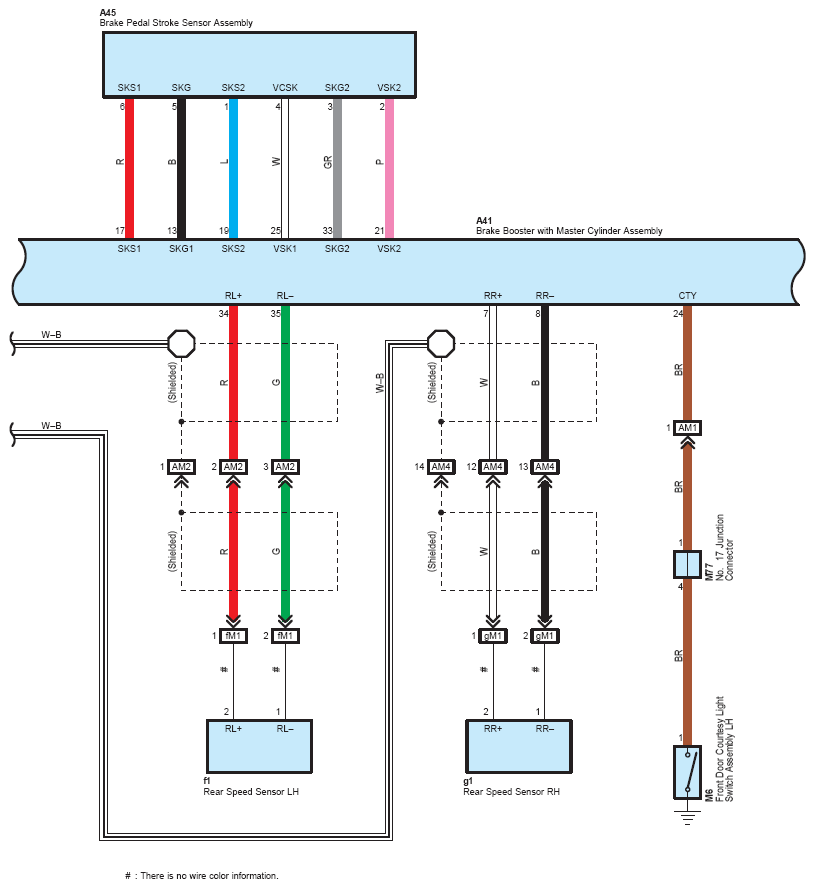

Fig 3: ABS, TRAC, VSC (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

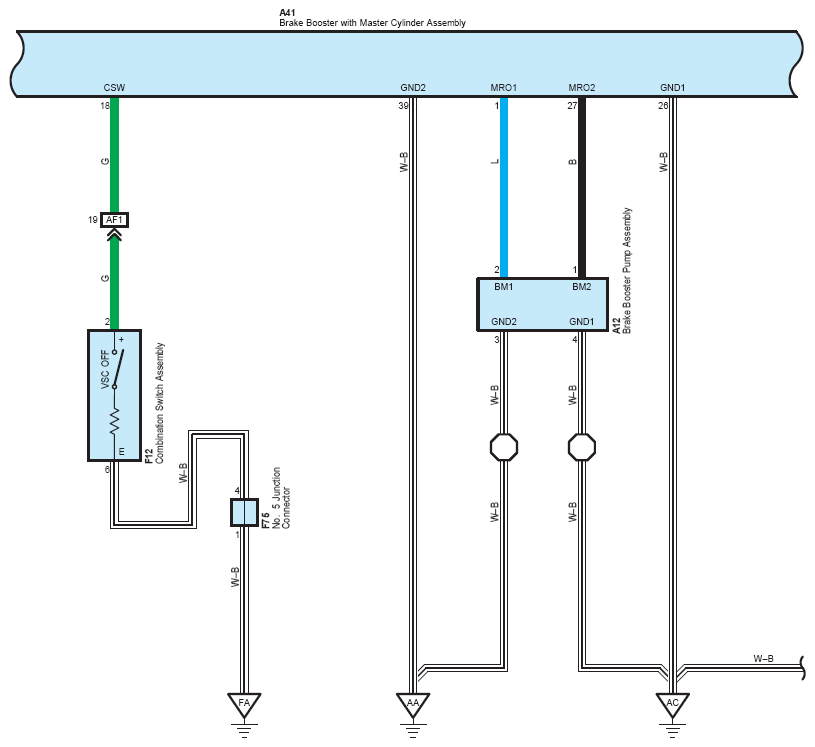

Fig 4: ABS, TRAC, VSC (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: ABS, TRAC, VSC (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

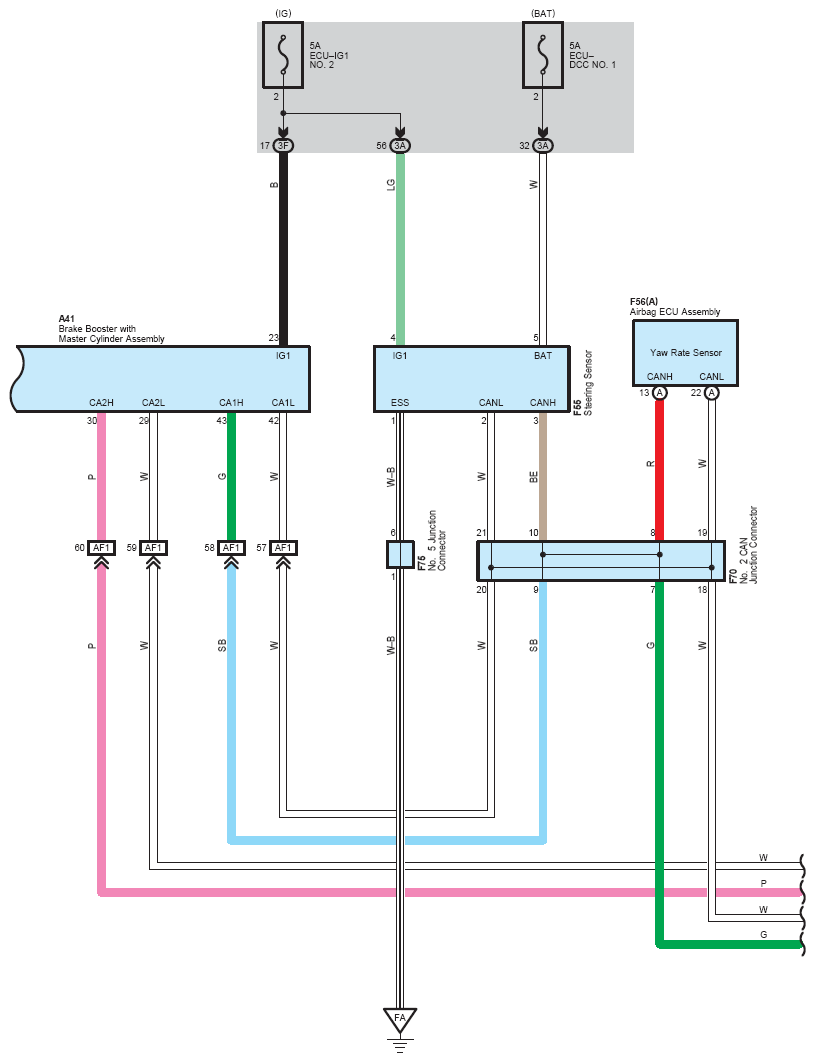

Fig 6: ABS, TRAC, VSC (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

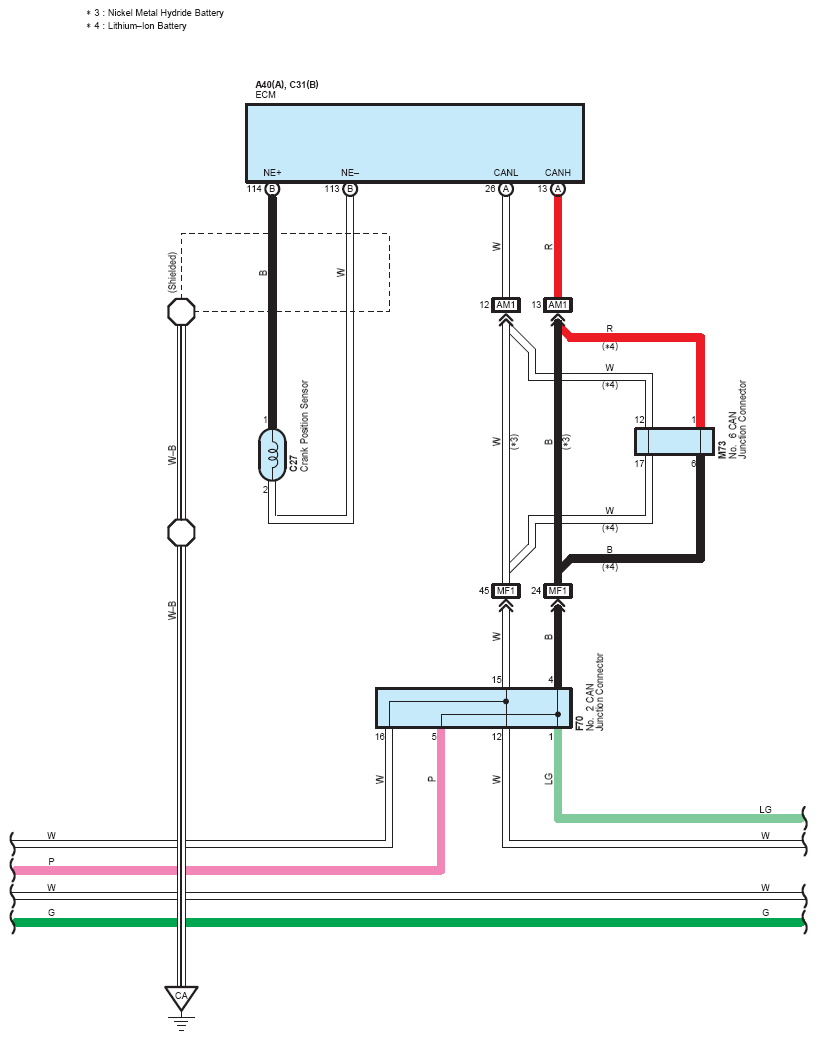

Fig 7: ABS, TRAC, VSC (7 Of 10)

Fig 8: ABS, TRAC, VSC (8 Of 10)

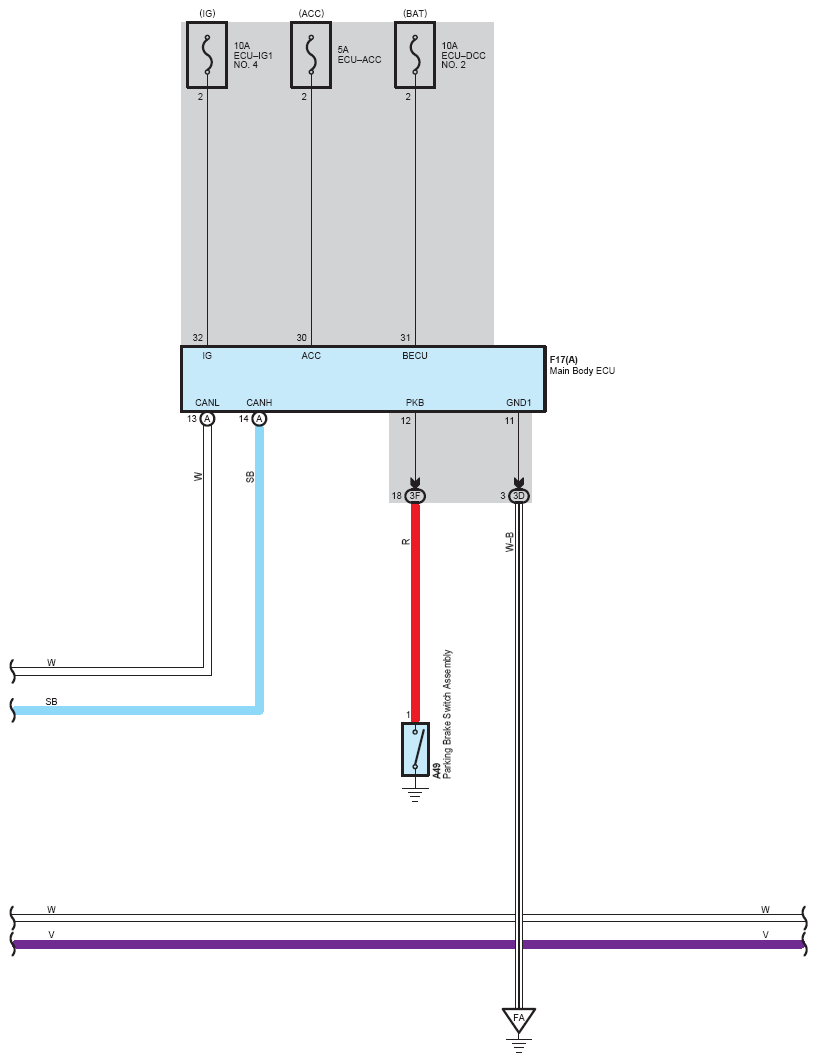

Fig 9: ABS, TRAC, VSC (9 Of 10)

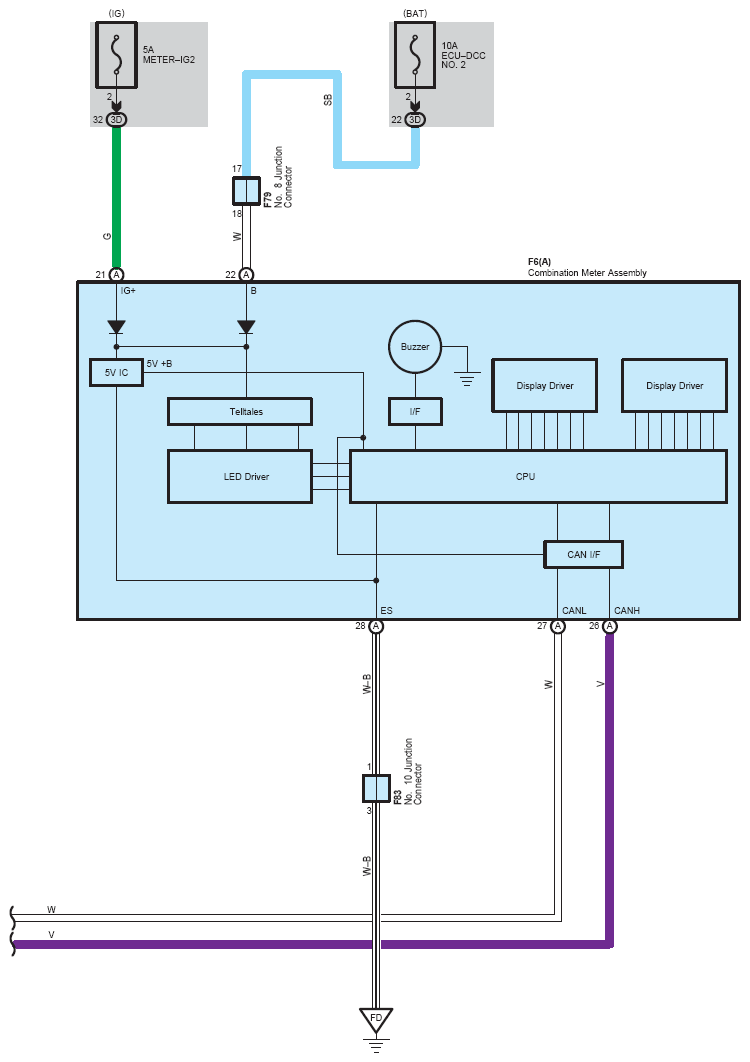

Fig 10: ABS, TRAC, VSC (10 Of 10)
