Position Of Parts In Instrument Panel: Notes

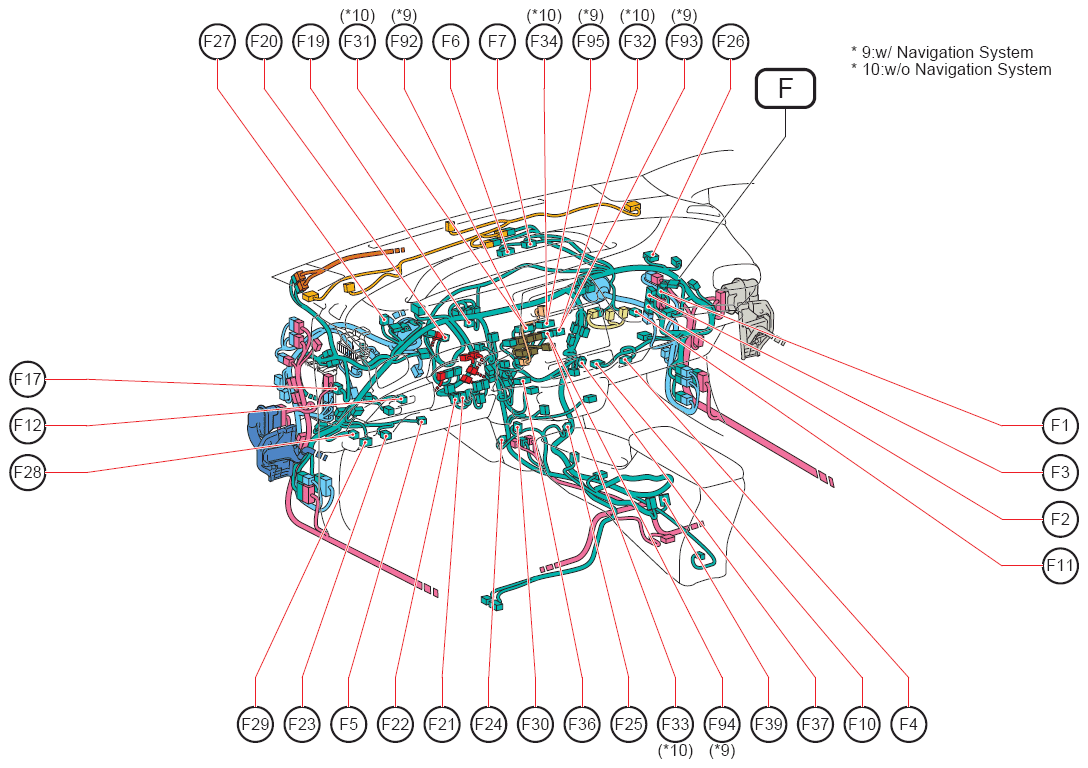

Fig 1: Position Of Parts In Instrument Panel (1 Of 5)
G12207828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

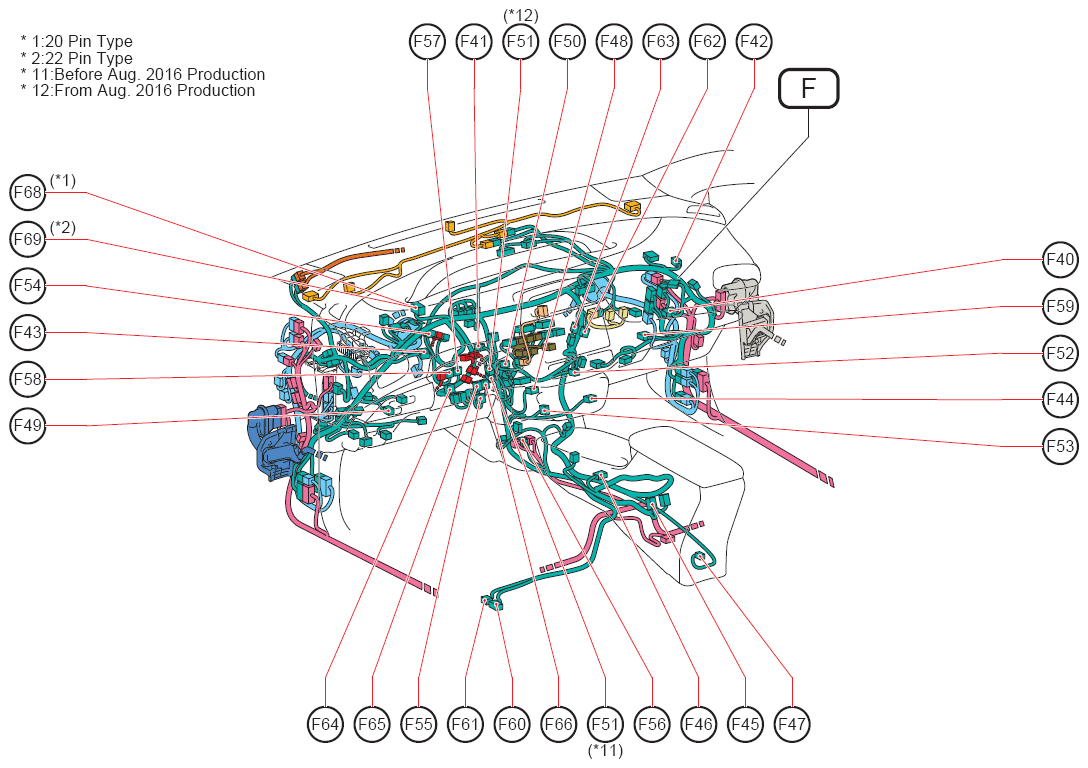

Fig 2: Position Of Parts In Instrument Panel (2 Of 5)
G12207863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

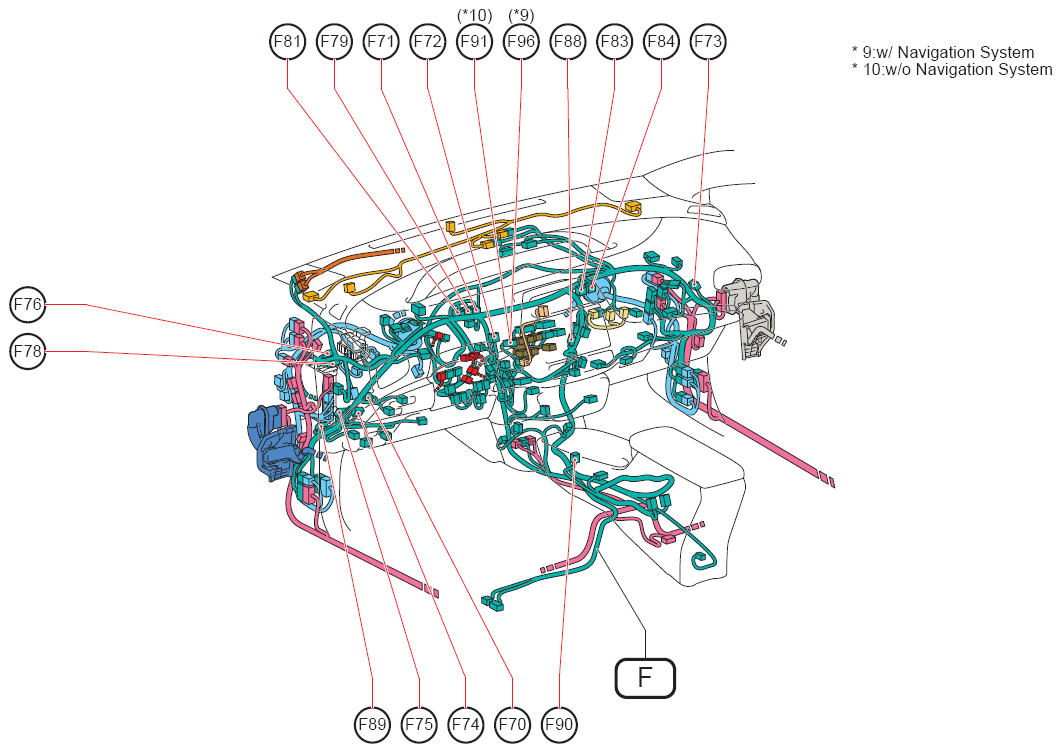

Fig 3: Position Of Parts In Instrument Panel (3 Of 5)
G12207893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

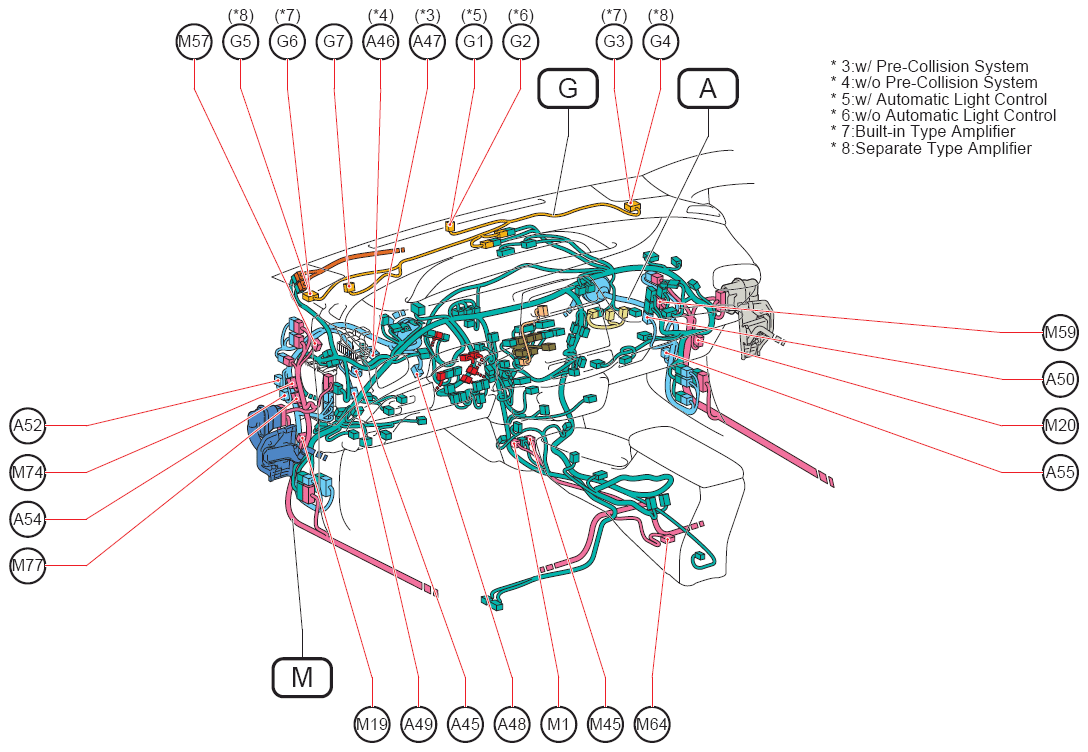

Fig 4: Position Of Parts In Instrument Panel (4 Of 5)
G12207911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

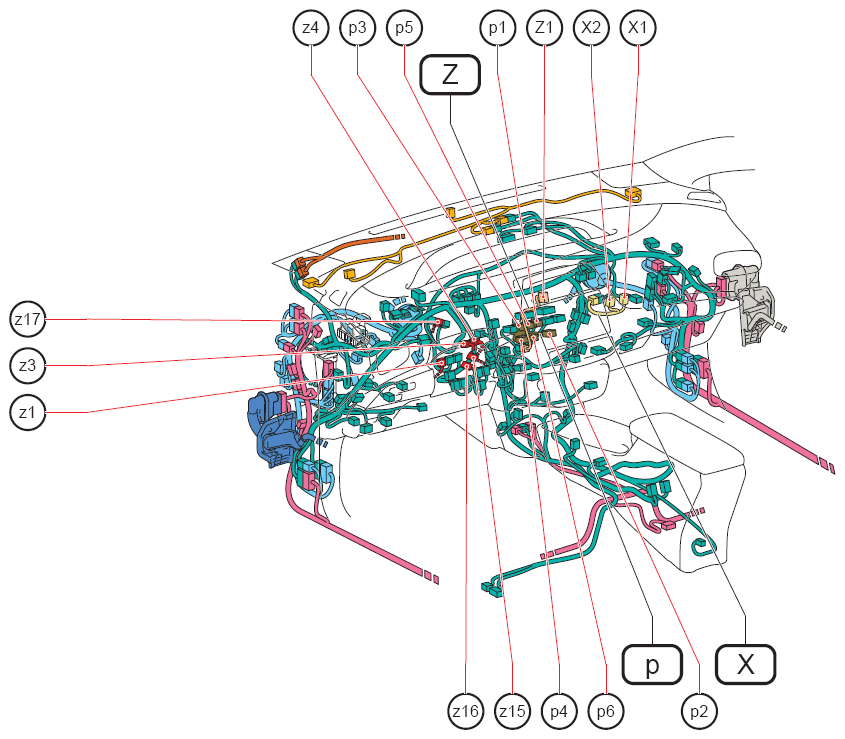

Fig 5: Position Of Parts In Instrument Panel (5 Of 5)
G12207937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
