Prius Two
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Electrical Harness/Wiring Routing
>>
Position Of Parts In Body
>>
Notes
Position Of Parts In Body: Notes

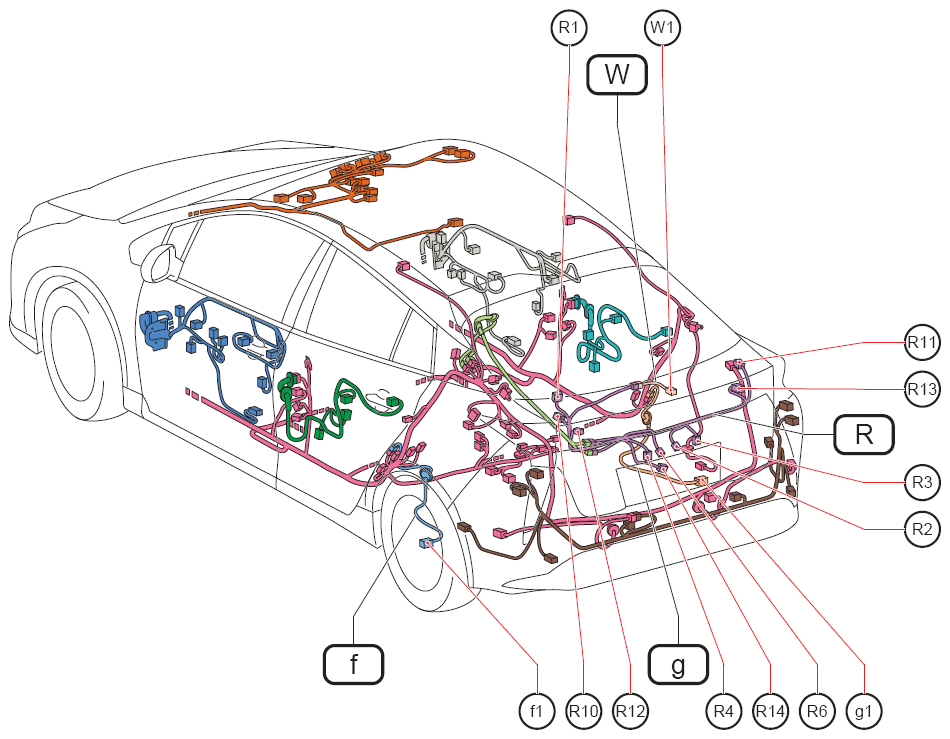

Fig 1: Position Of Parts In Body (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

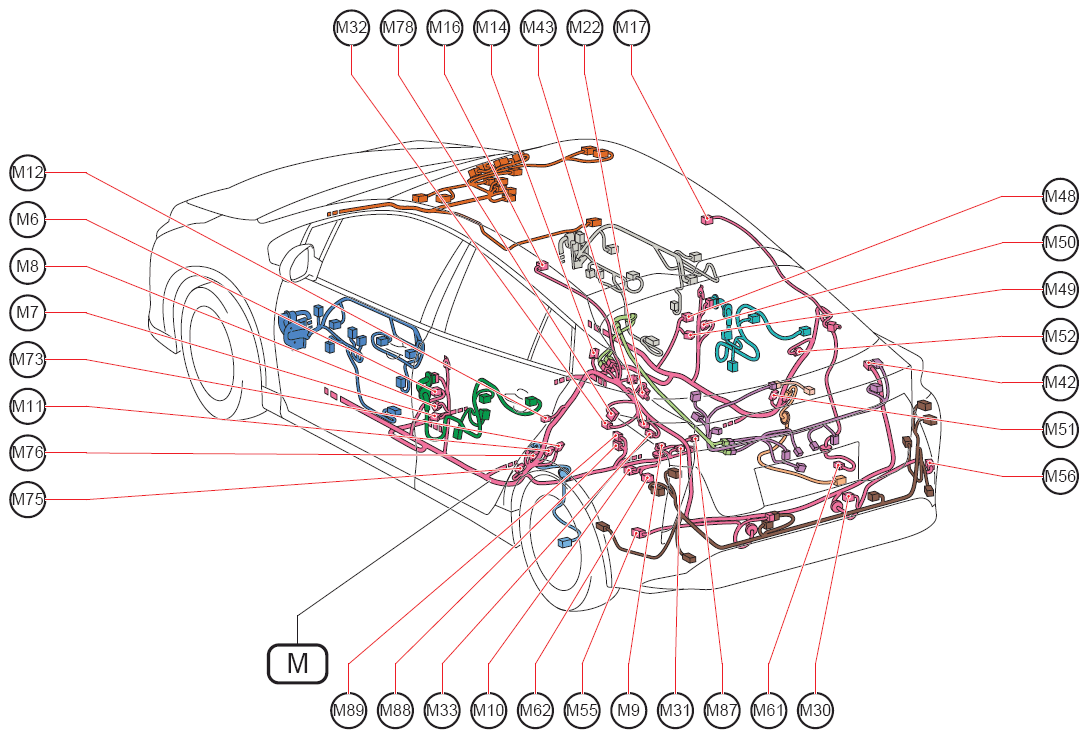

Fig 2: Position Of Parts In Body (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

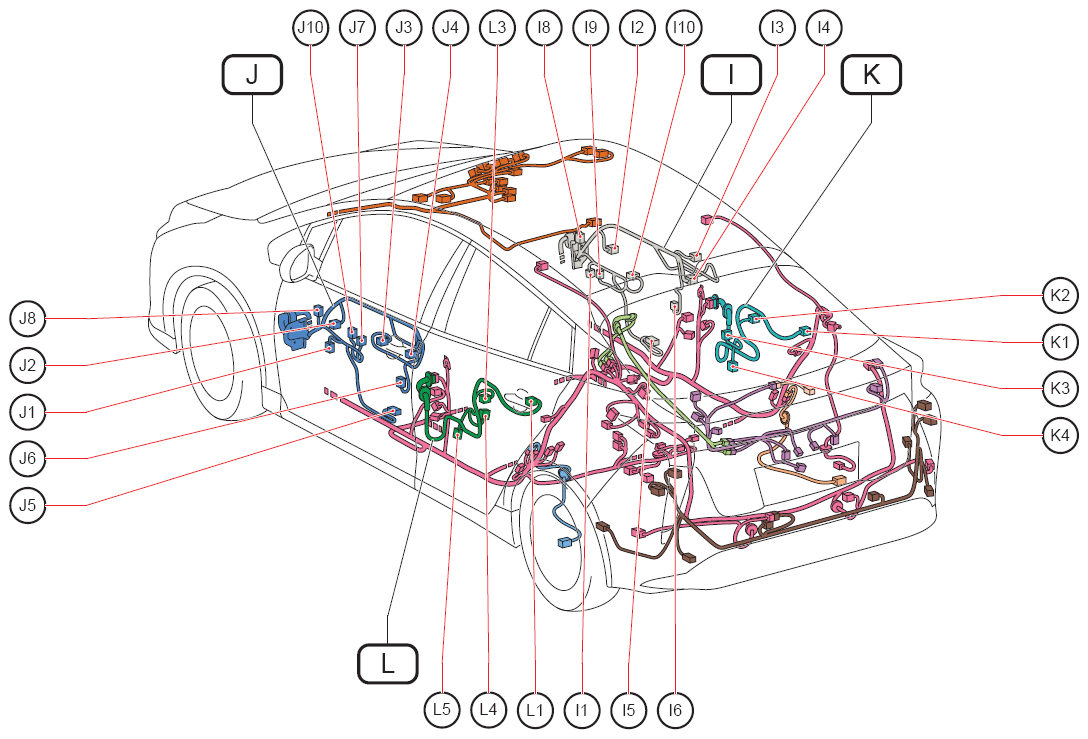

Fig 3: Position Of Parts In Body (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

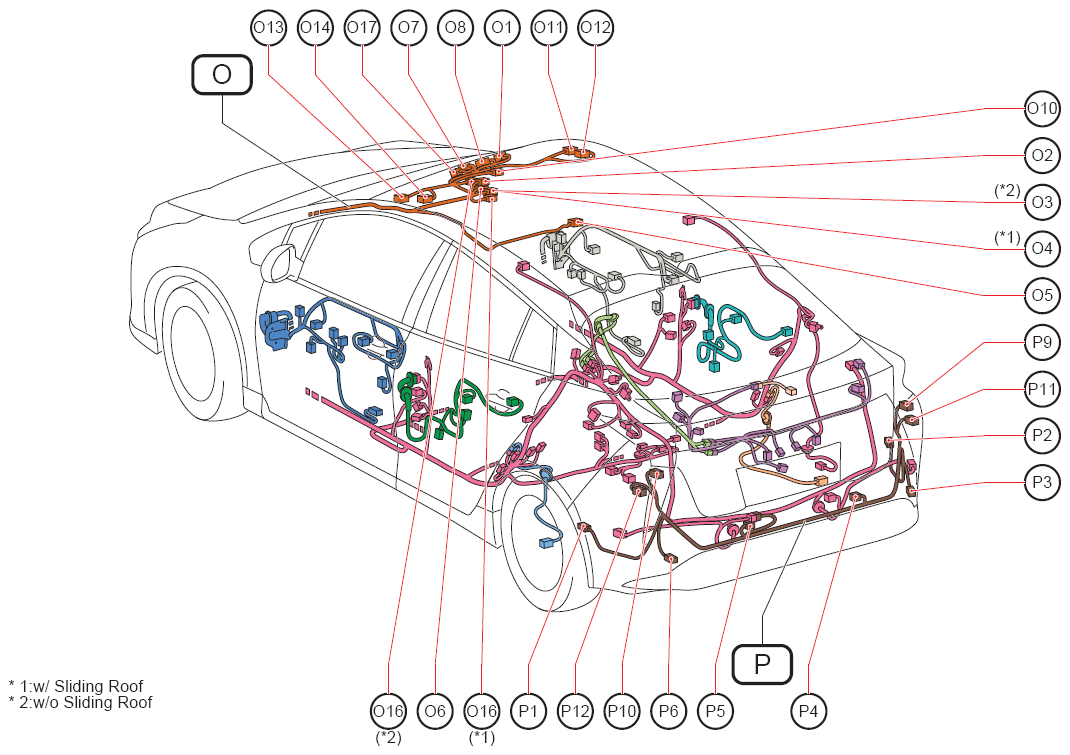

Fig 4: Position Of Parts In Body (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
