Data Signal Circuit between Navigation Receiver Assembly and Extension Module [11/2015 - ]: Wiring Diagram

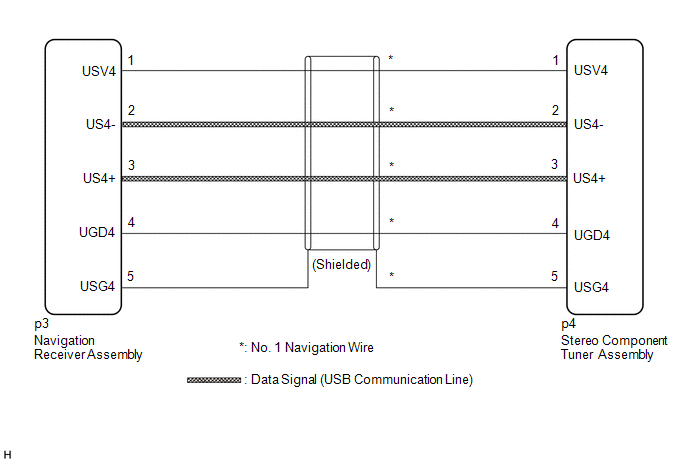

GTY559841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
