Cannot Lock Charging Connector [09/2016 - 05/2019]: Wiring Diagram

Refer to the wiring diagram for PISW circuit.

Refer to WIRING DIAGRAM

Refer to the wiring diagram for Control Pilot Signal Circuit.

Refer to WIRING DIAGRAM

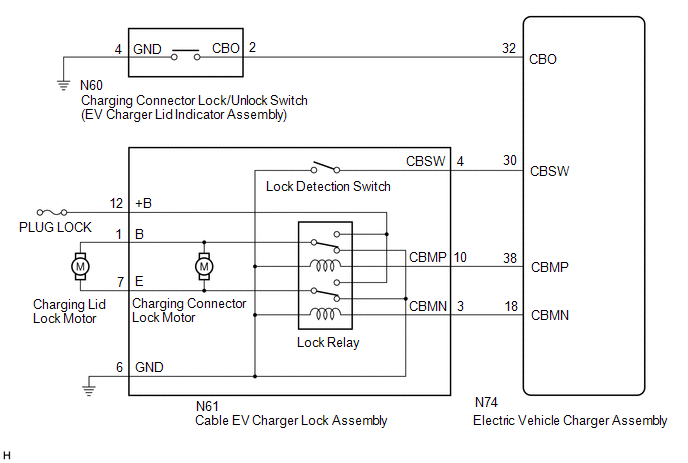

GTY727461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
