Removal [09/2016 - ]: Procedure

  1. REMOVE FRONT WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

    Refer to PROCEDURE - Step 3

  4. REMOVE COWL WATER EXTRACT SHIELD LH

    Refer to PROCEDURE - Step 4

  5. REMOVE COWL WATER EXTRACT SHIELD RH

    Refer to PROCEDURE - Step 5

  6. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13 [09/2016 - 07/2020] , or refer to PROCEDURE - Step 13 [07/2020 - ]

  8. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. REMOVE SPARK PLUG

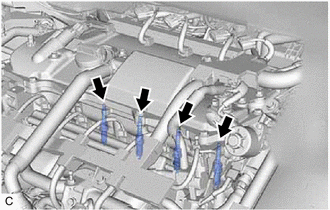

    1. GTY733016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 spark plugs from the cylinder head sub-assembly.

      NOTE:

      If a spark plug has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.
