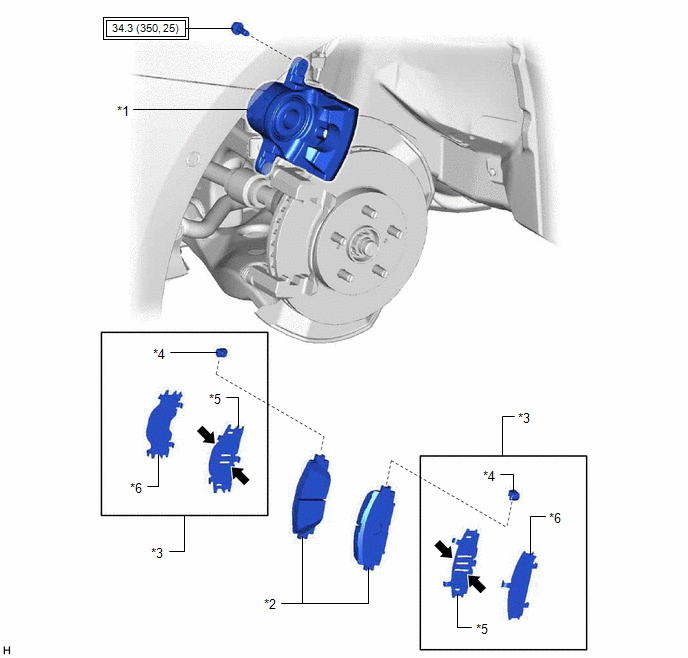

Components [09/2016 - 05/2019]
| Callout | Description | Callout | Description |
| *1 | FRONT DISC BRAKE CYLINDER ASSEMBLY | *2 | FRONT DISC BRAKE PAD |
| *3 | FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT | *4 | FRONT DISC BRAKE PAD WEAR INDICATOR PLATE |
| *5 | FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM | *6 | FRONT NO. 2 DISC BRAKE ANTI-SQUEAL SHIM |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | Disc brake grease |
