Replacement [09/2016 - ]: Procedure

  1. REPLACE BRAKE FLUID (When Using the Techstream)
    1. Separate the center No. 1 cowl top ventilator louver.

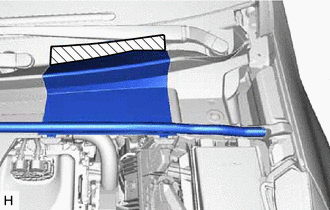

      1. Apply protective tape to the area shown in the illustration.
        GTY735641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Protective Tape

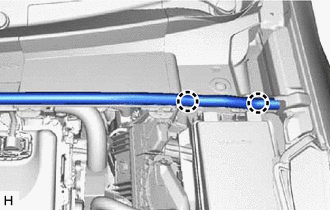

      2. Disengage the 2 claws and separate the hood to cowl top seal from the cowl top ventilator louver.
        GTY557813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

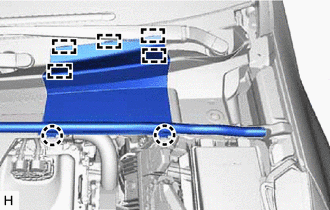

      3. Disengage the 2 claws and 5 guides and separate the center No. 1 cowl top ventilator louver.
        GTY557815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fill the reservoir with brake fluid.

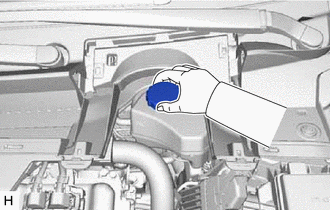

      1. Remove the brake master cylinder reservoir filler cap assembly.
        GTY557814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Add brake fluid to the reservoir until the fluid level is between the MAX and MIN lines on the brake fluid reservoir.

        Brake Fluid

        SAE J1703 or FMVSS No. 116 DOT3

        SAE J1704 or FMVSS No. 116 DOT4

    3. Replace the brake fluid.
      1. Connect the Techstream to the DLC3 and turn the power switch on (IG).
      2. Turn the Techstream on and enter the following menus: Chassis / ABS/VSC/TRAC / Utility / Air Bleeding/AHB-R Utility.

        Chassis > ABS/VSC/TRAC > Utility

        Tester Display
        Air Bleeding/AHB-R Utility
      3. Select "Brake Line Air Bleeding", and replace the brake fluid following the instructions on the Techstream.

        HINT:

        When the brake pedal is released, the piston inside the master cylinder may take longer than the brake pedal to return to its original position. Therefore, make sure to wait for 1 second or more between each depression of the brake pedal.

      4. After replacing brake fluid, tighten each bleeder plug.

        Front Disc Brake Bleeder Plug

        Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

        Rear Disc Brake Bleeder Plug

        Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

    4. Install the brake master cylinder reservoir filler cap assembly.
    5. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [09/2016 - ]

    6. Turn the Techstream off then turn the power switch off.
    7. Inspect for brake fluid leaks.
    8. Install the center No. 1 cowl top ventilator louver.
      1. Engage the 2 claws and 5 guides to install the center No. 1 cowl top ventilator louver.
      2. Engage the 2 claws to install the hood to cowl top seal to the cowl top ventilator louver.
      3. Remove the protective tape.
  2. REPLACE BRAKE FLUID (When Not Using the Techstream)
    NOTE:
    • Performing the following procedure enters ECB (Electronically Controlled Brake system) Invalid Mode without using the Techstream.
    • ECB (Electronically Controlled Brake system) Invalid Mode allows the brake fluid to be replaced without using the Techstream.
    • The brake warning light blinks (yellow) to indicate that ECB (Electronically Controlled Brake system) Invalid Mode is selected.
    • Be sure to confirm that the brake warning light is blinking (yellow) throughout the brake fluid replacement procedure.
    • If any of the following conditions are met, ECB (Electronically Controlled Brake system) Invalid Mode is canceled and the brake warning light (yellow) turns off. Do not allow ECB (Electronically Controlled Brake system) Invalid Mode to be canceled while replacing brake fluid or DTCs may be stored.
      A shift state other than park (P) is selected.
      The power switch is turned on (READY).
      The power switch is turned off.
      The parking brake is released.
      The vehicle speed is more than 0 km/h (0 mph).
    • Do not rotate any brake disc while ECB (Electronically Controlled Brake system) Invalid Mode is selected.
    • Although the brake warning light will blink (yellow) and a buzzer will sound while performing fluid replacement, this is not a malfunction.
    1. Remove all 4 wheels.

      See step  1 See step  1

    2. Enter ECB (Electronically Controlled Brake system) Invalid Mode.
      1. Perform the procedure listed below within 1 minute.
        1. Turn the power switch on (IG) with park (P) selected and the parking brake applied.
        2. Select neutral (N) and then depress the brake pedal more than 8 times within 5 seconds.
        3. Push the P position switch and then depress the brake pedal more than 8 times within 5 seconds.
        4. Select neutral (N) and then depress the brake pedal more than 8 times within 5 seconds.
        5. Push the P position switch.
      2. Check that the brake warning light is blinking (yellow).
        GTY454345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Brake Warning Light (Yellow)
    3. Separate the center No. 1 cowl top ventilator louver.
      1. Apply protective tape to the area shown in the illustration.
        GTY735641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Protective Tape
      2. Disengage the 2 claws and separate the hood to cowl top seal from the cowl top ventilator louver.
        GTY557813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the 2 claws and 5 guides and separate the center No. 1 cowl top ventilator louver.
        GTY557815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Fill the reservoir with brake fluid.
      1. Remove the brake master cylinder reservoir filler cap assembly.
        GTY557814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Add brake fluid to the reservoir until the fluid level is between the MAX and MIN lines on the brake fluid reservoir.

        Brake Fluid

        SAE J1703 or FMVSS No. 116 DOT3

        SAE J1704 or FMVSS No. 116 DOT4

    5. Replace the brake fluid.

      HINT:

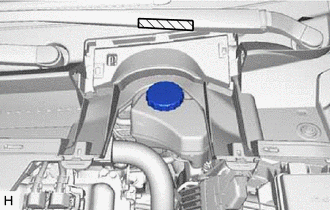

      • When replacing the brake fluid using vacuum, the brake fluid bottle can be inverted and placed on the reservoir filler opening.
      • Apply protective tape to the area shown in the illustration when placing the brake fluid bottle.
        GTY729689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Protective Tape
      1. Connect a vinyl tube to the bleeder plug of the front disc brake cylinder assembly RH.
      2. Depress the brake pedal several times with approximately 1 second between each depression, and then loosen the bleeder plug with the pedal depressed.*1
      3. When brake fluid stops coming out, tighten the bleeder plug and then release the brake pedal for 1 second or more.*2

        HINT:

        When the brake pedal is released, the piston inside the master cylinder may take longer than the brake pedal to return to its original position. Therefore, make sure to wait for 1 second or more between each depression of the brake pedal.

      4. Repeat steps *1 and *2 until new brake fluid comes out.
      5. Tighten the bleeder plug completely.

        Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

      6. Replace brake fluid from the front disc brake cylinder assembly LH using the same procedure as for the RH side.
      7. Connect a vinyl tube to the bleeder plug of the rear disc brake cylinder assembly LH.
      8. Depress the brake pedal several times with approximately 1 second between each depression, and then loosen the bleeder plug with the pedal depressed.*3
      9. When brake fluid stops coming out, tighten the bleeder plug and then release the brake pedal for 1 second or more.*4

        HINT:

        When the brake pedal is released, the piston inside the master cylinder may take longer than the brake pedal to return to its original position. Therefore, make sure to wait for 1 second or more between each depression of the brake pedal.

      10. Repeat steps *3 and *4 until new brake fluid comes out.
      11. Tighten the bleeder plug completely.

        Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

      12. Replace brake fluid from the rear disc brake cylinder assembly RH using the same procedure as for the LH side.
      13. Turn the power switch off.
    6. Inspect for brake fluid leaks.
    7. Adjust the brake fluid level in the reservoir.

      Refer to PROCEDURE - Step 2

    8. Install the brake master cylinder reservoir filler cap assembly.
    9. Install the 4 wheels.

      See step  1 See step  1

    10. Install the center No. 1 cowl top ventilator louver.
      1. Engage the 2 claws and 5 guides to install the center No. 1 cowl top ventilator louver.
      2. Engage the 2 claws to install the hood to cowl top seal to the cowl top ventilator louver.
      3. Remove the protective tape.
