Components [09/2016 - 05/2019]

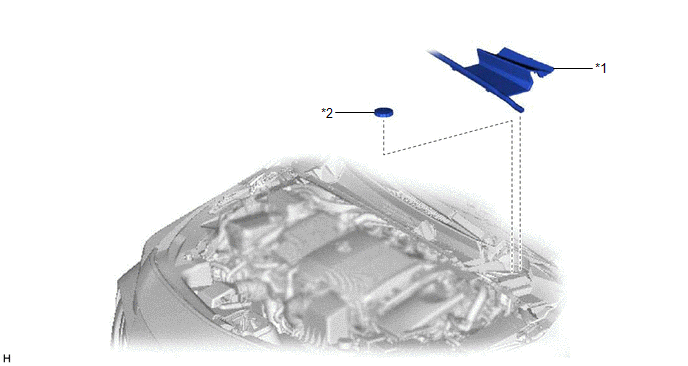

Fig 1: Brake Fluid Replacement Components (1 Of 2)
GTY730457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER NO. 1 COWL TOP VENTILATOR LOUVER *2 BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

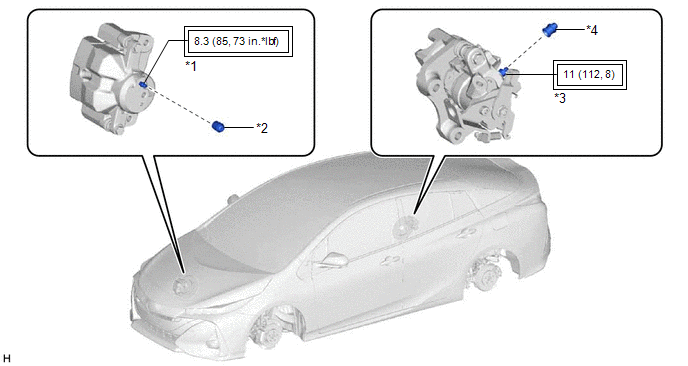

Fig 2: Brake Fluid Replacement Components With Torque Specifications (2 Of 2)
GTY692199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DISC BRAKE BLEEDER PLUG *2 FRONT DISC BRAKE BLEEDER PLUG CAP
*3 REAR DISC BRAKE BLEEDER PLUG *4 REAR DISC BRAKE BLEEDER PLUG CAP
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -
