Components [09/2016 - ]

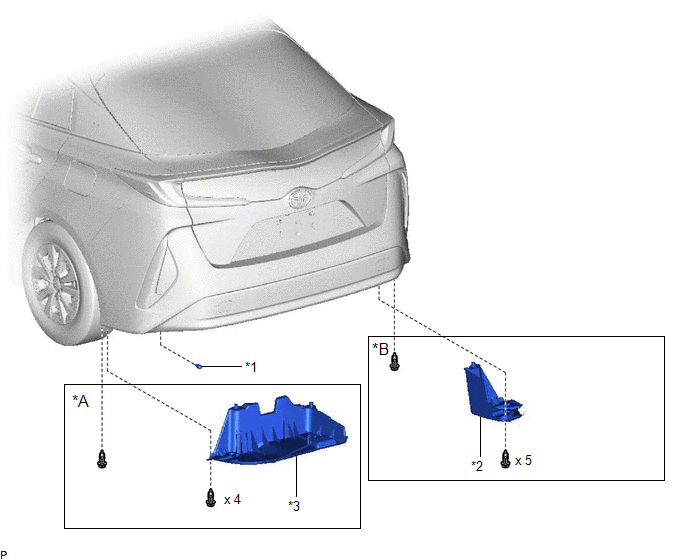

Fig 1: Back-Up Light Bulb Replacement Components
GTY729588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for LH Side *B for RH Side
*1 BACK-UP LIGHT BULB *2 NO. 1 FLOOR UNDER COVER
*3 NO. 2 FLOOR UNDER COVER - -
