Engine Control System - System & Circuit Tests
>>
SFI System
>>
VC Output Circuit [09/2016 - ]
>>
Wiring Diagram

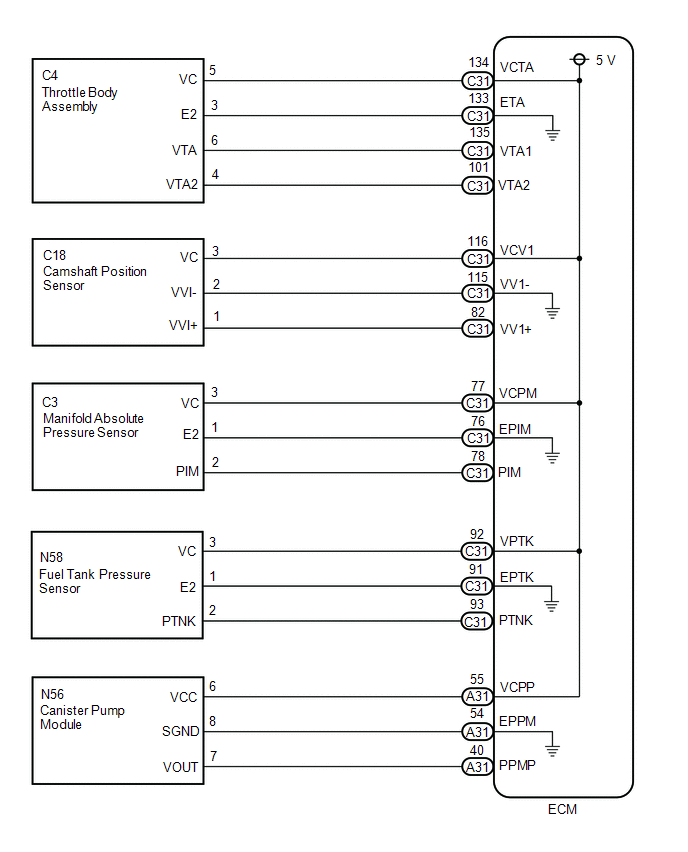

VC Output Circuit [09/2016 - ]: Wiring Diagram
For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to
WIRING DIAGRAM
Refer to
WIRING DIAGRAM
VC Output Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
