VC Output Circuit [09/2016 - ]: Description

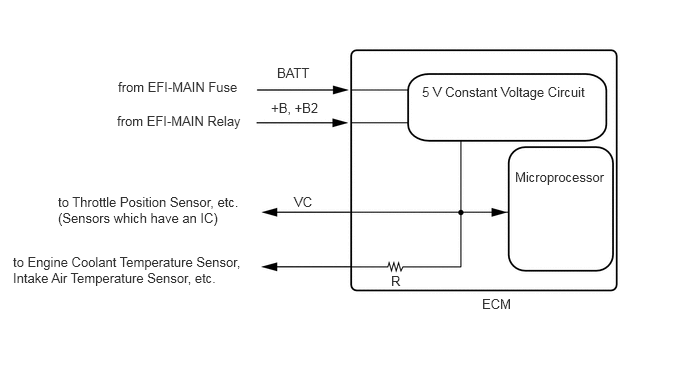

The ECM constantly generates 5 V power source voltage from the auxiliary battery voltage supplied to the +B, +B2 (BATT) terminal of the ECM to operate the microprocessor. The ECM also provides this power source voltage to the sensors through the VC output circuit.
When the VC circuit has a short circuit, the microprocessor in the ECM and sensors that are supplied power through the VC circuit are deactivated because power is not supplied from the VC circuit. When the system is in this condition, it will not start.
