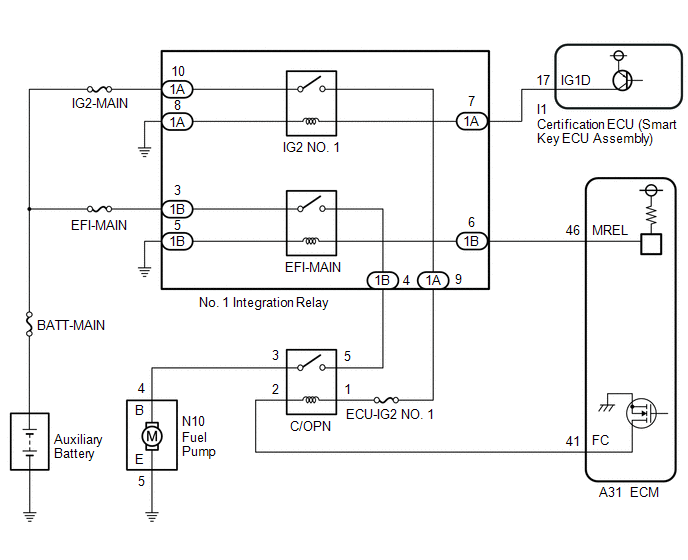

Fuel Pump Control Circuit [09/2016 - 07/2020]: Wiring Diagram

GTY736578

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
