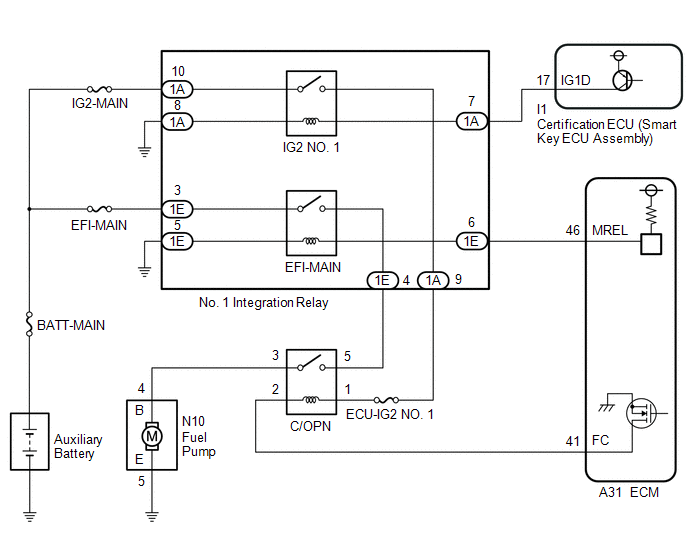

Fuel Pump Control Circuit [07/2020 - ]: Wiring Diagram

GTY982598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
